MT95

Mobile Terminal

MT95

Mobile Terminal

MT95

Mobile Terminal

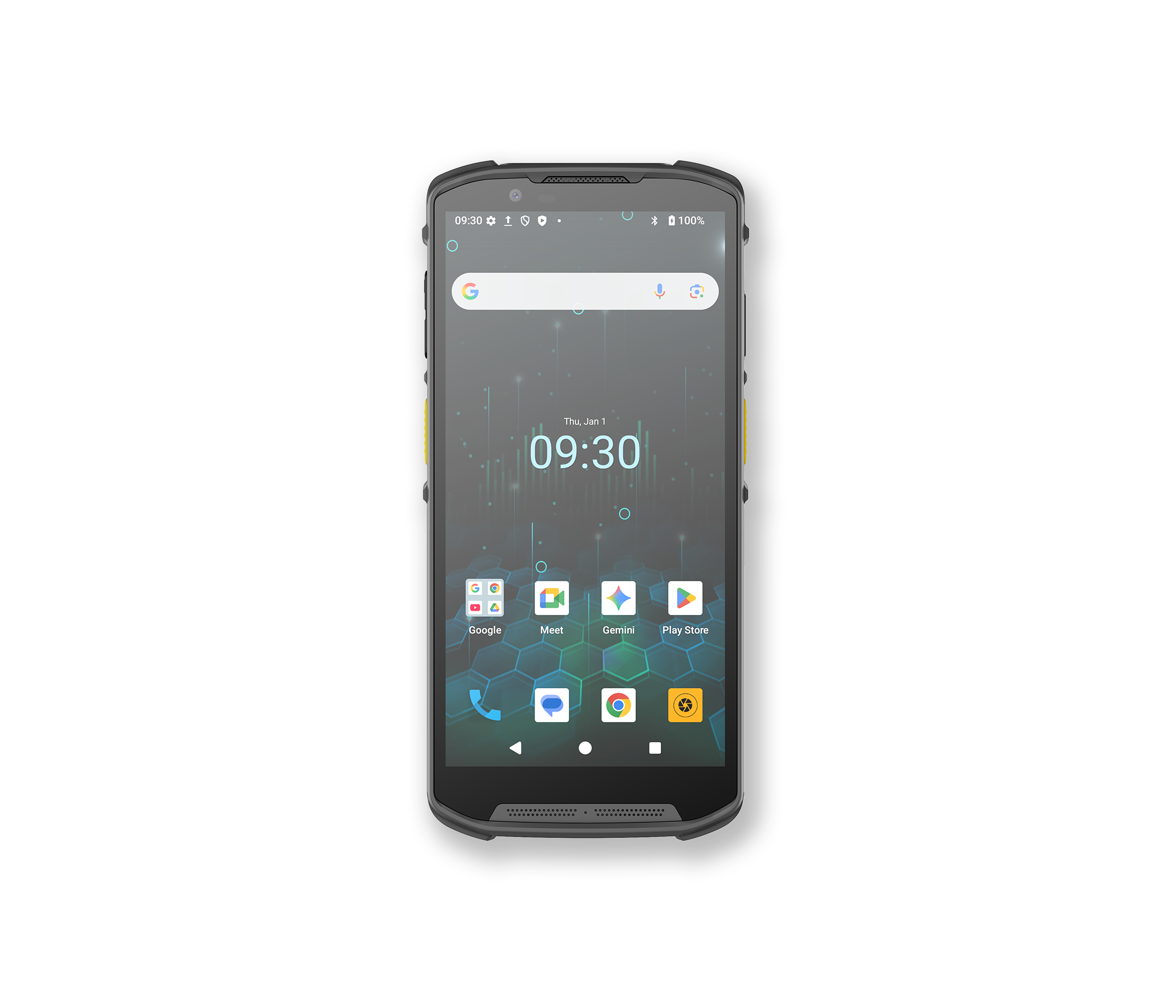

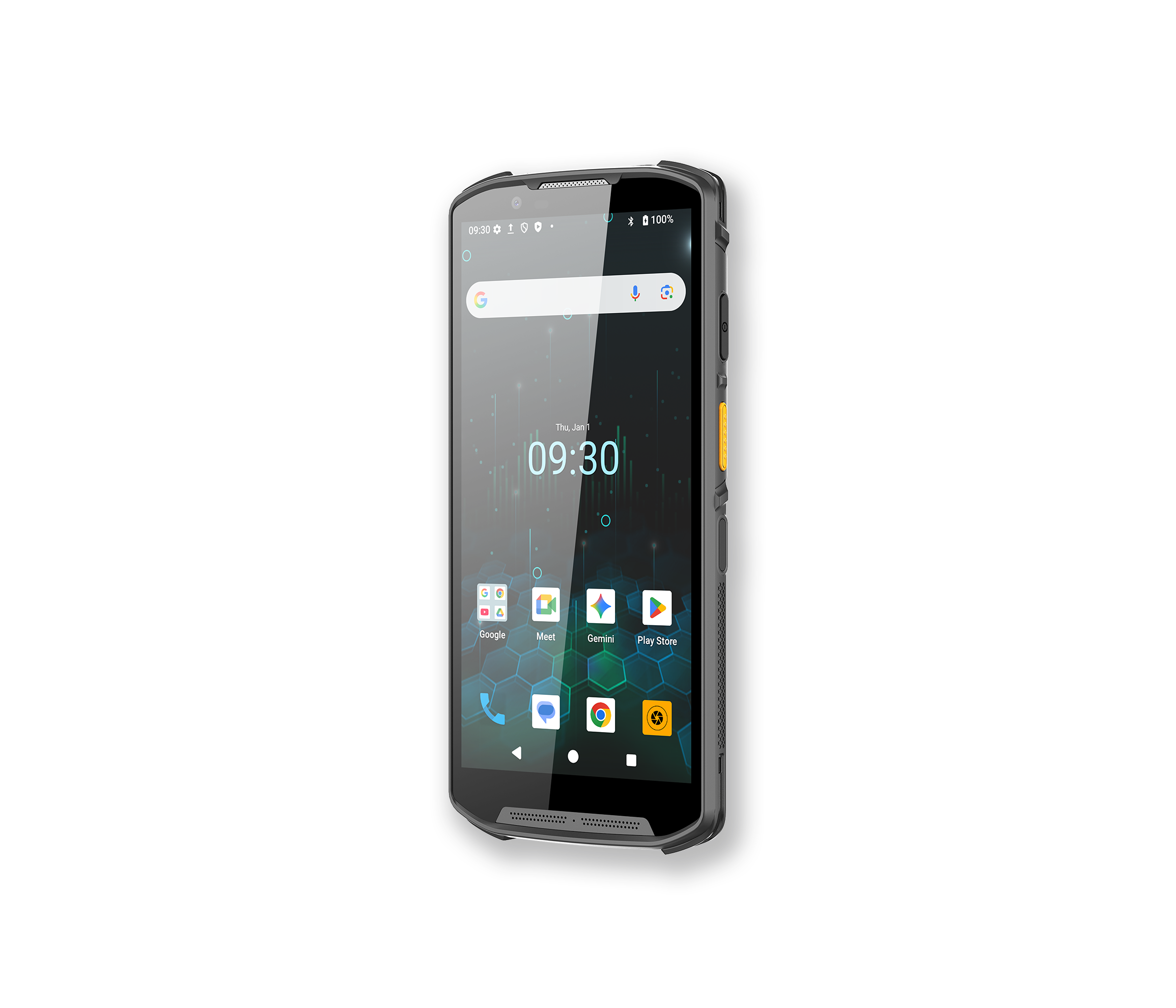

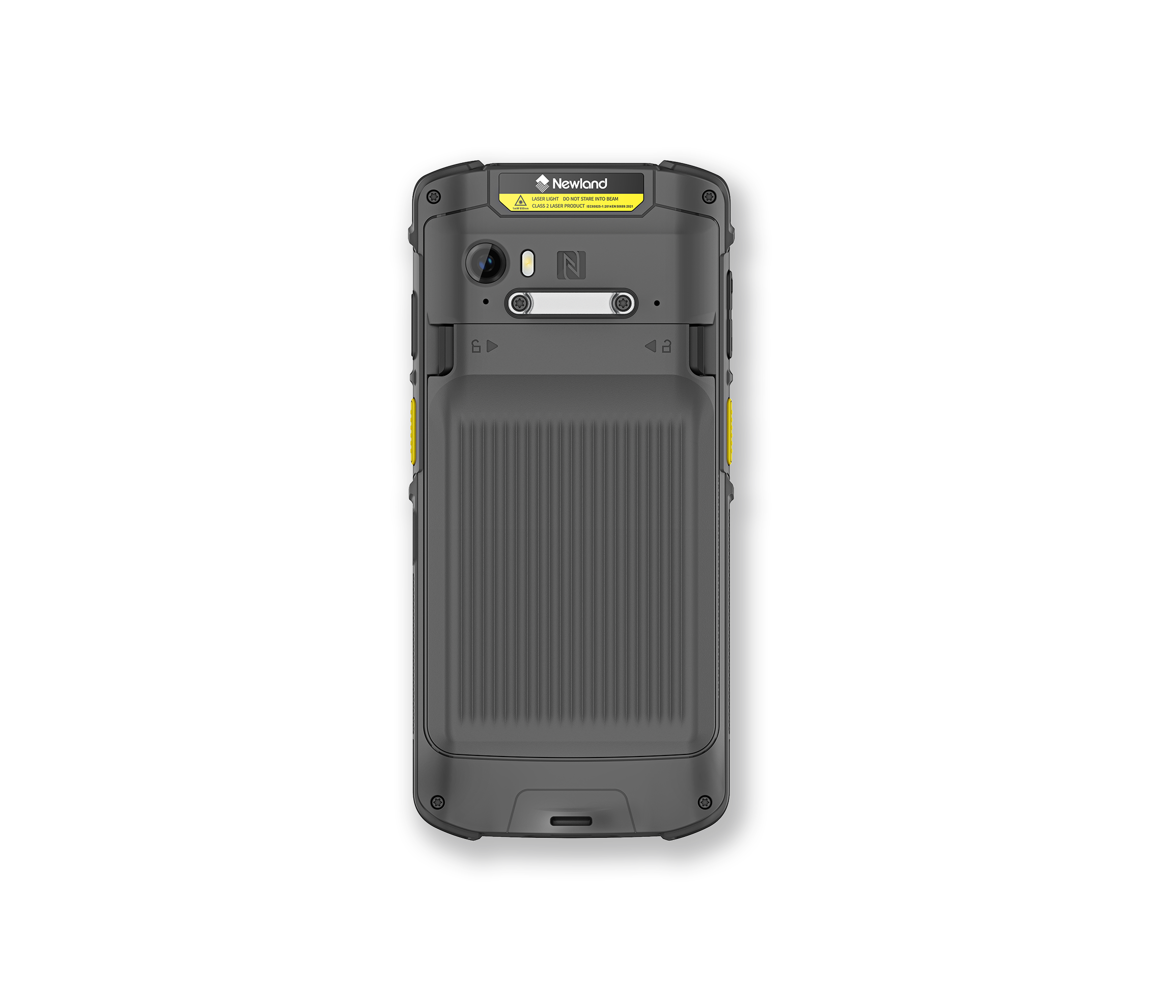

MT95 Mobile Terminal

Product specifications

Dimension
155×78×20mm, 165x78.5x15.5mm
Weight
281g
Sealing
IP67
Network Connection
WLAN, WWAN, WPAN
Operating System
Android
Screen Size
6.1"

Features

2D Barcode
1D Barcode
Android
1.5m
GPS
4G
IP67

Vertical

Retail
Warehouse
Healthcare
Transportation & Logistic
Public Sector

Features
Specifications
Downloads

Features

6" Full Screen Display Experience

6.1" HD display screen, support multi-point capacitive touch screen, design with Gorilla Glass to provide better drop performance and higher resistance to scratch.

Large Capacity Battery and Super-Fast Charging

The NLS-MT95 is equipped with a 6000mAh battery, supplemented by a low power design, which significantly extends the usage time. Besides, it supports fast charging with a Type-C port, and the charging power is up to 15W.

Powerful Performance

The NLS-MT95 comes with Android 11 operating system and is powered by a 2.1GHz octa-core processor. It supports ViLte and 4G dual SIM dual standby for full Netcom to meet various application needs.

Rugged Durability

The NLS-MT95’s rugged housing is sealed to IP67 standards for protection against dust and water and withstands 1.5m drops to concrete.

Specifications

Performance	Processor	2.1GHz, octa-core 64-bit processor
	Operating System	Android 11
	Memory	6GB RAM, 64GB ROM
	Symbologies	2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode. 1D: Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.
	Depth of Field(Depend on Barcode and Environment)	EAN-13:70mm-600mm(13mil) Code39:120mm-280mm(5mil) PDF17:110mm-230mm(6.7mil) Data Matrix:110mm-260mm(10mil) QR Code:55mm-400mm(15mil)

Physical	Dimensions	165(L) × 78.5(W) × 15.5(H) mm
	Weight	281g (including battery)
	Display	6.1” (720×1560), Gorilla Glass screen
	Keypad	5 keys(side keys included)
	Notification	Vibration, speaker and multi-color LEDs
	Battery	3.85V, 6000mAh
	Camera	Front camera: 8 megapixels, fixed focus Rear camera: 13 megapixels, auto focus, with LED flashlight
	GPS	GPS (AGPS), GLONASS, Beidou, Galileo
	Expansion	MicroSD (max. 256GB) slot
	AC Adapter	15W Fast Charging Supported
	Card Slots	Nano+Nano/Nano+TF
	Interface	Type-C 2.0 OTG, Type-C earphone
	Sensors	Light & Proximity sensor, accelerometer sensor, magnetic sensor, gyroscope sensor

Environmental	Operating Temperature	-20°C to 50°C (-4°F to 122°F)
	Storage Temperature	-30℃ to 60℃ (-22°F to 140°F)
	Humidity	5%~95% (non-condensing)
	Static Discharge	±15 kV (air discharge), ±8 kV (direct discharge)
	Drop	1.5m drops to concrete (for six sides, one drop per side)
	Sealing	IP67

NFC

13.56MHz RFID

ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags

Wireless	WLAN RADIO	Built-in 802.11 a/b/g/n/ac, support 2.4G and 5G dual frequency
	WWAN RADIO(For 4G Version)	2G: GSM (B2, B3, B5, B8) 3G: WCDMA (B1, B2, B5, B8); TD-SCDMA (B34, B39) ; CDMA: 1X EVDO (BC0) 4G: TDD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)
	WPAN RADIO	Bluetooth 4.2

Accessory

AC adapter, cable

Performance

Processor
2.1GHz, octa-core 64-bit processor

Operating System
Android 11

Memory
6GB RAM, 64GB ROM

Symbologies
2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode. 1D: Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.

Depth of Field(Depend on Barcode and Environment)
EAN-13:70mm-600mm(13mil) Code39:120mm-280mm(5mil) PDF17:110mm-230mm(6.7mil) Data Matrix:110mm-260mm(10mil) QR Code:55mm-400mm(15mil)

Physical

Dimensions
165(L) × 78.5(W) × 15.5(H) mm

Weight
281g (including battery)

Display
6.1” (720×1560), Gorilla Glass screen

Keypad
5 keys(side keys included)

Notification
Vibration, speaker and multi-color LEDs

Battery
3.85V, 6000mAh

Camera
Front camera: 8 megapixels, fixed focus Rear camera: 13 megapixels, auto focus, with LED flashlight

GPS
GPS (AGPS), GLONASS, Beidou, Galileo

Expansion
MicroSD (max. 256GB) slot

AC Adapter
15W Fast Charging Supported

Card Slots
Nano+Nano/Nano+TF

Interface
Type-C 2.0 OTG, Type-C earphone

Sensors
Light & Proximity sensor, accelerometer sensor, magnetic sensor, gyroscope sensor

Environmental

Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Storage Temperature
-30℃ to 60℃ (-22°F to 140°F)

Humidity
5%~95% (non-condensing)

Static Discharge
±15 kV (air discharge), ±8 kV (direct discharge)

Drop
1.5m drops to concrete (for six sides, one drop per side)

Sealing
IP67

NFC

13.56MHz RFID
ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags

Wireless

WLAN RADIO
Built-in 802.11 a/b/g/n/ac, support 2.4G and 5G dual frequency

WWAN RADIO(For 4G Version)
2G: GSM (B2, B3, B5, B8) 3G: WCDMA (B1, B2, B5, B8); TD-SCDMA (B34, B39) ; CDMA: 1X EVDO (BC0) 4G: TDD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)

WPAN RADIO
Bluetooth 4.2

Accessory

AC adapter, cable

Downloads

Specification Sheets

NLS-MT95_4G_11_Datasheet_APAC_en

NLS-MT95_4G_11_Datasheet_APAC_en

Language: English

Download

Manual & Technical Literature

Newland_Android_PDA_API_Handbook

Newland_Android_PDA_API_Handbook

Language: English

Download
Newland_Android_PDA_Symbologies_Configuration_Handbook

Newland_Android_PDA_Symbologies_Configuration_Handbook

Language: English

Download
NLS-MT95_11_User_Guide_en

NLS-MT95_11_User_Guide_en

Language: English

Download
