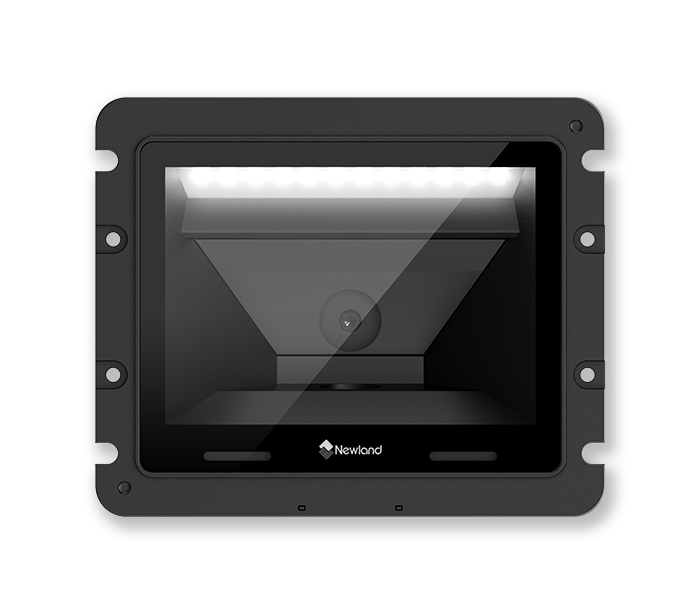

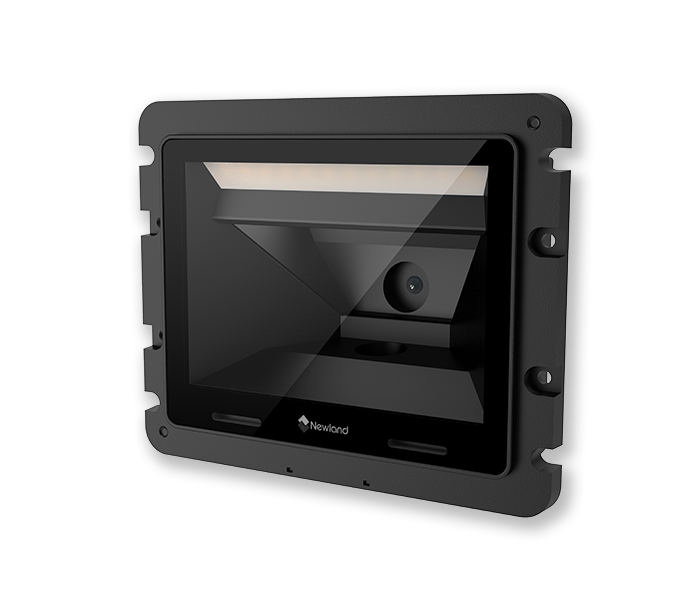

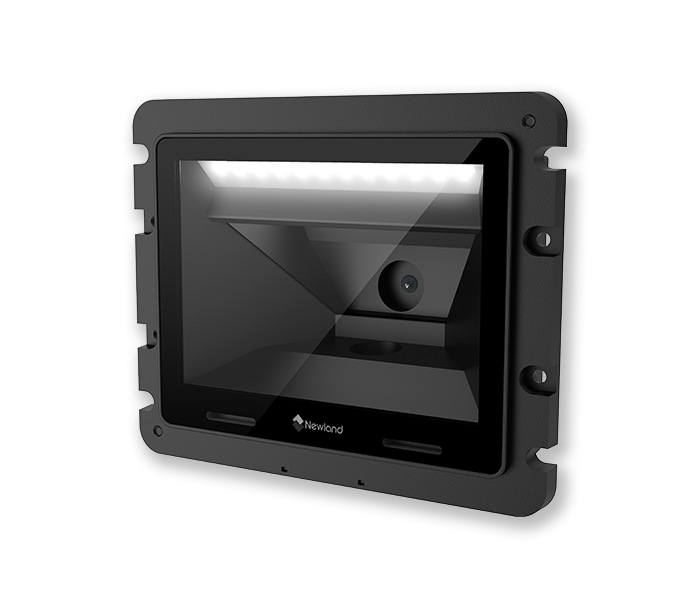

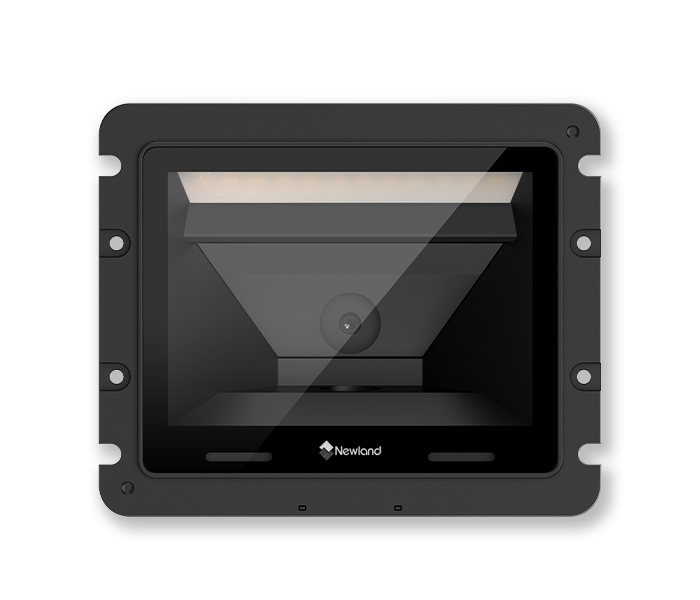

FM60 Fixed Mount

Product specifications
  • Decode Capability
    1D, 2D
  • Form Factor
    All-in-One
  • Interface
    RS-232, USB
  • Illumination
    White LED
  • Dimension
    114×46×94mm
  • Weight
    145g
Features
  • USB
    USB
  • 2D
    2D
  • 1D Barcode
    1D Barcode
  • IP52
    IP52
Vertical
  • POS
    POS
  • Features
  • Specifications
  • Downloads
Features
  • High Motion Tolerance

  • With 2m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.

  • Multiple Status indicators

  • 6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.

  • Superior Scanning Performance

  • Armed with Newland’s UIMG® technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the wrinkled, reflective and curved barcodes.

  • Wide-viewing Angle

  • Featuring wide-viewing angle, the scanner will conduct quick scanning when goods comes closer to the scan window.

Specifications
Performance
Image Sensor 1280 * 800 CMOS
Illumination 3000K white LED
Symbologies 2D: QR Code, PDF417, Data Matrix, Aztec
1D: Code 11, Code 128, Code 39, GS1-128(UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar(RSS)
Resolution ≥4mil (1D)
Typical Depth of Field EAN-13
QR Code
0mm-150mm (13mil)
0mm-100mm (15mil)
Scan Angle Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast ≥25% (Code 128 10mil)
Scan Mode Advanced sense mode
Motion Tolerance >2m/s
Field of View Horizontal 65.6°, Vertical 44.6°
Physical
Dimensions (L×W×H) 114×46×94mm (max.)
Weight 145g
Notification Beep, LED indicator
Operating Voltage 5 VDC±5%
Current Operating
Idle
275mA (typical), 365mA (max.)
228mA
Interfaces RS-232, USB
Environmental
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
ESD ±15 kV (air discharge), ±8 kV (direct discharge)
Sealing IP52
Certifications
Certifications FCC Part 15 Class B, CE EMC Class B, RoHS
Performance
Image Sensor
1280 * 800 CMOS
Illumination
3000K white LED
Symbologies
2D: QR Code, PDF417, Data Matrix, Aztec
1D: Code 11, Code 128, Code 39, GS1-128(UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar(RSS)
Resolution
≥4mil (1D)
Typical Depth of Field
EAN-13
QR Code
0mm-150mm (13mil)
0mm-100mm (15mil)
Scan Angle
Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast
≥25% (Code 128 10mil)
Scan Mode
Advanced sense mode
Motion Tolerance
>2m/s
Field of View
Horizontal 65.6°, Vertical 44.6°
Physical
Dimensions (L×W×H)
114×46×94mm (max.)
Weight
145g
Notification
Beep, LED indicator
Operating Voltage
5 VDC±5%
Current
Operating
Idle
275mA (typical), 365mA (max.)
228mA
Interfaces
RS-232, USB
Environmental
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
5% to 95% (non-condensing)
ESD
±15 kV (air discharge), ±8 kV (direct discharge)
Sealing
IP52
Certifications
Certifications
FCC Part 15 Class B, CE EMC Class B, RoHS
