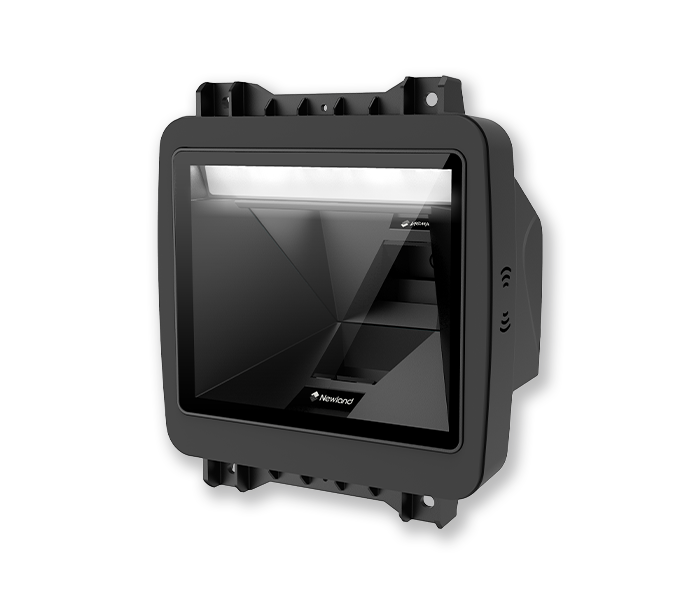

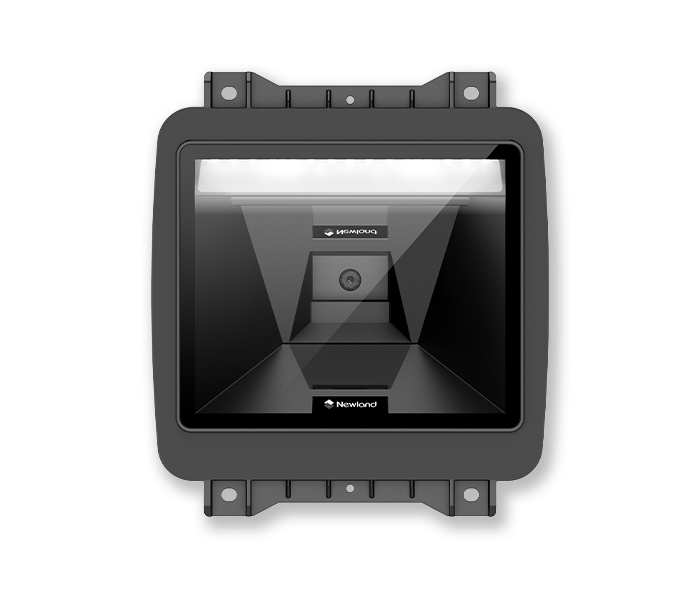

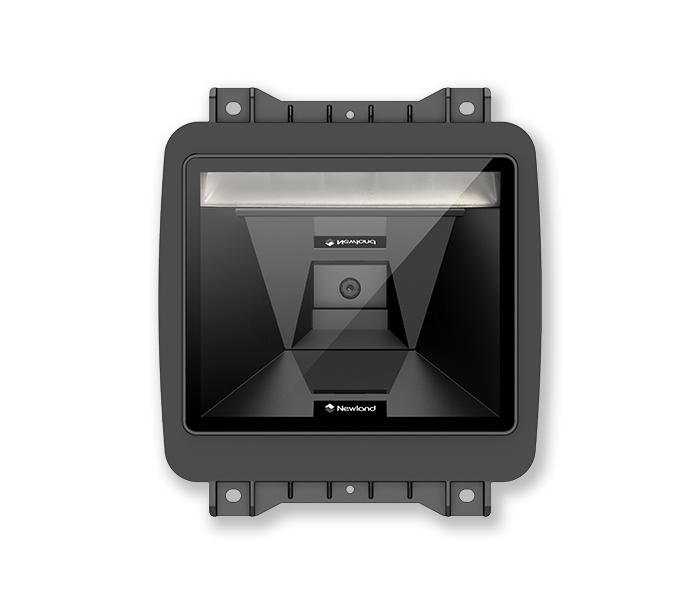

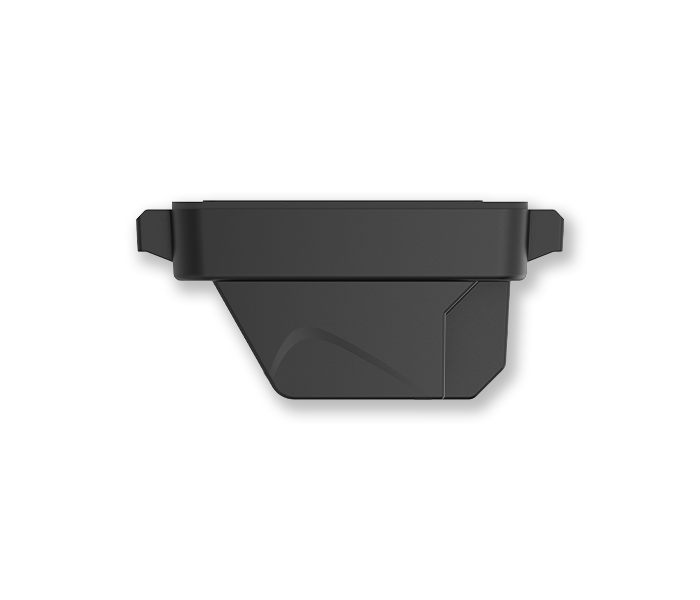

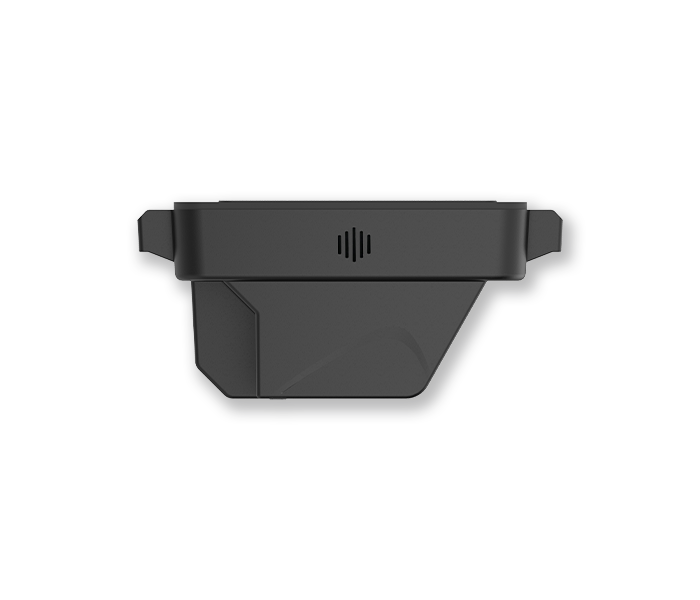

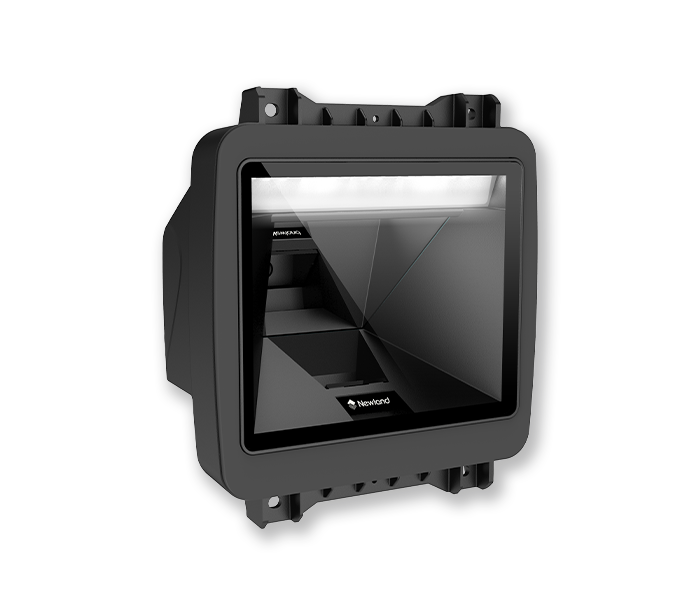

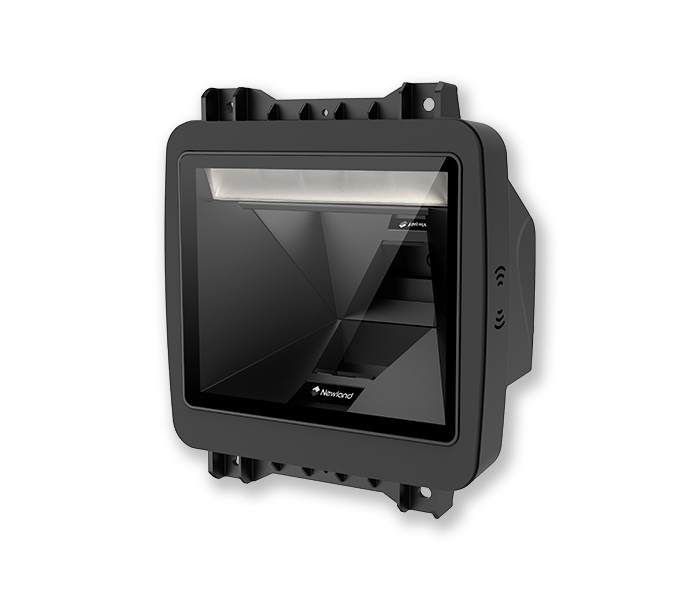

FM80 Fixed Mount

Product specifications
  • Decode Capability
    1D, 2D
  • Form Factor
    All-in-One
  • Interface
    RS-232, USB
  • Illumination
    Red LED
  • Dimension
    149×78.5×166.5mm
  • Weight
    448.3g
Features
  • CMOS
    CMOS
  • 1D Barcode
    1D Barcode
  • 2D Barcode
    2D Barcode
  • USB
    USB
Vertical
  • POS
    POS
  • Features
  • Specifications
  • Downloads
Features
  • Advanced Sense Mode

  • The scanner activates a decode session every time it detects a barcode presented to it, and the target barcode shown in the window will not be read repeatedly.

  • High Motion Tolerance

  • With 3.5m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.

  • Large Scan Window

  • Large scan window meets demands of goods with different sizes. When goods comes closer to the scan window, the scanner will conduct quick scanning.

  • Multiple Status indicators

  • 6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.

  • Superior Scanning Performance

  • Armed with Newland’s sixth-generation of technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the EAN-13 barcode.

Specifications
Performance
Image Sensor 1280 * 1088 CMOS
Illumination Red LED (614nm~624nm)
Symbologies PDF417, QR Code, Data Matrix, Aztec
Code 11, Code 128, Code 39, Code32 (Italian Pharma Code) GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite
Resolution ≥3mil (1D)
Typical Depth of Field 0mm-140mm (13mil)
50mm-90mm (5mil)
Scan Angle Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast 15% (Code 128 10mil)
Scan Mode Advanced sense mode
Motion Tolerance 350cm/s
Field of View Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H) 149 (W)×78.5 (D)×166.5 (H)mm
Weight 448.3g
Notification Beep, LED indicator
Operating Voltage 5VDC±5%
Current@5VDC 0.4A (typical), 0.5A (max.)
0.25A
Interfaces RS-232, USB
Rated Power Consumption 2W (typical), 2.5W (max.)
1.25W
Environmental
Operating Temperature -20℃ to 50℃ (-4°F to 122°F)
Storage Temperature -40℃ to 70℃ (-40°F~158°F)
Humidity 5% to 95% (non-condensing)
ESD ±15 KV (air discharge); ±8 KV (direct discharge)
Ambient Light 0~100,000lux (natural light)
Sealing IP52
Certifications
Certificates FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
Cable Used to connect the scanner to a host device.
Performance
Image Sensor
1280 * 1088 CMOS
Illumination
Red LED (614nm~624nm)
Symbologies
PDF417, QR Code, Data Matrix, Aztec
Code 11, Code 128, Code 39, Code32 (Italian Pharma Code) GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite
Resolution
≥3mil (1D)
Typical Depth of Field
0mm-140mm (13mil)
50mm-90mm (5mil)
Scan Angle
Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast
15% (Code 128 10mil)
Scan Mode
Advanced sense mode
Motion Tolerance
350cm/s
Field of View
Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H)
149 (W)×78.5 (D)×166.5 (H)mm
Weight
448.3g
Notification
Beep, LED indicator
Operating Voltage
5VDC±5%
Current@5VDC
0.4A (typical), 0.5A (max.)
0.25A
Interfaces
RS-232, USB
Rated Power Consumption
2W (typical), 2.5W (max.)
1.25W
Environmental
Operating Temperature
-20℃ to 50℃ (-4°F to 122°F)
Storage Temperature
-40℃ to 70℃ (-40°F~158°F)
Humidity
5% to 95% (non-condensing)
ESD
±15 KV (air discharge); ±8 KV (direct discharge)
Ambient Light
0~100,000lux (natural light)
Sealing
IP52
Certifications
Certificates
FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
Cable
Used to connect the scanner to a host device.
