FR80 On-counter Scanner

Product specifications
  • Decode Capability
    1D, 2D
  • Connectivity
    Corded
  • Dimension
    101×68×145mm
  • Weight
    217g
  • Sealing
    IP52
  • Interface
    USB, RS-232
Features
  • CMOS
    CMOS
  • 1D Barcode
    1D Barcode
  • 2D Barcode
    2D Barcode
  • IP52
    IP52
Vertical
  • Retail
    Retail
  • Kiosk
    Kiosk
  • Mobile Payment
    Mobile Payment
  • Features
  • Specifications
  • Downloads
Features

Advanced Sense Mode

The On-counter Scanner activates a decode session every time it detects a barcode presented to it, and the target barcode shown in the window will not be read repeatedly.

High Motion Tolerance

With 3.5m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.

Large Scan Window

Large scan window meets demands of goods with different sizes. When goods come closer to the scan window, the scanner will conduct quick scanning.

Multiple Status Indicators

6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.

Sound Effect & Volume keys

Sound effect and volume keys are provided for users to select one suitable for their application environment.

Superior Scanning Performance

Armed with Newland’s sixth-generation of   technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the EAN-13 barcode.

Specifications
Performance
Image Sensor 1280 * 1088 CMOS

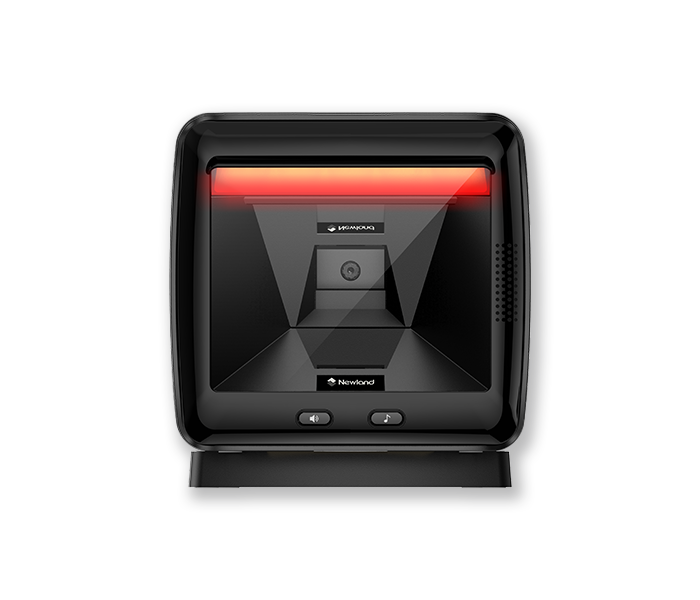

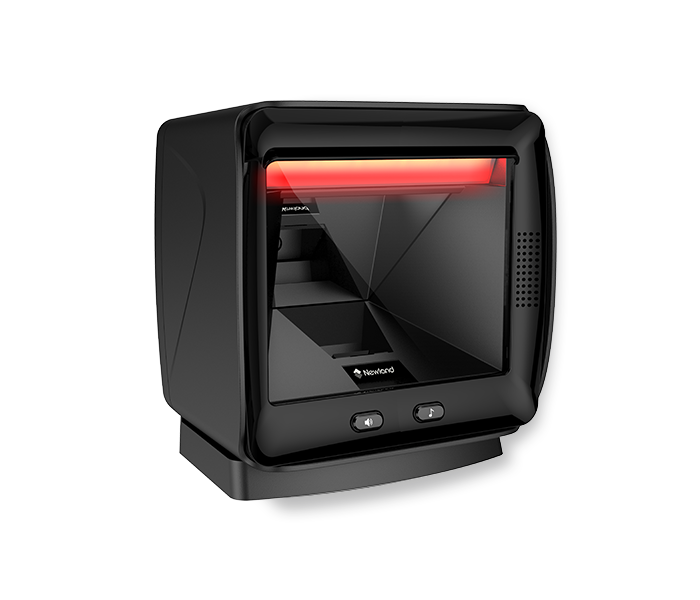

Illumination Red LED (614nm~624nm)
Symbologies 2D
1D
PDF417, QR Code, Data Matrix, Aztec
Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar (RSS)
Resolution ≥3mil (1D)
Typical Depth of Field EAN-13
EAN-13
0mm-140mm (13mil)
50mm-90mm (5mil)
Scan Angle Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast 15% (Code 128 10mil)
Scan Mode Advanced sense mode
Motion Tolerance 350cm/s
Field of View Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H) Without base: 151 (W)×141.5 (H) ×97.5 (D)mm

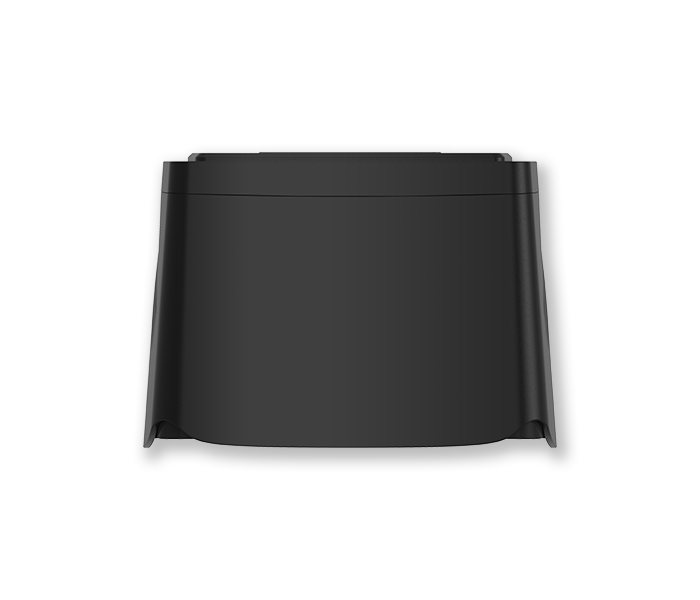

With base: 151 (W)×156.5 (H)×108.5 (D)mm
Weight 542g (without base), 678g (with base)
Notification Beep, LED indicator
Operating Voltage 5VDC±5%
Current@5VDC Operating
Idle
0.4A (typical), 0.5A (max.)
0.25A
Interfaces RS-232, USB
Rated Power Consumption Operating
Idle
2W (typical), 2.5W (max.)
1.25W
Environmental
Operating Temperature -20℃ to 50℃ (-4°F to 122°F)
Storage Temperature -40℃ to 70℃ (-40°F~158°F)
Humidity 5% to 95% (non-condensing)
ESD ±15 KV (air discharge); ±8 KV (direct discharge)
Sealing IP52
Ambient Light 0~100,000lux (natural light)
Certifications
Certificates FCC Part15 Class B, CE EMC Class B, RoHS
Performance
Image Sensor
1280 * 1088 CMOS
Illumination
Red LED (614nm~624nm)
Symbologies
2D
1D
PDF417, QR Code, Data Matrix, Aztec
Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar (RSS)
Resolution
≥3mil (1D)
Typical Depth of Field
EAN-13
EAN-13
0mm-140mm (13mil)
50mm-90mm (5mil)
Scan Angle
Roll: 360°, Pitch: ±55°, Skew: ±50°
Min. Symbol Contrast
15% (Code 128 10mil)
Scan Mode
Advanced sense mode
Motion Tolerance
350cm/s
Field of View
Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H)
Without base: 151 (W)×141.5 (H) ×97.5 (D)mm
With base: 151 (W)×156.5 (H)×108.5 (D)mm
Weight
542g (without base), 678g (with base)
Notification
Beep, LED indicator
Operating Voltage
5VDC±5%
Current@5VDC
Operating
Idle
0.4A (typical), 0.5A (max.)
0.25A
Interfaces
RS-232, USB
Rated Power Consumption
Operating
Idle
2W (typical), 2.5W (max.)
1.25W
Environmental
Operating Temperature
-20℃ to 50℃ (-4°F to 122°F)
Storage Temperature
-40℃ to 70℃ (-40°F~158°F)
Humidity
5% to 95% (non-condensing)
ESD
±15 KV (air discharge); ±8 KV (direct discharge)
Sealing
IP52
Ambient Light
0~100,000lux (natural light)
Certifications
Certificates
FCC Part15 Class B, CE EMC Class B, RoHS
