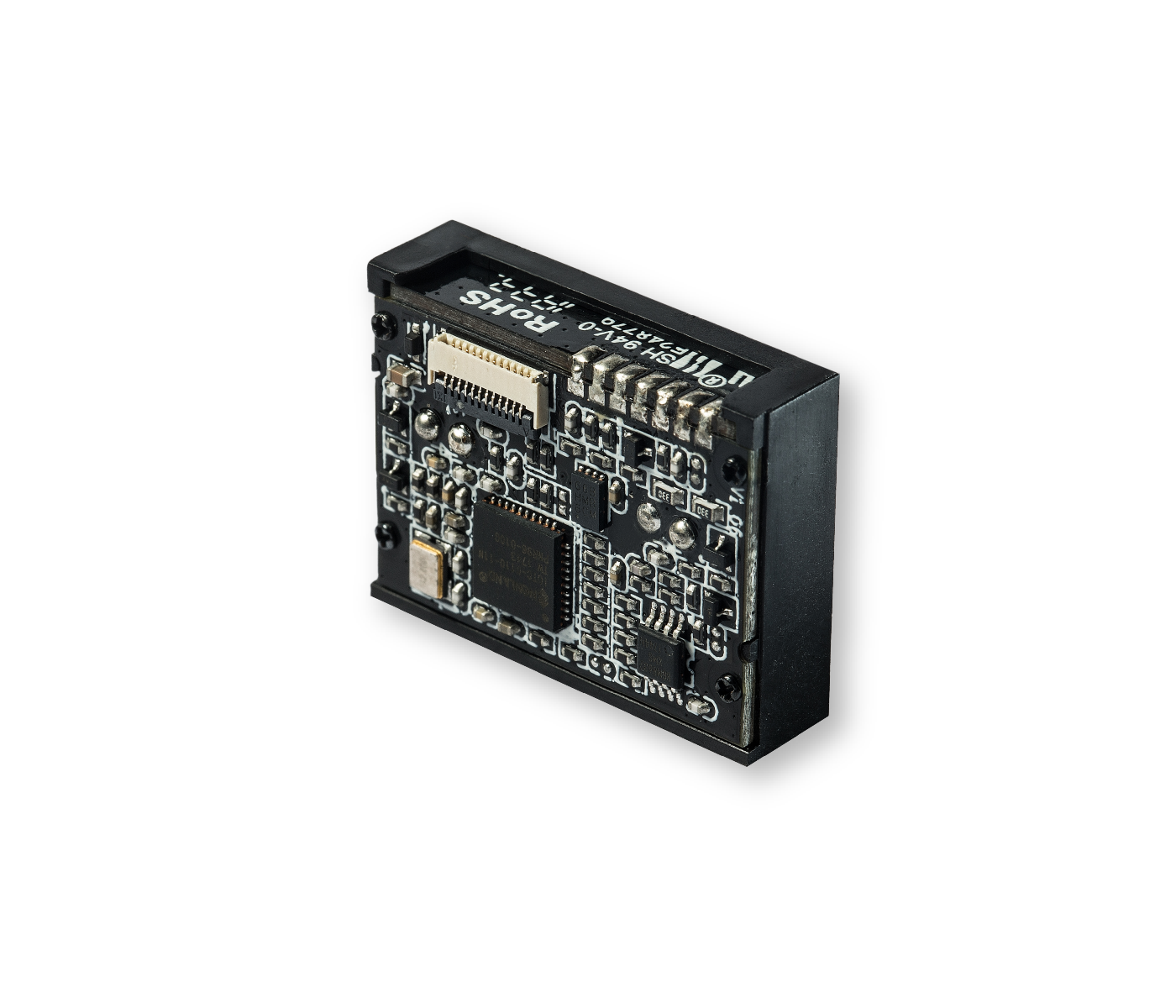

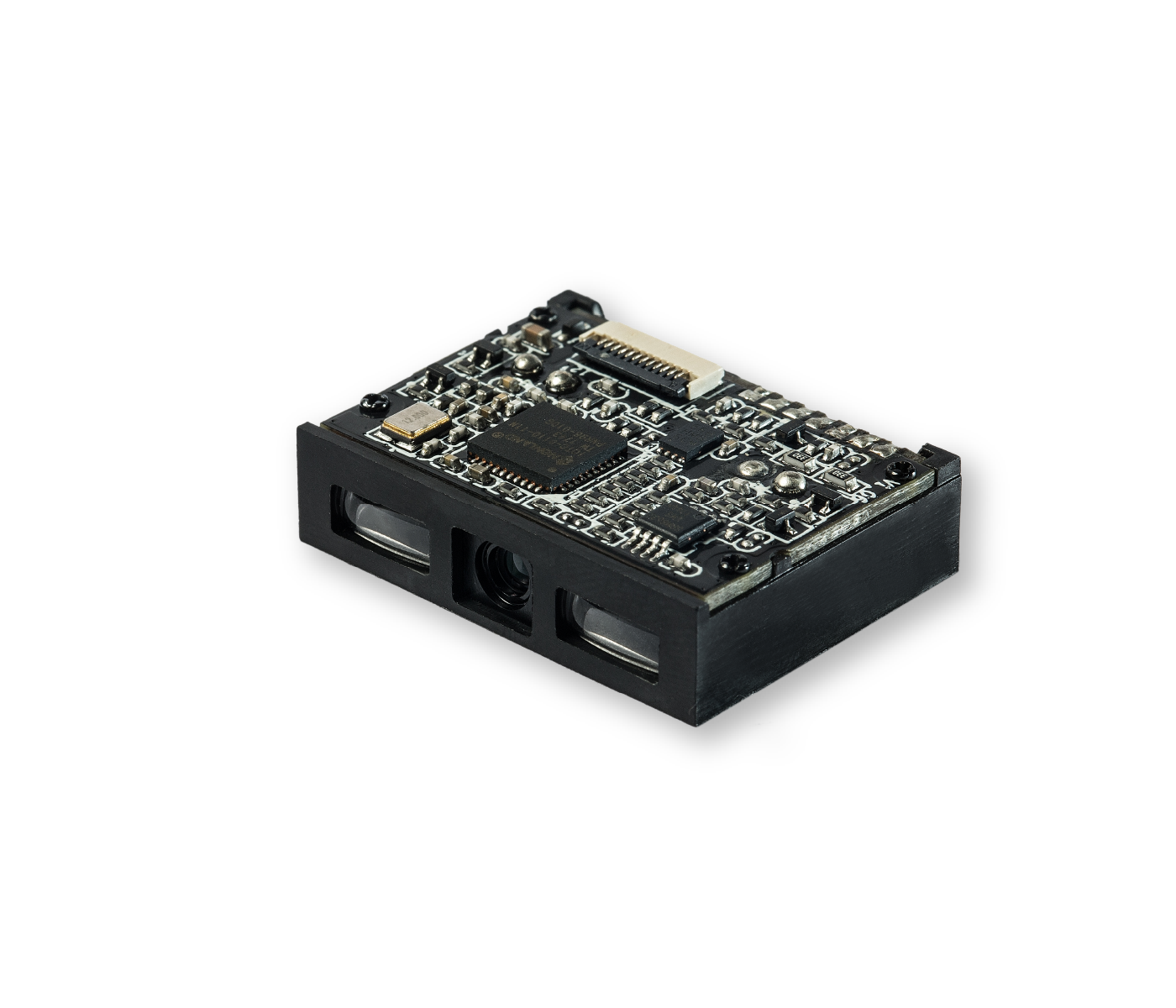

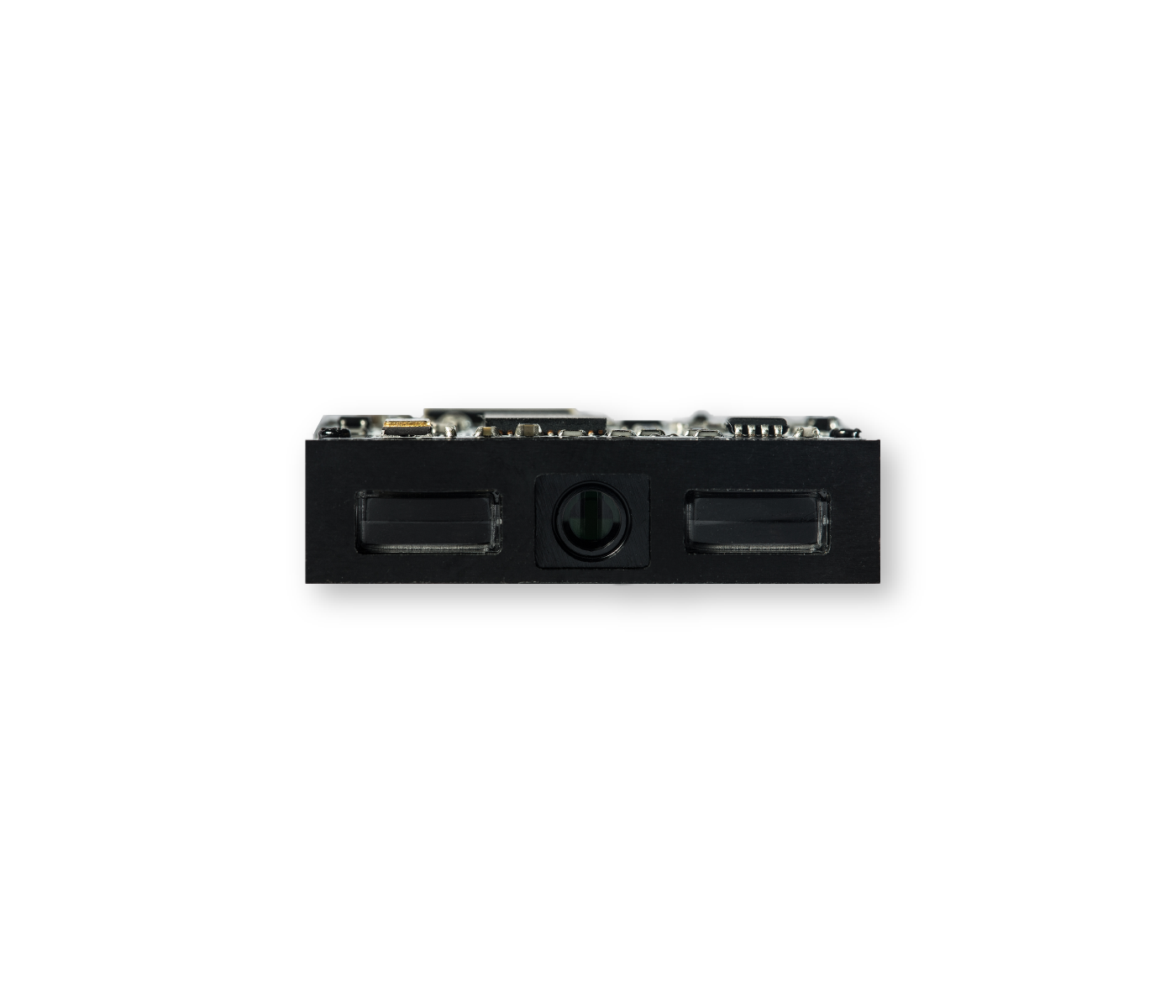

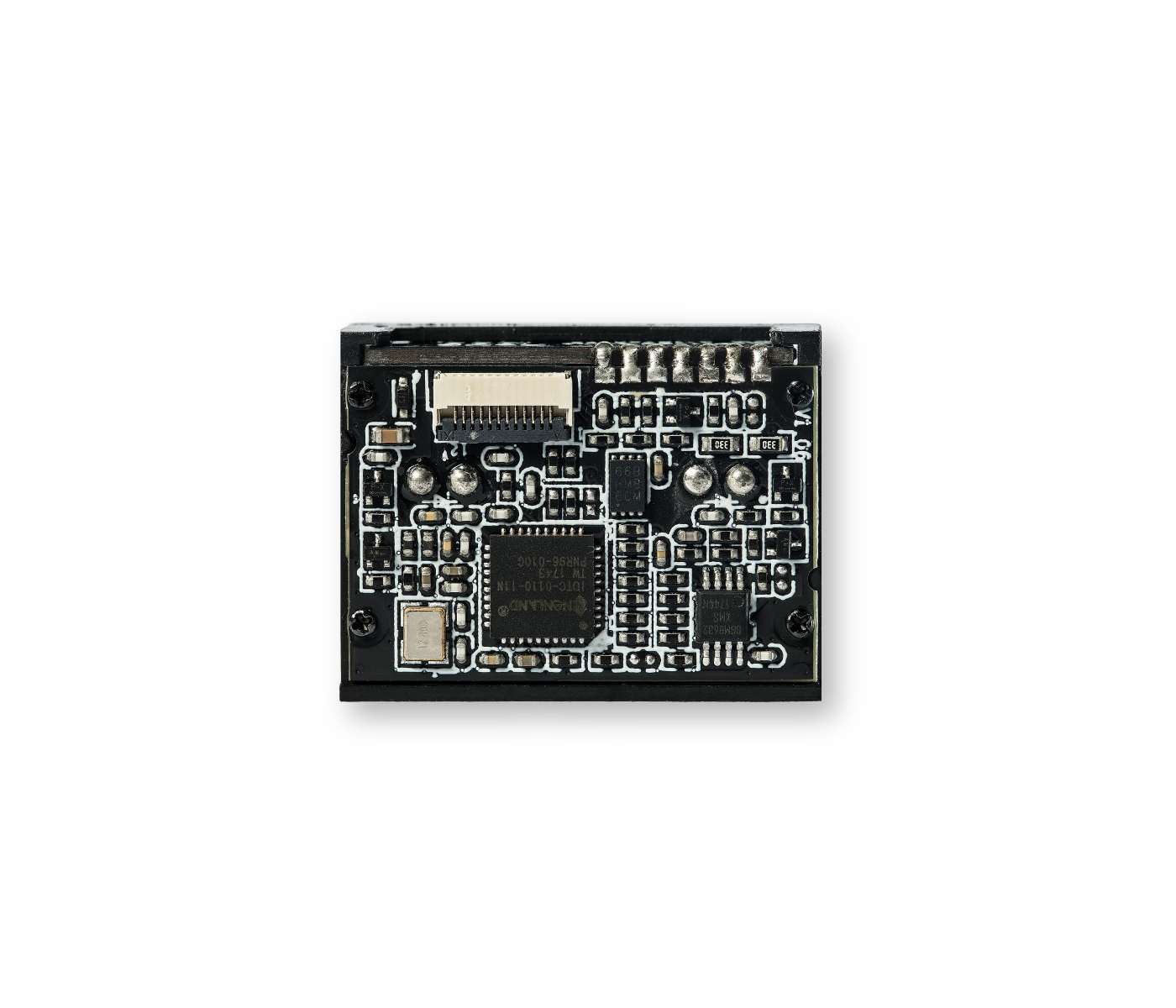

The NLS-EM1365-EX’s core UIMG® technology is independently developed by Newland, comprising optical system, digitizer, decoder, image processor and embedded system. The device demonstrates an unprecedented decoding capability on all mainstream 1D symbologies.
The NLS-EM1365-EX supports USB and TTL-232 interfaces to meet diverse customer needs.
Seamless integration of imager and decoder board makes the scan engine small, lightweight and easy for integration.
The advanced NLDC technology incorporated in the scan engines helps reduce its power consumption and prolong its service life.
Performance | Image Sensor | 2500 CCD | |
| Illumination | LED (620nm ~ 630nm) | ||
| Symbologies | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, GS1 Databar, Code 128, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSIPlessey, Code 93, Plessey |
||
| Resolution | ≥3mil | ||
| Typical Depth of Field | EAN-13 60mm ~ 600mm (13mil) Code 39 90mm~190mm (5mil) |
||
| Min. Symbol Contrast | 30% | ||
| Scan Angle | Pitch: ±65°, Skew: ±65° | ||
Physical | Dimensions | 28.2(W)×21.6(D)×8.6(H)mm | |
| Weight | 5.7g | ||
| Operating Voltage | 3.3VDC±5% | ||
| Rated Power Consumption | 69mW (typical) | ||
| Current@5VDC | Operating 21mA (typical), 88mA (max.) Idle 10mA |
||
| Interfaces | TTL-232, USB1.1 | ||
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
Certifications | FCC Part15 Class B; CE EMC Class B | ||
Accessories | FCC Cable | 12-pin, same side contact or opposite side contact | |
| NLS-EVK | Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces. |
||
| Data Cable | RS-232 Cable Used to connect the NLS-EVK to a host device USB Cable Used to connect the NLS-EVK to a host device |
||
| Power Adapter | DC5V power adapter, used to provide power for the NLS-EVK. | ||
| Image Sensor | |
|---|---|
| 2500 CCD | |
| Illumination | |
|---|---|
| LED (620nm ~ 630nm) | |
| Symbologies | |
|---|---|
| 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, GS1 Databar, Code 128, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSIPlessey, Code 93, Plessey |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13 60mm ~ 600mm (13mil) Code 39 90mm~190mm (5mil) |
|
| Min. Symbol Contrast | |
|---|---|
| 30% | |
| Scan Angle | |
|---|---|
| Pitch: ±65°, Skew: ±65° | |
| Dimensions | |
|---|---|
| 28.2(W)×21.6(D)×8.6(H)mm | |
| Weight | |
|---|---|
| 5.7g | |
| Operating Voltage | |
|---|---|
| 3.3VDC±5% | |
| Rated Power Consumption | |
|---|---|
| 69mW (typical) | |
| Current@5VDC | |
|---|---|
| Operating 21mA (typical), 88mA (max.) Idle 10mA |
|
| Interfaces | |
|---|---|
| TTL-232, USB1.1 | |
| Operating Temperature | |
|---|---|
| -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C (-40°F to 158°F) | |
| FCC Part15 Class B; CE EMC Class B | |
| FCC Cable | |
|---|---|
| 12-pin, same side contact or opposite side contact | |
| NLS-EVK | |
|---|---|
| Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces. |
|
| Data Cable | |
|---|---|
| RS-232 Cable Used to connect the NLS-EVK to a host device USB Cable Used to connect the NLS-EVK to a host device |
|
| Power Adapter | |
|---|---|
| DC5V power adapter, used to provide power for the NLS-EVK. | |
