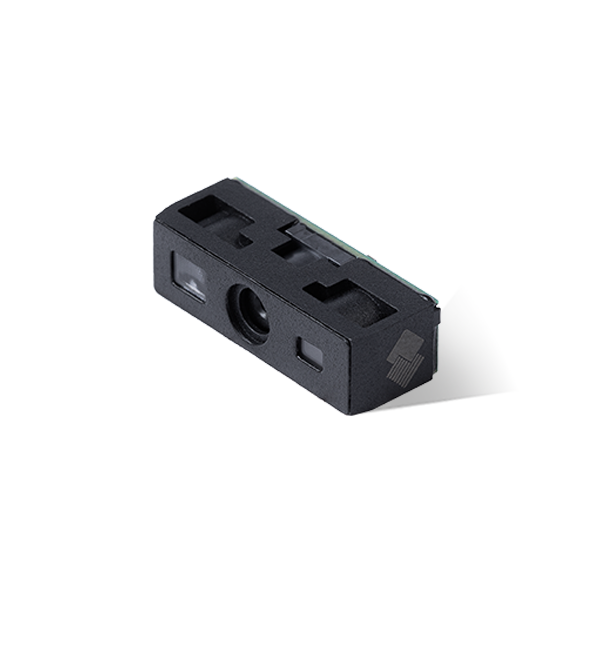

With 1280×800 pixel CMOS sensor, the EM3088-W is able to decode extended-length 1D barcodes, 2D barcodes with rich data, passport OCR-B and even poor quality barcodes (e.g., low contrast, laminated, damaged, torn, warped or wrinkled).
Designed with big-FOV and smooth gradient warm-white LED illumination, EM3088-W maximizes the overall decoding performance in close-range reading.
Newland experienced software RD team can fulfill your special requirements on firmware or decoding algorithm in time based on project NRE.
Featuring excellent near-field reading and the widest viewing angle H:99°/V:72.4°/D:109° in the AIDC industry, the scan engine offers stunning performance on decoding in close-range for extended-length 1D barcodes or 2D barcodes with rich data.
Performance | Image Sensor | 1280*800 CMOS | |
| Illumination | White LED | ||
| Symbologies | 2D:PDF 417, Micro PDF417, QR, Micro QR, Data Matrix, Chinese Sensible Code, GridMatrix, Code One, Aztec 1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2/5, ITF-14, ITF-6, ISBN, ISSN, Code 93, Code 11, GS1 Databar, GS1 Composite, Matrix 2/5, COOP 25, Industrial 2/5, Standard 2/5, MSI Plessey, Plessey, Code 49, Code 16K, GS1 128, AIM 128, ISBT 128 Postal：USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post OCR：Passport OCR, Chinese ID Card OCR, China Travel Permit OCR |
||
| Resolution | ≥3mil(Code 39) | ||
| Typical Depth of Field | EAN-13：30mm-85mm (13mil) PDF417：30mm-55mm (6.7mil) Code 39：35mm-65mm (5mil 50mm) Data Matrix：23mm-65mm (10mil) QR Code：20mm-80mm (15mil) |
||
| Min. Symbol Contrast | 25% | ||
| Scan Angle | Roll: 360°, Pitch: ±50°, Skew: ±50° | ||
| Field of View | Horizontal 99°, Vertical 72.4°, Diagonal 109° |
Physical | Dimensions (L×W×H) | 21.7(W)×14.5(D)×12(H)mm (max.) | |
| Weight | 3g | ||
| Operating Voltage | 3.3VDC±5% | ||
| Current@5VDC | Operating (RMS) ：423mA (max.) Idle (RMS)： 44mA |
||
| Interfaces | TTL-232, USB |
Environmental | Operating Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Storage Temperature | -40℃ to 70℃ (-40°F~158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Ambient Light | 0lux |
Certifications | Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS, IEC62471 |
