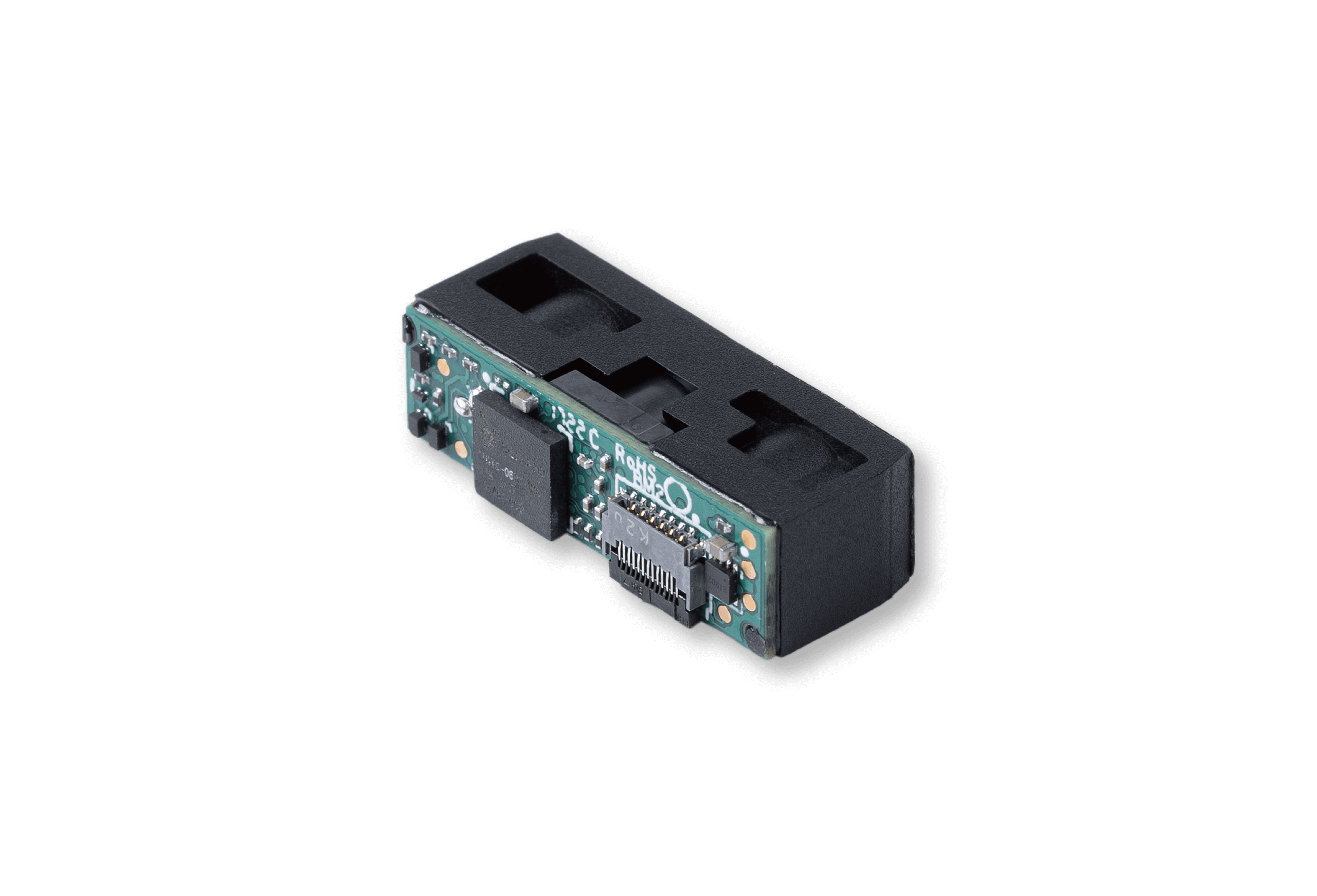

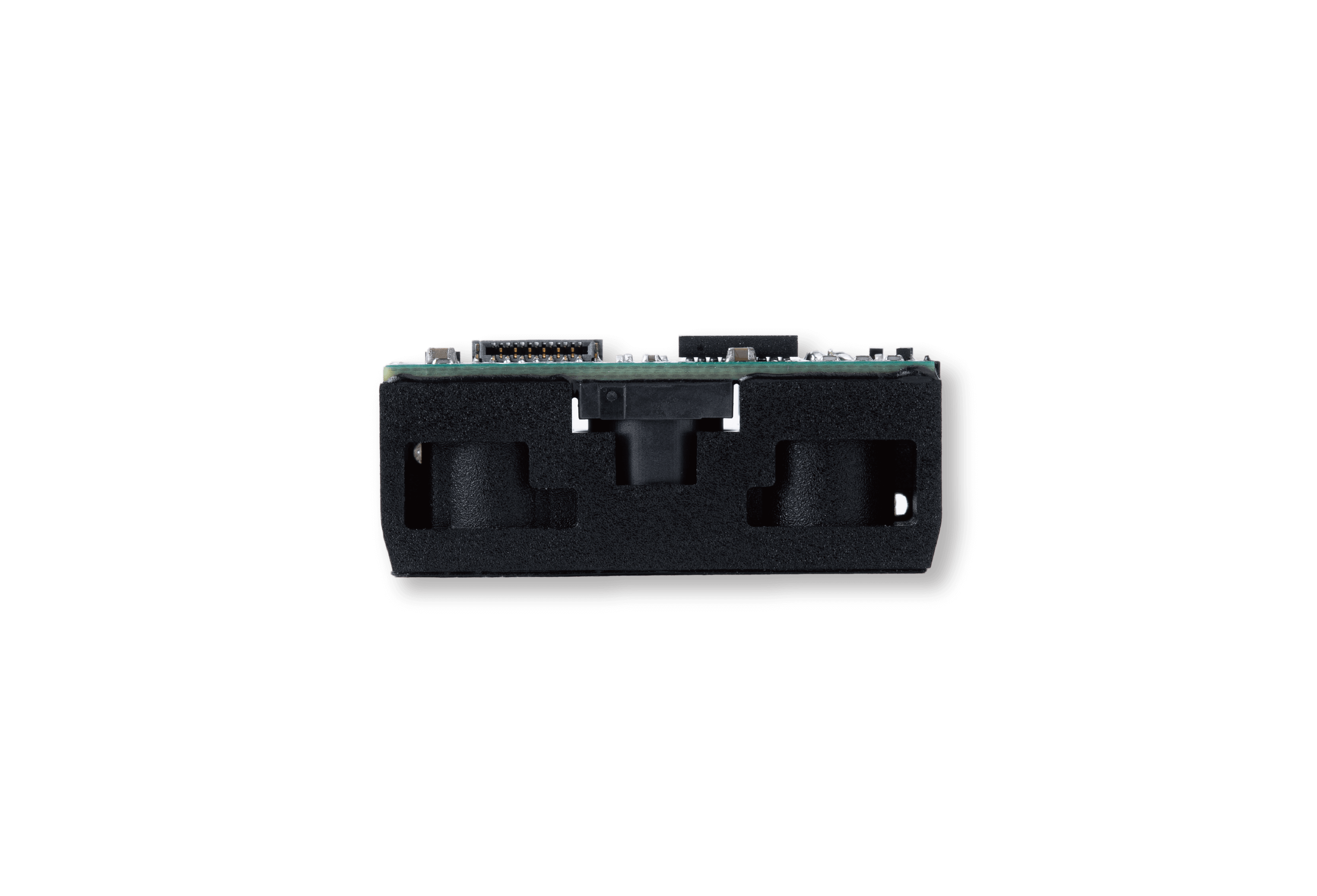

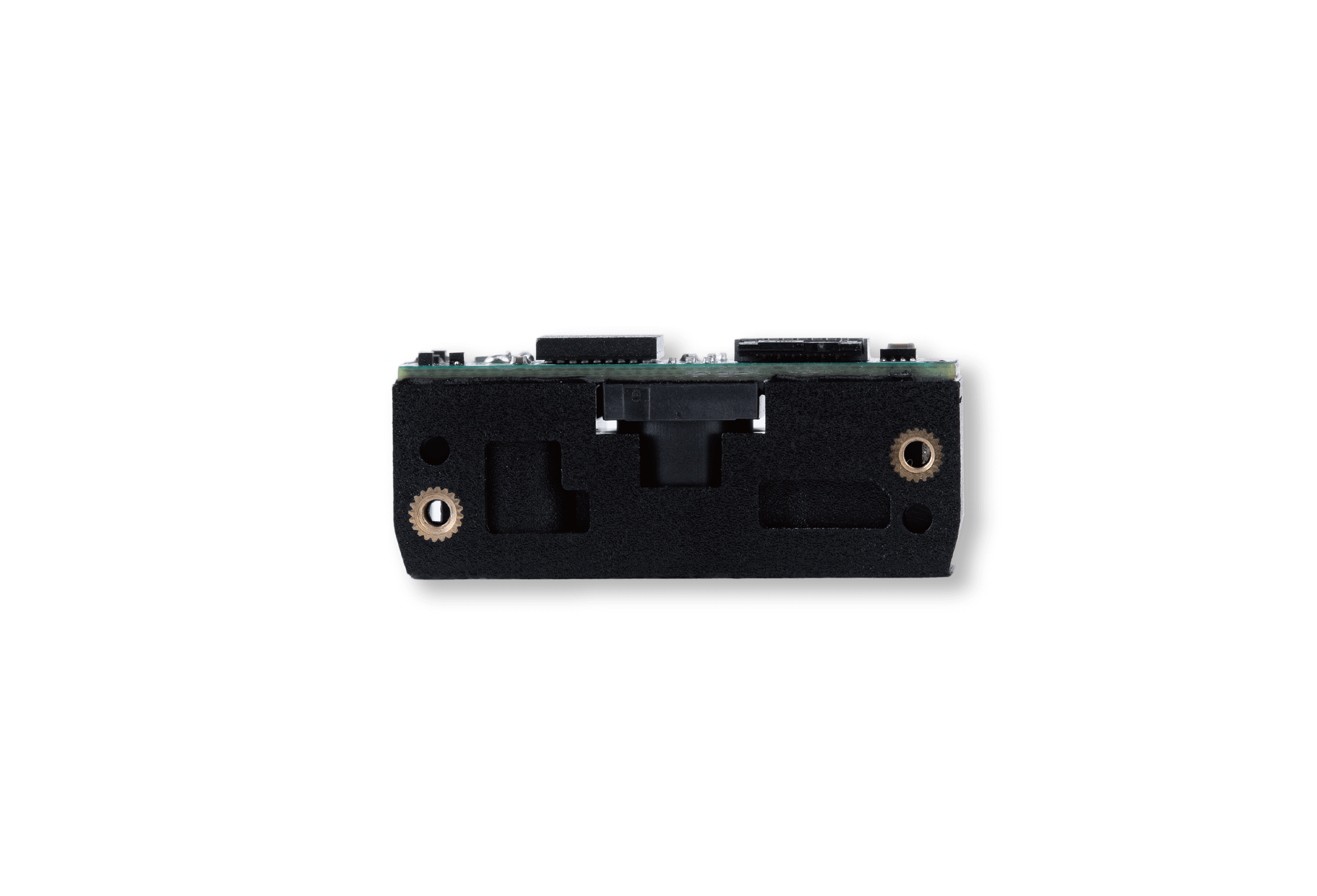

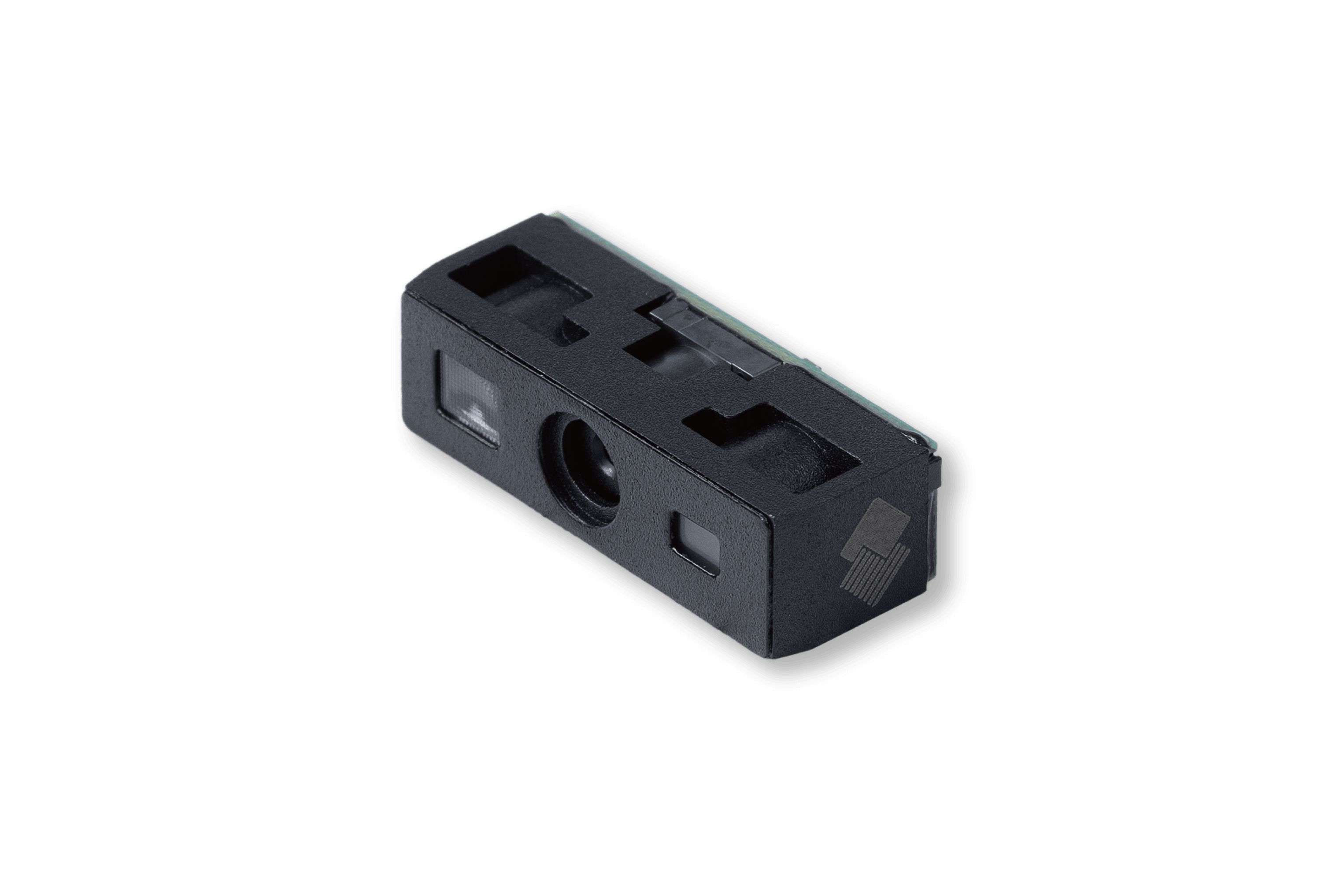

N1-ER Scan Engine All in one

Product specifications

Decode Capability
1D, 2D
Form Factor
All-in-One
Interface
USB, TTL-232
Illumination
625nm Red LED, 5000K White LED
Dimension
21.5×9.0×7.0mm
Weight
1.2g

Features

1D Barcode
2D Barcode
USB
TTL232

Vertical

Mobile Terminal
Barcode Scanner
Voting machine
IVD

Features
Specifications
Downloads
Solutions

Features

Ultra-long Scan Distance

Scan distance for Code 128 (20mil) is up to 0.8m and 1.4m for Code 128 (40mil).

User-friendly Aiming

Designed with the end user in mind, the NLS-N1-ER employs highly visible laser aimer to achieve crisp and accurate targeting.

Compact & Lightweight Design

Seamless integration of imager and decoder board makes the scan engine extremely smallest and lightweight and easy to fit into miniature equipment.

Outstanding Power Efficiency

The advanced NLDC technology incorporated in the scan engine helps reduce its power consumption and prolong its service life.

Specifications

Performance	Image Sensor	640 * 480 CMOS
	Illumination	3000K white LED
	Aiming	650nm laser diode
	Symbologies	1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey 2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec
	Resolution	3mil(1D) 6.67mil(2D)
	Typical Depth of Field	EAN-13(13mil): 105mm-680mm Code 39(5mil): 120mm-260mm Code 39(20mil): 65mm-800mm Code 128(40mil): 115mm-1400mm QR Code(15mil): 80mm-250mm
	Min. Symbol Contrast	20%
	Scan Angle	Roll: 360°, Pitch: ±60°, Skew: ±60°
	Field of View	Horizontal 28°, Vertical 21°

Physical	Interface	TTL-232, USB
	Operating Voltage	3.3VDC±5%
	Current@3.3VDC	Operating(RMS): 102.73mA (typical) Idle: 11.8mA Sleep: ＜0.3mA
	Dimensions	23.8(W)×10.5(D)×7.0(H)mm (max.)
	Weight	2g

Environmental	Operating Temperature	-20 °C a 60 °C (-4 °F a 140 °F)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Humidity	5% to 95% (non-condensing)
	Ambient Light	0~100,000lux (natural light)

Certifications

Certificates & Protection

FCC Part 15 Class B, CE EMC Class B, RoHS

Accessories	NLS-EVK	Optional: Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
	Cable	Optional: 75mm FPC cable used to connect the N1-ER to a host device.

Performance

Image Sensor
640 * 480 CMOS

Illumination
3000K white LED

Aiming
650nm laser diode

Symbologies
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey 2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec

Resolution
3mil(1D) 6.67mil(2D)

Typical Depth of Field
EAN-13(13mil): 105mm-680mm Code 39(5mil): 120mm-260mm Code 39(20mil): 65mm-800mm Code 128(40mil): 115mm-1400mm QR Code(15mil): 80mm-250mm

Min. Symbol Contrast
20%

Scan Angle
Roll: 360°, Pitch: ±60°, Skew: ±60°

Field of View
Horizontal 28°, Vertical 21°

Physical

Interface
TTL-232, USB

Operating Voltage
3.3VDC±5%

Current@3.3VDC
Operating(RMS): 102.73mA (typical) Idle: 11.8mA Sleep: ＜0.3mA

Dimensions
23.8(W)×10.5(D)×7.0(H)mm (max.)

Weight
2g

Environmental

Operating Temperature
-20 °C a 60 °C (-4 °F a 140 °F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Humidity
5% to 95% (non-condensing)

Ambient Light
0~100,000lux (natural light)

Certifications

Certificates & Protection
FCC Part 15 Class B, CE EMC Class B, RoHS

Accessories

NLS-EVK
Optional: Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.

Cable
Optional: 75mm FPC cable used to connect the N1-ER to a host device.
