優れた遠距離読み取りにより、4～8列またはダブルサークルターンテーブルの長距離スキャンが可能です。
金属筐体はIP54等級で密封されており、耐久性と信頼性に優れています。
医療業界向けに最適化されたデコードアルゴリズム。高精度なデコードにより読み取りエラーを最小限に抑えます。

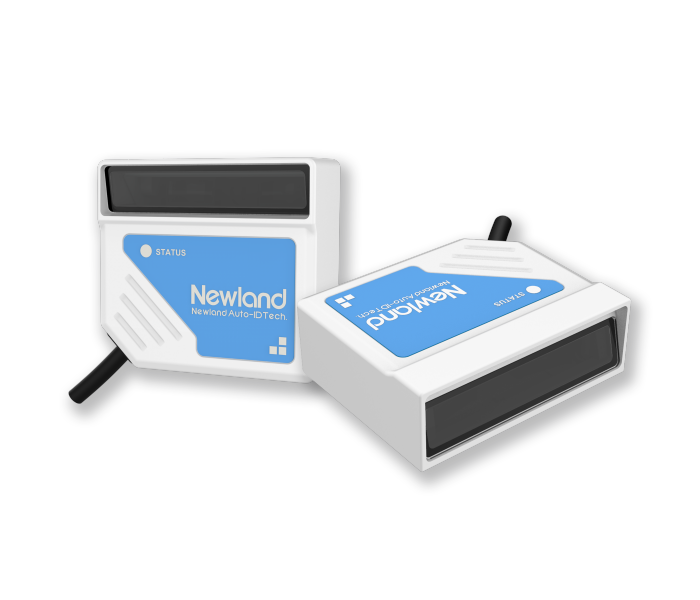

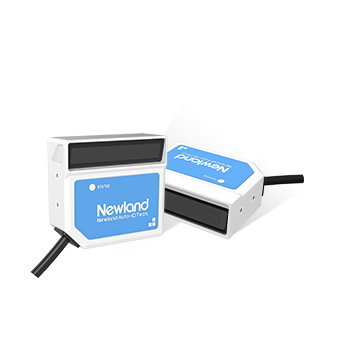

このミニバーコードスキャナーは、スタンドアロン機器に簡単に組み込めます。
毎秒780回スキャン。IVD機器の高速投入や高速ターンテーブルに適しています。
近距離読み取りに対応した広いスキャン範囲。
5～24VDCの電圧範囲に対応。
Performance | Image Sensor | 2500 CCD |
| Illumination | 615nm red LED | |
| Field of View | 68° | |
| Beam Exit | FM515-V: Scan window with lateral beam exit. FM515-H: Scan window with front beam exit. |
|
| Scan Speed | 780 scans/s | |
| Depth of Field | FM515-V: 25-180mm FM515-H: 35-190mm |
|
| Resolution | ≥6mil | |
| Symbologies | 1D: Codabar, Code 128, EAN-13 Addendum, Code 39, Code 93, GS1-128 (UCC/EAN 128), EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2/5 |
|
| Min. Symbol Contrast | 25% |
Physical | Operating Voltage | 5-24VDC±5% |
| Rated Power Consumption | ＜4W | |
| Current@5VDC | 477mA RMS (typical), 657mA (max.) | |
| Current@24VDC | 107mA RMS (typical), 170mA (max.) | |
| Interface | RS-232 | |
| Notification | Status indicator | |
| Housing | Aluminium | |
| Dimensions | FM515-V: 62.5(W)×57(D)×21.5(H)mm (max.) FM515-H: 62.5(W)×50.5(D)×21.5(H)mm (max.) |
|
| Weight | 166g |
Environmental | Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Sealing | IP65 | |
| Ambient Light | ≤5000lux |
Certification | CE/FCC/UL IEC62471: 2006 for LED safety RoHS 2.0 |
| Image Sensor | |
|---|---|
| 2500 CCD | |
| Illumination | |
|---|---|
| 615nm red LED | |
| Field of View | |
|---|---|
| 68° | |
| Beam Exit | |
|---|---|
| FM515-V: Scan window with lateral beam exit. FM515-H: Scan window with front beam exit. |
|
| Scan Speed | |
|---|---|
| 780 scans/s | |
| Depth of Field | |
|---|---|
| FM515-V: 25-180mm FM515-H: 35-190mm |
|
| Resolution | |
|---|---|
| ≥6mil | |
| Symbologies | |
|---|---|
| 1D: Codabar, Code 128, EAN-13 Addendum, Code 39, Code 93, GS1-128 (UCC/EAN 128), EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2/5 |
|
| Min. Symbol Contrast | |
|---|---|
| 25% | |
| Operating Voltage | |
|---|---|
| 5-24VDC±5% | |
| Rated Power Consumption | |
|---|---|
| ＜4W | |
| Current@5VDC | |
|---|---|
| 477mA RMS (typical), 657mA (max.) | |
| Current@24VDC | |
|---|---|
| 107mA RMS (typical), 170mA (max.) | |
| Interface | |
|---|---|
| RS-232 | |
| Notification | |
|---|---|
| Status indicator | |
| Housing | |
|---|---|
| Aluminium | |
| Dimensions | |
|---|---|
| FM515-V: 62.5(W)×57(D)×21.5(H)mm (max.) FM515-H: 62.5(W)×50.5(D)×21.5(H)mm (max.) |
|
| Weight | |
|---|---|
| 166g | |
| Operating Temperature | |
|---|---|
| 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -40℃ to 70℃ (-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Sealing | |
|---|---|
| IP65 | |
| Ambient Light | |
|---|---|
| ≤5000lux | |
| CE/FCC/UL IEC62471: 2006 for LED safety RoHS 2.0 |
|
