デュアルレーザー照準により、設置時のデバイス位置合わせが簡単で便利です。
USBインターフェースを介してホストへ高速データ転送をサポートします。
金属筐体はIP65等級で密封されており、耐久性と信頼性に優れています。
特定領域の画像をさまざまなフォーマットで転送可能です。
医療業界向けに最適化されたデコードアルゴリズム。高精度なデコードにより読み取りエラーを最小限に抑えます。

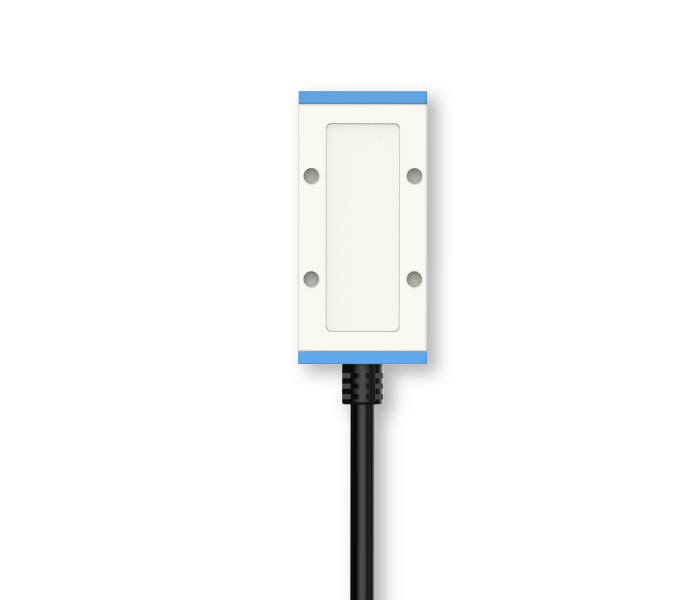

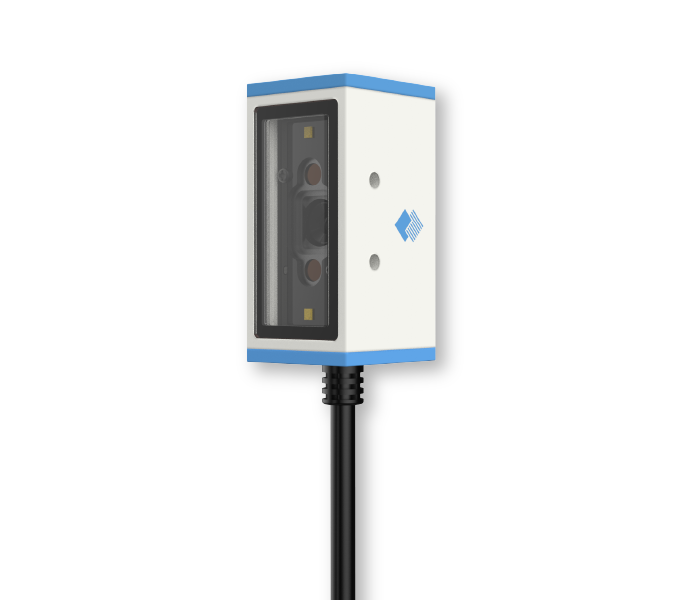

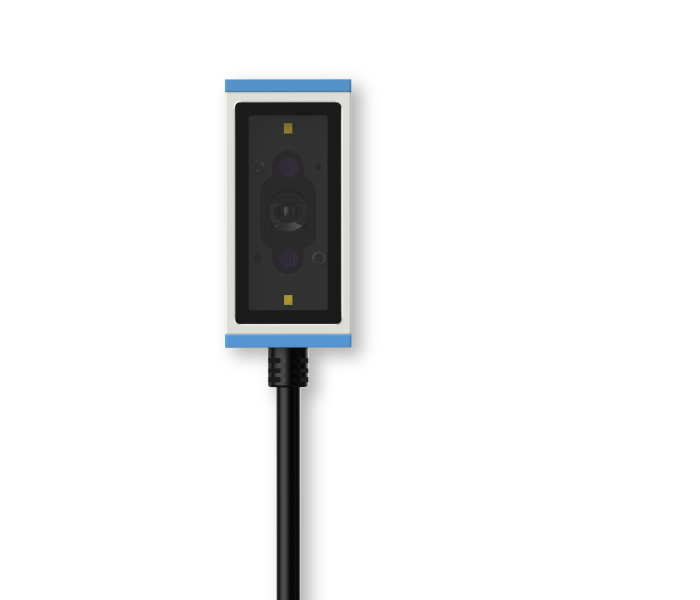

このミニバーコードスキャナーは、IVD機器に簡単に組み込めます。
近距離読み取りに対応した広いスキャン範囲。
Performance | Image Sensor | 800*1280 CMOS |
| Illumination | 3000K white LED | |
| Aimer | 650nm red laser aiming LEDs*2 | |
| Field of View | Horizontal 52°, Vertical 76.5° | |
| Beam Exit | Scan window with lateral beam exit | |
| Depth of Field | 1D: Code 11, Code 128, Code 39, GS1 128 Code 39 (6.67mil): 45-85mm Code 128 (5mil): 30-80mm Code 128 (10mil): 35-130mm QR (15mil): 15-165mm Data Matrix (10mil): 20-120 |
|
| Resolution | ≥5mil | |
| Symbologies | 1D: Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2/5, Code 39, Codabar, Code 93, UCC/EAN-128 2D: PDF417, QR Code, Aztec, Data Matrix. |
|
| Min. Symbol Contrast | 50% |
Physical | Operating Voltage | 5VDC±5% |
| Current | Operating: 141.35mA RMS (typical), 397.54mA (max.) | |
| Interface | RS-232, USB | |
| Housing | Aluminium | |
| Dimensions | 54(W)×27.5(D)×25.5(H)mm (max.) (without cable) | |
| Weight | 107g | |
| Cable | USB-A: 1.5m 9-pin connection cable: 2m |
Environmental | Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Sealing | IP65 | |
| Ambient Light | ≤5000lux |
Certification | CE/FCC IEC62471: 2006 for LED safety 60825-1:2014 for laser safety RoHS 2.0 |
| Image Sensor | |
|---|---|
| 800*1280 CMOS | |
| Illumination | |
|---|---|
| 3000K white LED | |
| Aimer | |
|---|---|
| 650nm red laser aiming LEDs*2 | |
| Field of View | |
|---|---|
| Horizontal 52°, Vertical 76.5° | |
| Beam Exit | |
|---|---|
| Scan window with lateral beam exit | |
| Depth of Field | |
|---|---|
| 1D: Code 11, Code 128, Code 39, GS1 128 Code 39 (6.67mil): 45-85mm Code 128 (5mil): 30-80mm Code 128 (10mil): 35-130mm QR (15mil): 15-165mm Data Matrix (10mil): 20-120 |
|
| Resolution | |
|---|---|
| ≥5mil | |
| Symbologies | |
|---|---|
| 1D: Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2/5, Code 39, Codabar, Code 93, UCC/EAN-128 2D: PDF417, QR Code, Aztec, Data Matrix. |
|
| Min. Symbol Contrast | |
|---|---|
| 50% | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Current | |
|---|---|
| Operating: 141.35mA RMS (typical), 397.54mA (max.) | |
| Interface | |
|---|---|
| RS-232, USB | |
| Housing | |
|---|---|
| Aluminium | |
| Dimensions | |
|---|---|
| 54(W)×27.5(D)×25.5(H)mm (max.) (without cable) | |
| Weight | |
|---|---|
| 107g | |
| Cable | |
|---|---|
| USB-A: 1.5m 9-pin connection cable: 2m |
|
| Operating Temperature | |
|---|---|
| 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -20°C to 70°C (-4°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Sealing | |
|---|---|
| IP65 | |
| Ambient Light | |
|---|---|
| ≤5000lux | |
| CE/FCC IEC62471: 2006 for LED safety 60825-1:2014 for laser safety RoHS 2.0 |
|
