NewlandのUIMG®テクノロジーを搭載し、スキャンエンジンは低コントラスト、ラミネート加工、破損、破れ、歪み、しわなどの低品質バーコードでも迅速かつ容易に読み取ることができます。

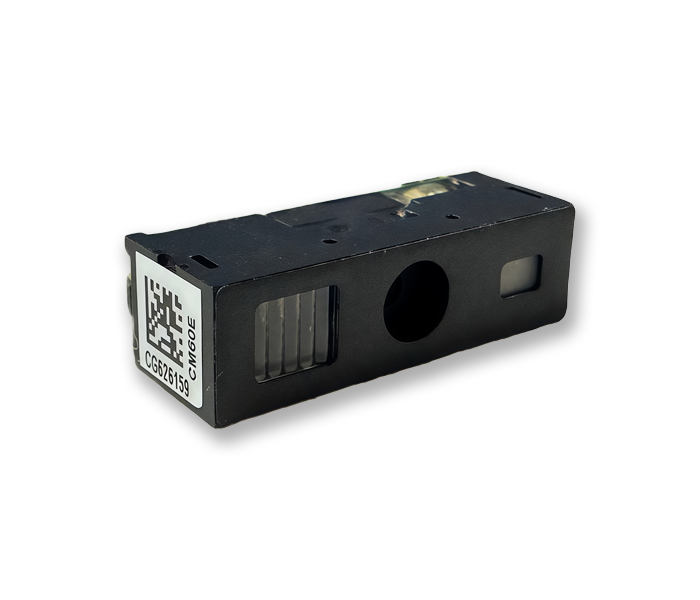

NLS-CM60Eは、明るい日光の下でも鮮明で明るいレーザー照射のクロスヘア照準パターンを提供し、初回から正確な照準を実現します。
イメージャーセンサーとエイマーをシームレスに統合し、コンパクトかつ軽量な設計を実現。小型機器に最適です。優れたイメージング性能で、次世代のスリムデザインを可能にします。
フリッカーのないソフトライティングシステムにより、グレア（映り込み）もなく、高強度の連続使用条件下でも目の疲れを感じません。
Performance | Image Sensor | 1280 * 800 CMOS |
| Illumination | 3000K white LED | |
| Aiming | 650nm red laser | |
| Symbologies | 2D PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec, Chinese Sensible Code, Maxicode, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN-128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, GS1 Composite, etc. |
|
| Resolution | 1D ≥3mil | |
| Typical Depth of Field | EAN-13 55mm-610mm (13mil) PDF 417 110mm-230mm (6.7mil) Code 39 80mm-300mm (5mil) Data Matrix 90mm-280mm (10mil) QR Code 55mm-400mm (15mil) |
|
| Min Symbol Contrast | 25% | |
| Scan Angle | Roll: 360°, Pitch: ± 50°, Skew: ± 50° | |
| Field of View | Horizontal 42°, Vertical 28° |
Physical | Interface | IIC, MIPI |
| Operating Voltage | VIMG:3.3VDC±5% VLED: 3.3VDC±5% |
|
| Current | Operating 292mA (typical) 706mA (max.) Idle 2.5mA |
|
| Dimensions | 23.2(W)×10.1(D)×7.0(H)mm (max.) | |
| Weight | 1.7g |
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux (natural light) |
Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
Accessories | Cable | Optional 25-PIN FPC cable used to connect the NLS-EVK to a host device. |
