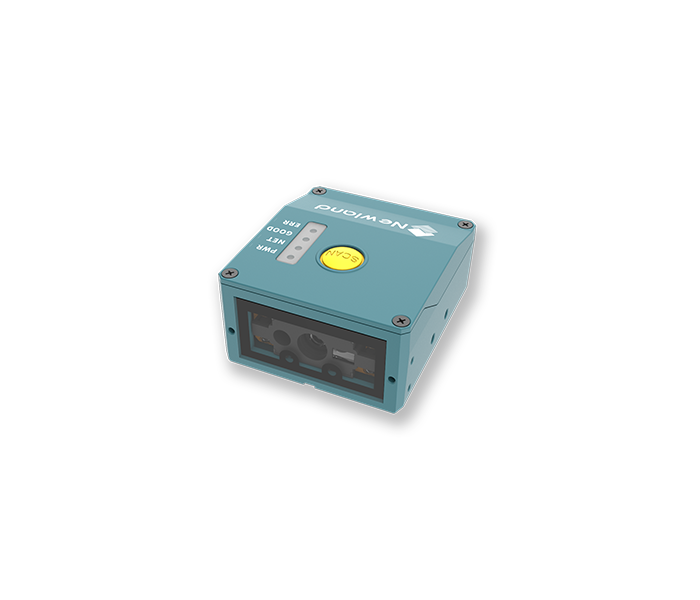

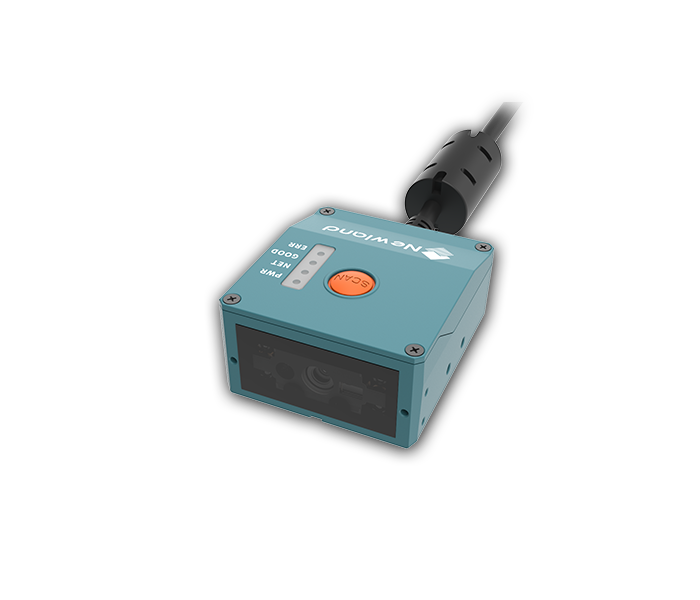

Equipped with next-generation AI platform, 1280×800 high-resolution low-noise image sensor, and IP54-rated design, the NLS-NVF230 enhances optical performance, delivering exceptional decoding capabilities and reliability.
Featuring a proprietary AI-powered industrial decoding algorithm, the NLS-NVF230 delivers exceptional performance in decoding both 1D and 2D barcodes. It instantly scans printed and non-reflective barcodes upon power-up, with no need for image parameter adjustments.
The NLS-NVF230 supports various accessories including diffuser, reflector, and magnifier, providing effective solutions for reflective environments and limited installation scenarios, making it suitable for a wide range of applications.
The NSet configuration tool simplifies parameter setup, supporting configuration libraries, multi-code sorting, and script programming, enabling users to access advanced functionalities with ease.
The NLS-NVF230 integrates USB, RS-232, and Ethernet interfaces, supporting mainstream industrial protocols such as TCP, Ethernet/IP, Profinet, and MELSEC/SLMP. With interface auto-adaptation, it enables seamless and rapid connection to debugging software.
Performance | Image Sensor | 1280 × 800 CMOS |
| Illumination | Red LED(AP) White LED(SR/HD/HHD) |
|
| Symbologies | 2D:QR Code, PDF417, Micro QR, Data Matrix. 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of 5, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, Code 11, Code 93, ISBT128, Deutsche14, Deutsche12. |
|
| Resolution | ≥3mil | |
| Typical Depth of Field | NVF230-SR: EAN-13(13mil):50-340mm Code 39(5mil):75-175mm Data Matrix(10mil):50-200mm QR Code(15mil):50-290mm NVF230-HD/AP EAN-13(13mil):70-165mm Code 39(5mil):60-120mm Data Matrix(10mil):50-115mm QR Code(15mil):30-145mm NVF230-HHD: QR Code(5.6mil):30-40mm QR Code(6.7mil):28-53mm |
|
| Scan Angle | Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Min. Symbol Contrast | 25% | |
| Field of View | Horizontal 48.5°, Vertical 30.7° |
Physical | Dimensions (L×W×H) | 45(W)×51(D)×25(H) |
| Weight | 176g | |

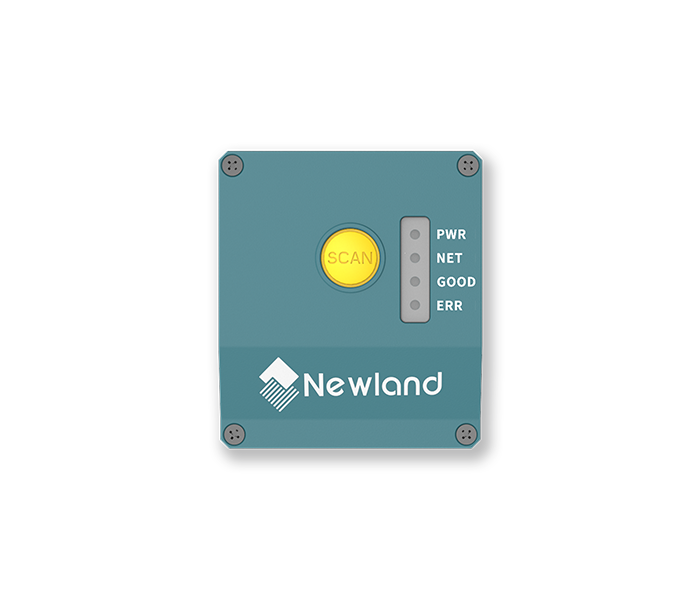

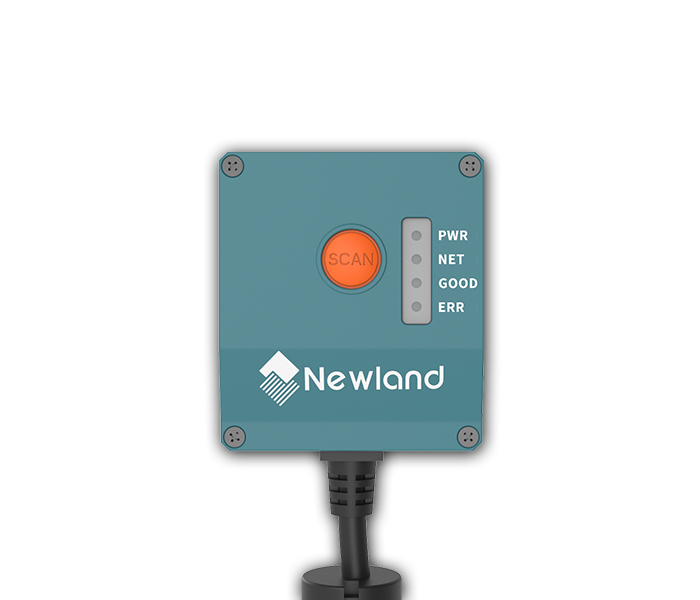

| Notification | Beep, LED indicator | |
| Current | operating: White LED: 387mA (typical), 571mA (max). RED LED: 387mA (typical), 477mA (max). standby:58mA |
|
| Interfaces | USB, RS232, Ethernet. | |
| Operating Voltage | 5VDC±5% | |
| Input | Maximum 15mA (input power: 5V ~ 30V); 1 channel | |
| Outputs | Maximum 60mA (input power≤30V); 2 channels | |
| Rated Power Consumption | White LED: 1859mW (typical) RED LED: 1859 mW (typical) |
Environmental | Operating Temperature | -20°C to 60°C(-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C(-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | 1.5m | |
| Sealing | IP54 |
Certifications | Certifications | FCC, CE, ROHS, IEC62471, BIS. |
| Image Sensor | |
|---|---|
| 1280 × 800 CMOS | |
| Illumination | |
|---|---|
| Red LED(AP) White LED(SR/HD/HHD) |
|
| Symbologies | |
|---|---|
| 2D:QR Code, PDF417, Micro QR, Data Matrix. 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of 5, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, Code 11, Code 93, ISBT128, Deutsche14, Deutsche12. |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| NVF230-SR: EAN-13(13mil):50-340mm Code 39(5mil):75-175mm Data Matrix(10mil):50-200mm QR Code(15mil):50-290mm NVF230-HD/AP EAN-13(13mil):70-165mm Code 39(5mil):60-120mm Data Matrix(10mil):50-115mm QR Code(15mil):30-145mm NVF230-HHD: QR Code(5.6mil):30-40mm QR Code(6.7mil):28-53mm |
|
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Min. Symbol Contrast | |
|---|---|
| 25% | |
| Field of View | |
|---|---|
| Horizontal 48.5°, Vertical 30.7° | |
| Dimensions (L×W×H) | |
|---|---|
| 45(W)×51(D)×25(H) | |
| Weight | |
|---|---|
| 176g | |
| Notification | |
|---|---|
| Beep, LED indicator | |
| Current | |
|---|---|
| operating: White LED: 387mA (typical), 571mA (max). RED LED: 387mA (typical), 477mA (max). standby:58mA |
|
| Interfaces | |
|---|---|
| USB, RS232, Ethernet. | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Input | |
|---|---|
| Maximum 15mA (input power: 5V ~ 30V); 1 channel | |
| Outputs | |
|---|---|
| Maximum 60mA (input power≤30V); 2 channels | |
| Rated Power Consumption | |
|---|---|
| White LED: 1859mW (typical) RED LED: 1859 mW (typical) | |
| Operating Temperature | |
|---|---|
| -20°C to 60°C(-4°F to 140°F) |
|
| Storage Temperature | |
|---|---|
| -40°C to 70°C(-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | |
|---|---|
| 1.5m | |
| Sealing | |
|---|---|
| IP54 | |
| Certifications | |
|---|---|
| FCC, CE, ROHS, IEC62471, BIS. | |
