Equipped with the latest AI-powered barcode positioning technology, the NLS-NVH220B improves decoding performance for low-contrast barcodes. Additionally, intelligent learning enables automatic parameter adjustments based on different scenarios.
Equipped with advanced OCR technology, the NLS-NVH220B accurately recognizes alphanumeric characters on products and materials, boosting productivity
Powered by Newland’s latest-generation decoding algorithm, the NLS-NVH220B-HD significantly improves decoding performance on complex barcodes and excels at decoding laser-etched and dot-peened DPM codes.
The NLS-NVH220B built into an IP64-sealed and can withstand repeated falls from 1.8 meters to the ground, with excellent reliability and stability.
The NLS-NVH220B-HD features an upgraded dual-core processing platform that delivers higher compute performance at lower power, enabling faster, more stable decoding and superior image capture.

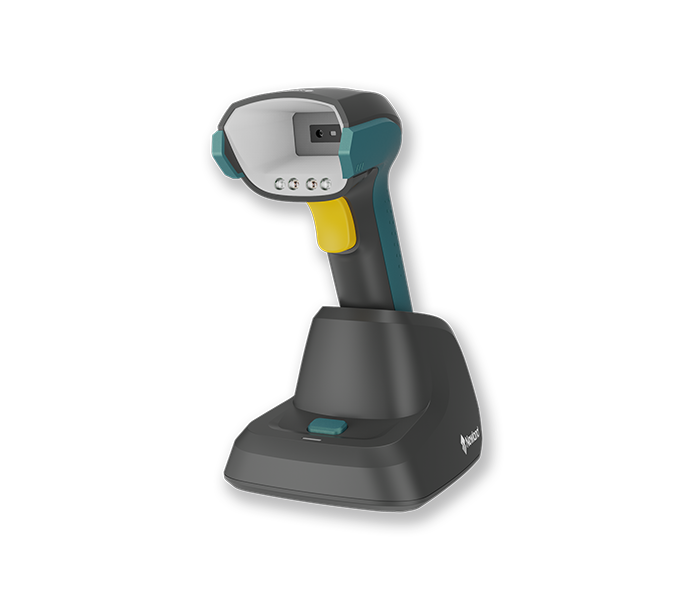

Provides red and blue direct (spot) illumination and white diffuse lights. The versatile lighting system accommodates reflective materials, curved surfaces, varied backgrounds, and different barcode colors, meeting diverse and complex scanning requirements.
Powered by the new generation of wireless communication technology, the scanner delivers low-latency, highly reliable performance with strong interference immunity, ensuring stable, reliable, and accurate data transmission even in complex RF environments.
Performance | Image Sensor | 1280 × 960 CMOS |
| Illumination | Direct: white & red light LED; |
|
| Aiming | Diffuse: Ring of blue LEDs; LED 532nm |
|
| Symbologies | 2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | ≥3mil | |
| Typical Depth of Field | EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
|
| Motion Tolerance | 2m/s | |
| Min. Symbol Contrast | 20% | |
| Scan Angle | Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Field of View | Horizontal 41°, Vertical 31° |
Physical | Interface | USB, RS232, PS/2 |
| Operating Voltage | 5VDC±5% | |
| Rated Power Consumption | 2246mW (typical) | |
| Current@4VDC | Power consumption: 562mA Idle: 116mA Sleep: 43mA |
|

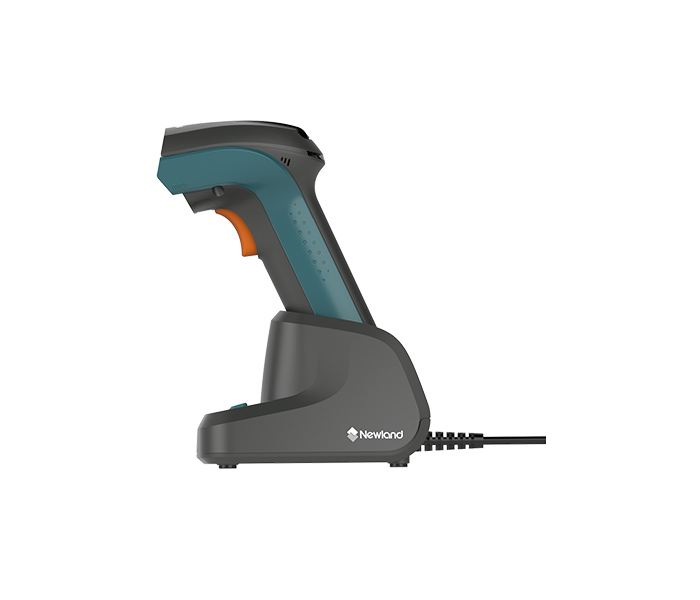

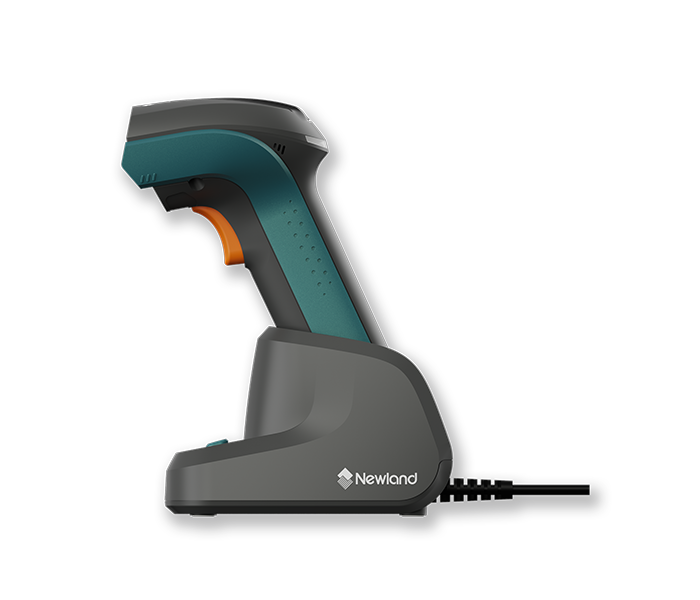

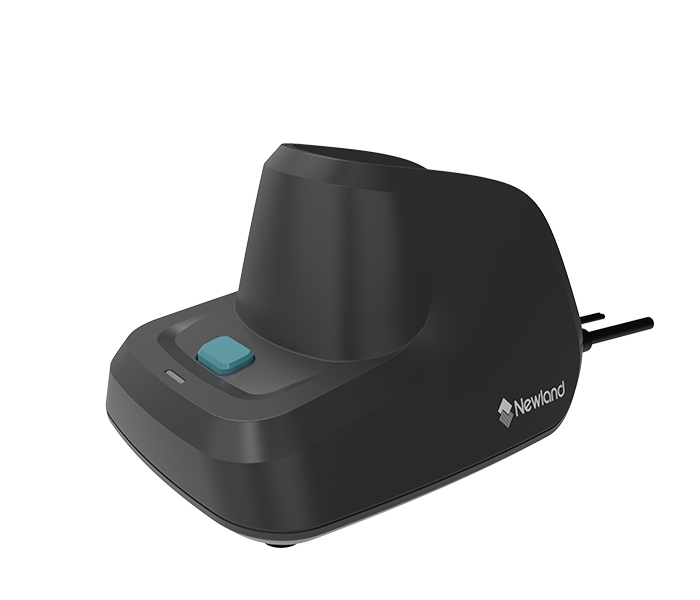

| Dimensions | Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm |
|
| Weight | Scanner: 220g, Cradle: 230g | |
| Notification | Beep, LED indicator, Vibrator | |
| Communication Distance | 150m (line of sight) | |
| Flash Memory | ≥30000 pieces of code 128 (20 byte of each Code 128) | |
| Battery | 2900mAh | |
| Radio Technology | 2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE | |
| Expected Battery Life | ≥20 hours of continuous operation, up to 70,000 scans per charge | |
| Expected Charge Time | 2.5 hours |
Environmental | Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux (natural light) | |
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | Scanner: 1.8m，Cradle: 1.2m | |
| Sealing | Scanner: IP64, Cradle: IP42 |
| Image Sensor | |
|---|---|
| 1280 × 960 CMOS | |
| Illumination | |
|---|---|
| Direct: white & red light LED; |
|
| Aiming | |
|---|---|
| Diffuse: Ring of blue LEDs; LED 532nm |
|
| Symbologies | |
|---|---|
| 2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
|
| Motion Tolerance | |
|---|---|
| 2m/s | |
| Min. Symbol Contrast | |
|---|---|
| 20% | |
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Field of View | |
|---|---|
| Horizontal 41°, Vertical 31° | |
| Interface | |
|---|---|
| USB, RS232, PS/2 | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Rated Power Consumption | |
|---|---|
| 2246mW (typical) | |
| Current@4VDC | |
|---|---|
| Power consumption: 562mA Idle: 116mA Sleep: 43mA |
|
| Dimensions | |
|---|---|
| Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm |
|
| Weight | |
|---|---|
| Scanner: 220g, Cradle: 230g | |
| Notification | |
|---|---|
| Beep, LED indicator, Vibrator | |
| Communication Distance | |
|---|---|
| 150m (line of sight) | |
| Flash Memory | |
|---|---|
| ≥30000 pieces of code 128 (20 byte of each Code 128) | |
| Battery | |
|---|---|
| 2900mAh | |
| Radio Technology | |
|---|---|
| 2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE | |
| Expected Battery Life | |
|---|---|
| ≥20 hours of continuous operation, up to 70,000 scans per charge | |
| Expected Charge Time | |
|---|---|
| 2.5 hours | |
| Operating Temperature | |
|---|---|
| 0°C to 50°C | |
| Storage Temperature | |
|---|---|
| -20°C to 70°C | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Ambient Light | |
|---|---|
| 0~100,000lux (natural light) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | |
|---|---|
| Scanner: 1.8m，Cradle: 1.2m | |
| Sealing | |
|---|---|
| Scanner: IP64, Cradle: IP42 | |
