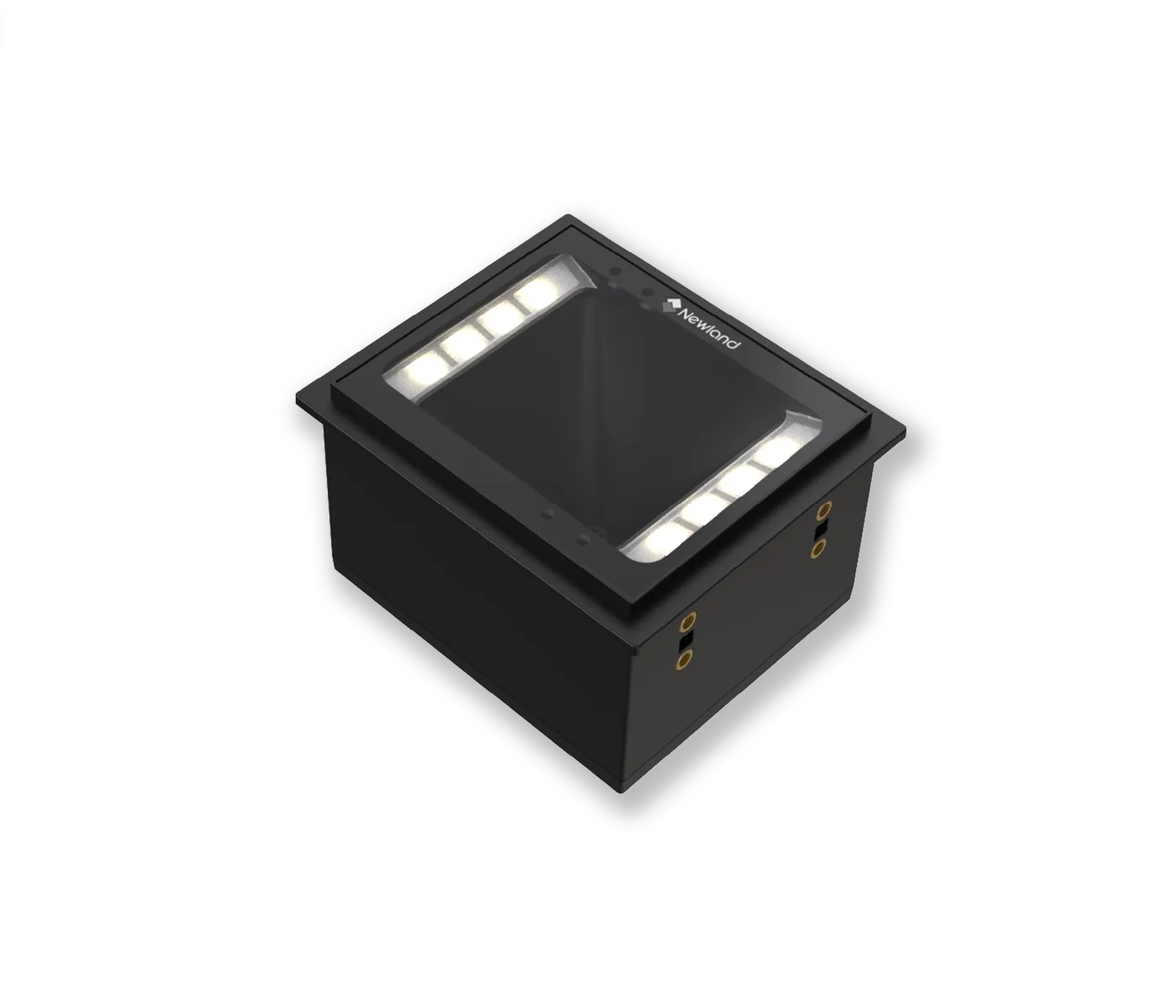

產品規格
-
解碼能力
1D, 2D -
形状系数
All-in-One -
介面
RS-232, USB -
照明
White LED -
產品尺寸
-
重量
132g

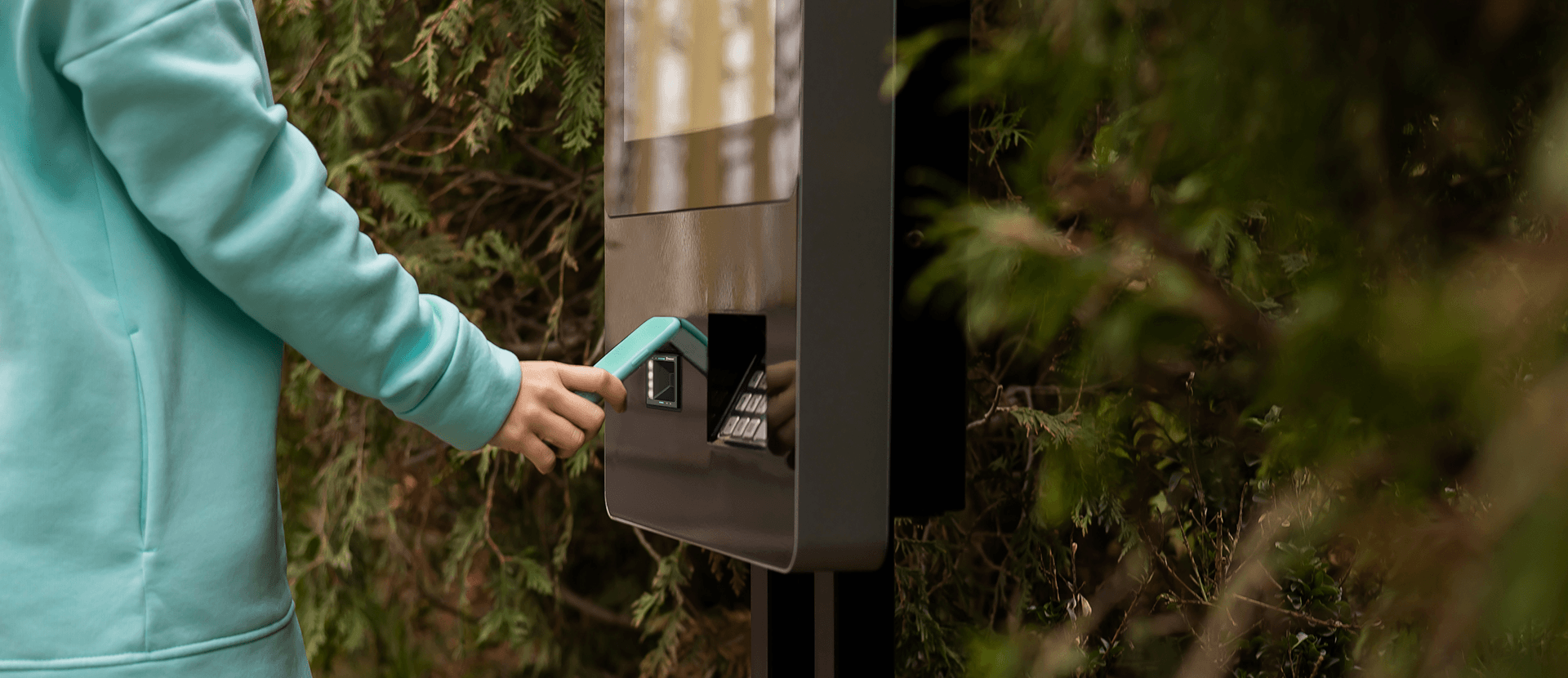

It is easy for the scanner to fit into self-service devices.
An IP65-rated seal renders the scanner impervious to dust, water and other contaminant.
The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.
Armed with Newland’s sixth-generation of technology, this scanner excels at reading on-screen barcodes and printed barcodes.
Support voltage ranges from 5 ~ 24VDC
掃描性能 | 圖像感測器 | 640*480 CMOS |
照明 | 3000K白光LED | |
識讀碼制 | 2D:PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI-Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc. |
|
識讀精度 | 1D:≥4mil | |
標準景深 | EAN-13 (13mil):0-170mm Code 39 (20mil):15-200mm Code 128(10mil):0-160mm QR Code (20mil):0-95mm |
|
掃描視窗 | 45mm×45mm | |
識讀模式 | 感應模式, 連續識讀碼制, 命令模式 | |
最小對比度 | 1D:25% | |
條碼靈敏度 | 旋轉:360°,偏轉:±50°,傾斜:±50° | |
視場角度 | 垂直: 70°,水準: 55° |
機械/電氣參數 | 通訊介面 | RS-232, USB |
工作電壓 | 5VDC±5% | |
電流@5VDC | 工作電流(RMS): 120mA 待機 : 63mA |
|
外觀尺寸 | 78.7(W)×47.7(D)×67.7(H)mm (最大值) (不含線材) | |
重量 | 132g | |
提示方式 | 蜂鳴器、多色LED指示燈 |
環境參數 | 工作溫度 | -20℃ to 60℃ (-4°F to 140°F) |
儲存溫度 | -40℃ to 85℃ (-40°F to 185°F) | |
工作濕度 | 5%~95%(無凝結) | |
ESD | ±15kV(非接觸放電) ±8kV(接觸放電) |
|
密封性 | IP67(不包括介面) |
配件列表 | 線材 | 可選 : USB線,用於連接掃描儀和資訊接收主機 可選 : RS-232資料線,用於連接掃描儀和資訊接收主機 可選 : RS-485和Wiegand資料線,用於連接掃描儀和資訊接收主機 |
電源適配器 | 可選: DC5V電源適配器,透過RS-232資料線為掃描儀供電。 |
圖像感測器 | |
---|---|
640*480 CMOS |
照明 | |
---|---|
3000K白光LED |
識讀碼制 | |
---|---|
2D:PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI-Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc. |
識讀精度 | |
---|---|
1D:≥4mil |
標準景深 | |
---|---|
EAN-13 (13mil):0-170mm Code 39 (20mil):15-200mm Code 128(10mil):0-160mm QR Code (20mil):0-95mm |
掃描視窗 | |
---|---|
45mm×45mm |
識讀模式 | |
---|---|
感應模式, 連續識讀碼制, 命令模式 |
最小對比度 | |
---|---|
1D:25% |
條碼靈敏度 | |
---|---|
旋轉:360°,偏轉:±50°,傾斜:±50° |
視場角度 | |
---|---|
垂直: 70°,水準: 55° |
通訊介面 | |
---|---|
RS-232, USB |
工作電壓 | |
---|---|
5VDC±5% |
電流@5VDC | |
---|---|
工作電流(RMS): 120mA 待機 : 63mA |
外觀尺寸 | |
---|---|
78.7(W)×47.7(D)×67.7(H)mm (最大值) (不含線材) |
重量 | |
---|---|
132g |
提示方式 | |
---|---|
蜂鳴器、多色LED指示燈 |
工作溫度 | |
---|---|
-20℃ to 60℃ (-4°F to 140°F) |
儲存溫度 | |
---|---|
-40℃ to 85℃ (-40°F to 185°F) |
工作濕度 | |
---|---|
5%~95%(無凝結) |
ESD | |
---|---|
±15kV(非接觸放電) ±8kV(接觸放電) |
密封性 | |
---|---|
IP67(不包括介面) |
線材 | |
---|---|
可選 : USB線,用於連接掃描儀和資訊接收主機 可選 : RS-232資料線,用於連接掃描儀和資訊接收主機 可選 : RS-485和Wiegand資料線,用於連接掃描儀和資訊接收主機 |
電源適配器 | |
---|---|
可選: DC5V電源適配器,透過RS-232資料線為掃描儀供電。 |
