Newlandの第6世代UIMG®テクノロジーを搭載し、スキャンエンジンは低コントラスト、ラミネート加工、破損、破れ、歪み、しわなどの低品質バーコードも迅速かつ容易にデコードできます。
最新技術に対応し、NLS-CM30はIICおよびMIPIインターフェースを搭載。最新プロセッサーへの簡単な統合を実現します。

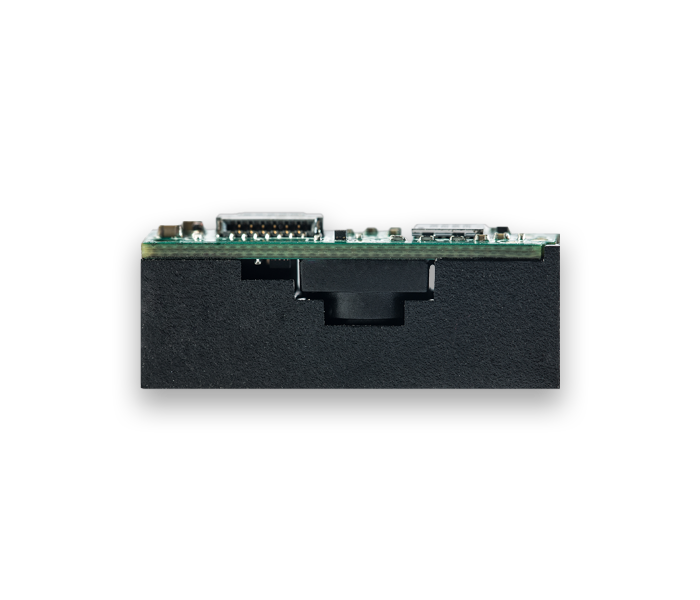

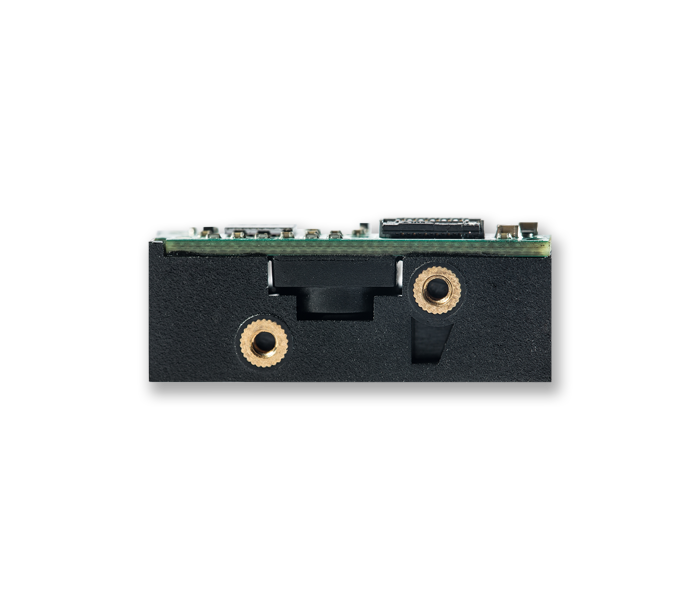

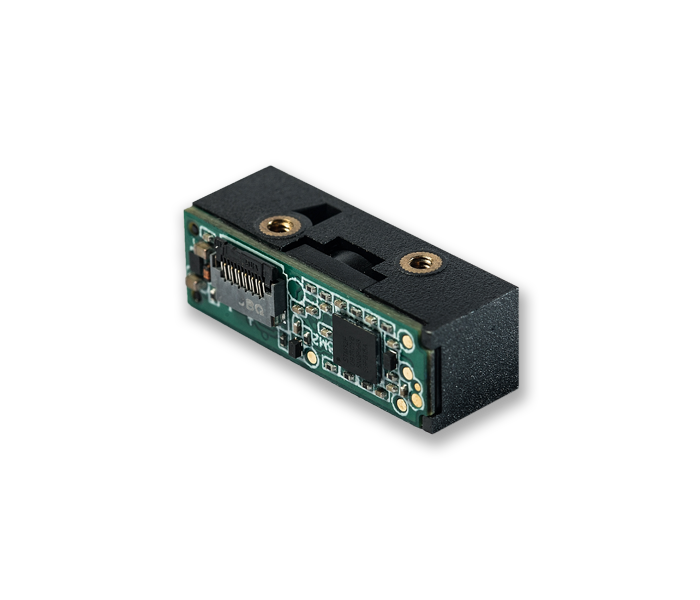

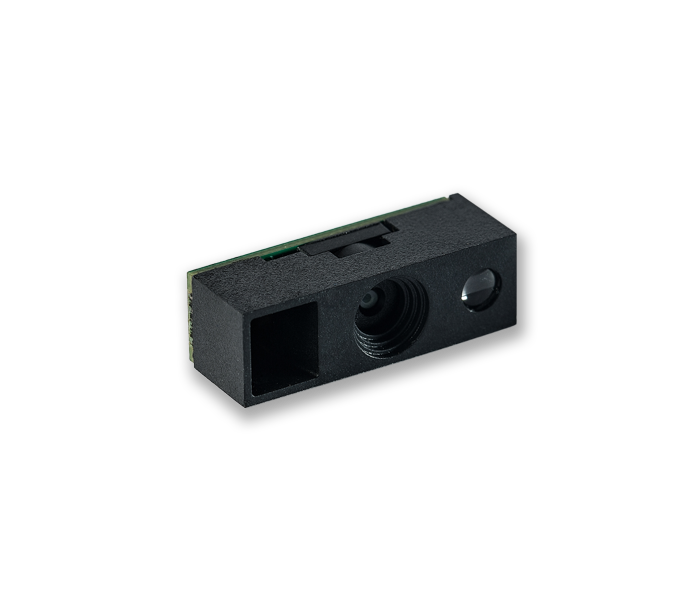

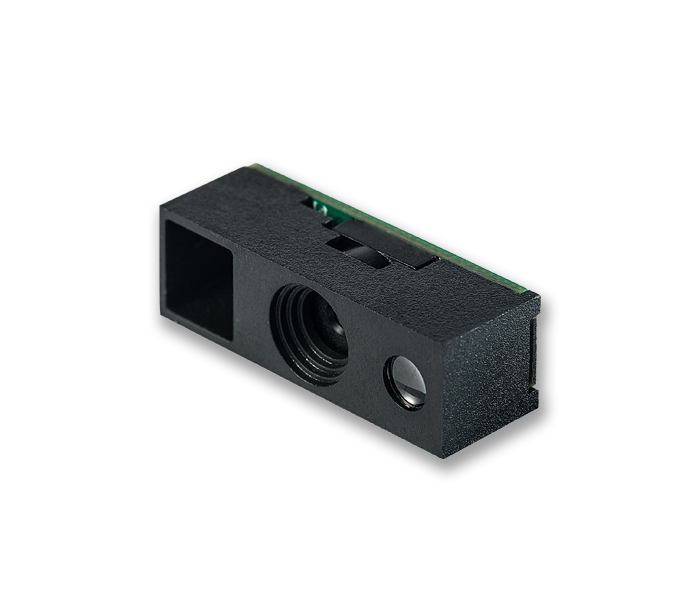

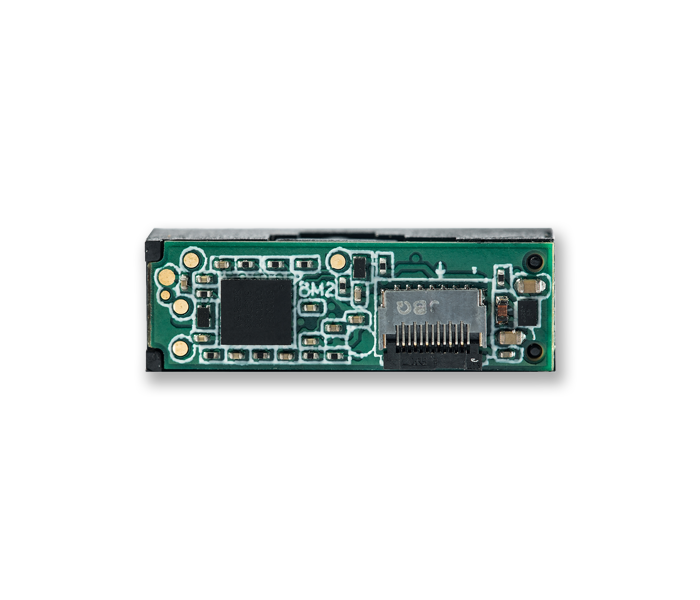

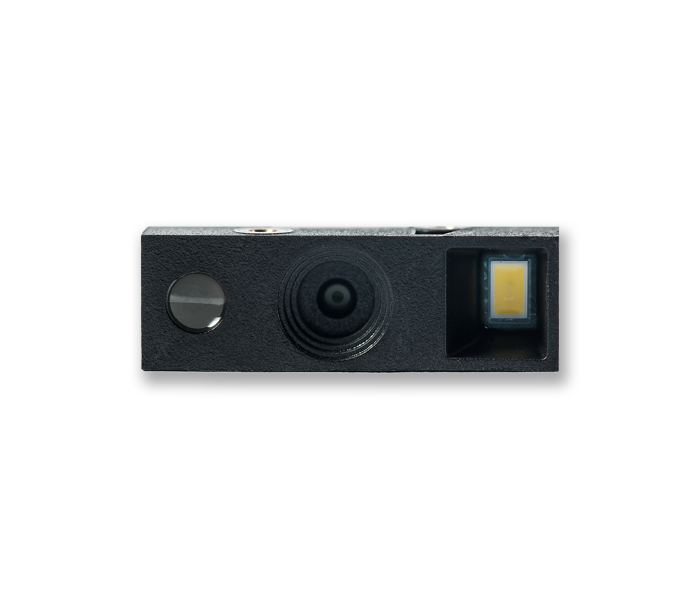

イメージャーセンサーとエイマーをシームレスに統合し、スキャンエンジンは極めて小型・軽量。小型機器への搭載も容易です。
スキャンエンジンに組み込まれた先進技術により、消費電力を削減し、長寿命化を実現しました。
Performance | Image Sensor | 640*480 CMOS |
| Illumination | White LED | |
| Aiming | Red LED (625nm) | |
| Symbologies | 2D PDF417, QR Code, Data Matrix 1D code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6,ITF-14, ISBN, Code 93,UCC/EAN-128, GS1Databar, Matrix 2 of 5,Code 11,Industrial 2 of 5, Standard 2 of 5.Plessey, MSPlessey |
|
| Resolution | ≥3mil | |
| Typical Depth of Field | EAN-13(13mil):60mm-330mm Code 39 (5mil):65mm-150mm PDF417(6.7mil):60mm-120mmData Matrix(10mil):50mm-120mm OR Code(15mil):35mm-180mm |
|
| Min Symbol Contrast | 25% | |
| Scan Angle | Roll: 360°, Pitch: ± 60°, Skew: ± 60° | |
| Field of View | Horizontal 42°, Vertical 31.5° |
Physical | Interface | IIC, MIPI |
| Operating Voltage | 3.3VDC±5% | |
| Current | Operating105mA(typical),110mA(max.) Standby 27mA Idle <100uA |
|
| Dimensions | 8.8(D)x21.5(W)x7.0(H)mm(max.) | |
| Weight | 1.1g |
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux (natural light) |
Certifications | FCC Part15 Class B, CE EMC Class B, ROHS, IEC62471 |
Accessories | Cable | Optional 34-PIN board to board cable used to connect the EVK-CM60 to a host device. |
