BS8060 Data Formatter Setting replace GS to $ via serial port
Announcer: Ivan Time: 23rd Jul 2021
Share to :
MORE
310 views 0 comments



1、Use usb data cable to connect pc and BS8060



2、Use your BS8060 to scan following barcode to set your BS8060 into USB CDC mode




                  USB





                USB CDC



3、Scan one of the following four Settings as required to enable the dataformat function.

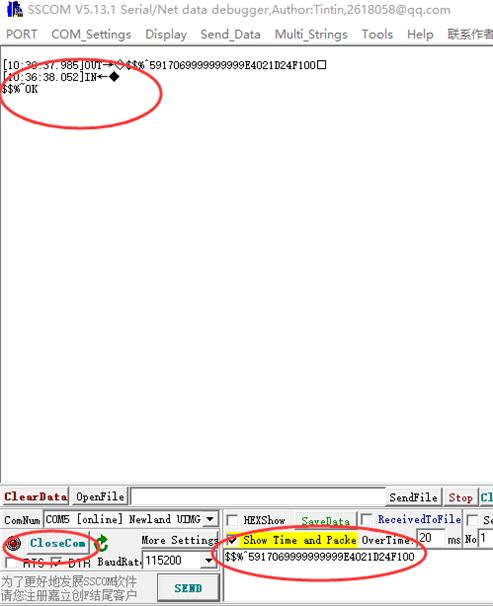

4、Open your SSCOM software ,Select the corresponding device "[online]NEWLAND UIMG barcode scanner USB device" from “ComNum”, click “OpenCom”, and enter the corresponding command (corresponding command:$$%^5917069999999999E4021D24F100) in the input box. Click SEND, the window of SSCOM will reply to $$%^OK and the setting will be successful.

IMG_256
