HR11+ How to make a dataformatter via easyset to generate a config barcode
Announcer: Ivan Time: 27th Jul 2021
Share to :
MORE
1251 views 0 comments

How to make a dataformatter via easyset to generate a config barcode

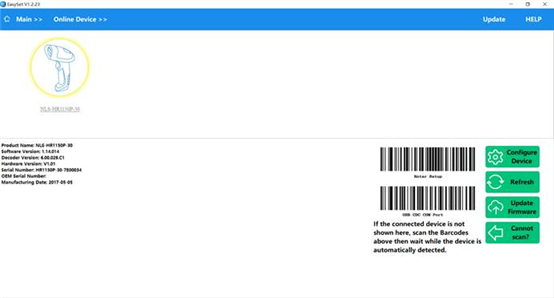

1.Connect Device with Easyset

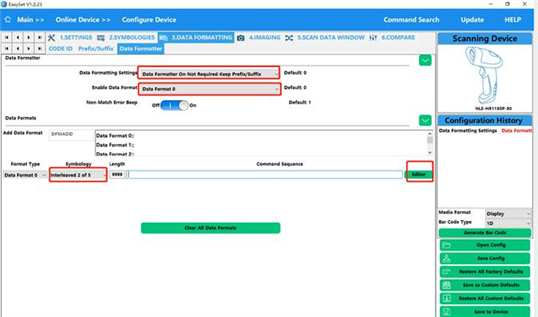

2.Enter the device and choose DATA FORMATTING

3.Data Formatting settings: Data Formatter On-Not Required-Keep Prefix/Suffix

 Symbology: Interleaved 2 of 5

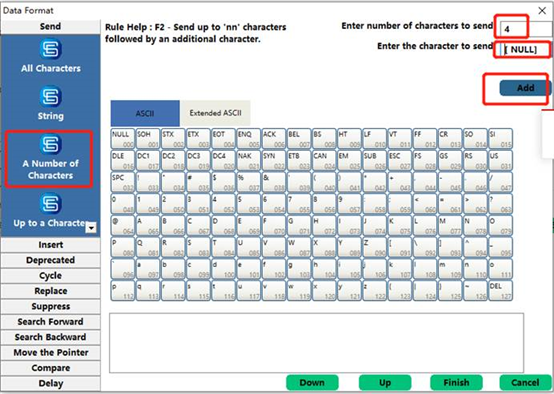

4. Send  “A number of characters”

Enter number of characters to send:4

Enter the character to send:[NULL]

Add

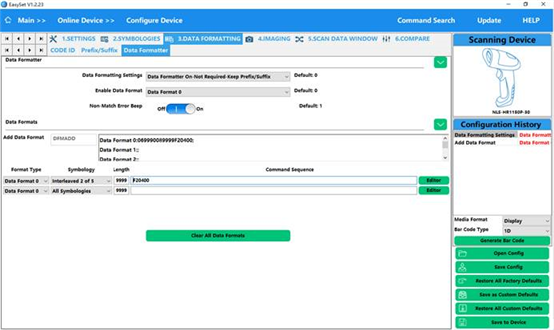

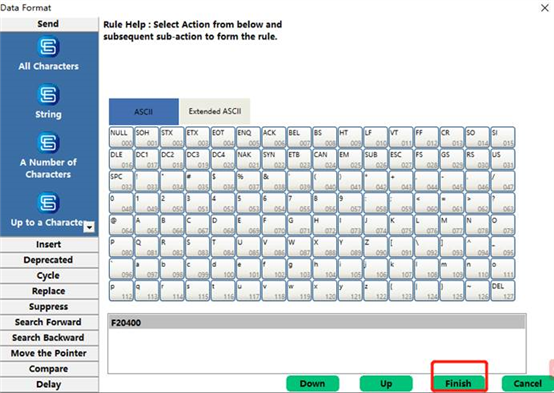

5. Finish



6.

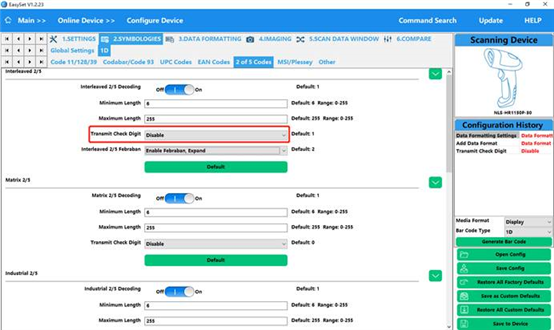

7. Config the Interleaved 2 of 5

Transmit Check Digit: Disable

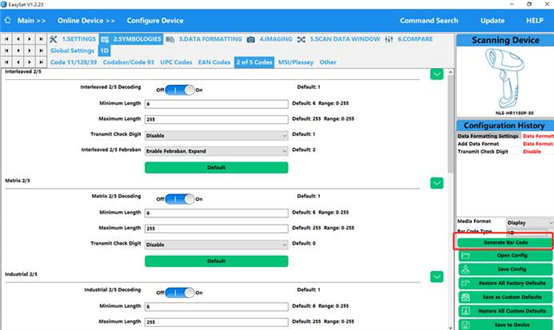

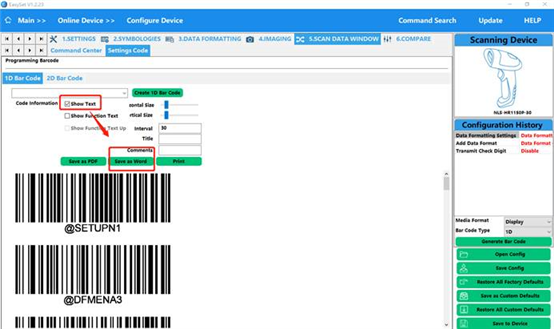

8. if you want to output the config barcode,Click

“Generate Bar Code”

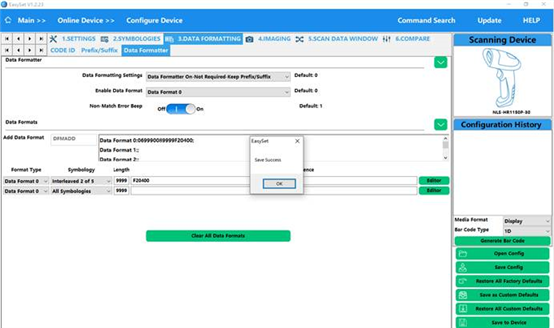

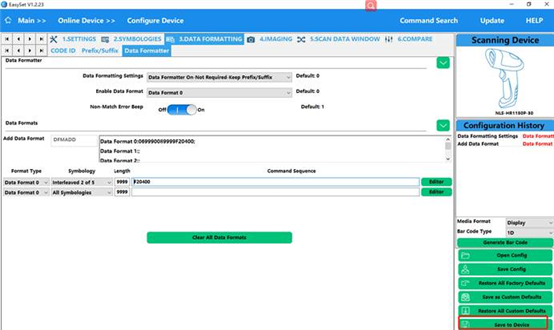

9.Save to Device, then it’s successfully config the online device.
