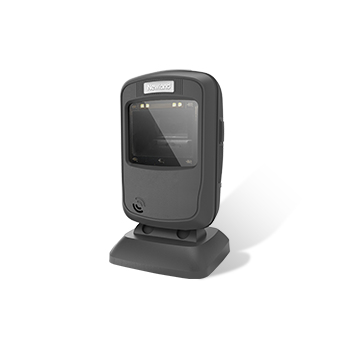

FR42 Desktop Scanner

Product specifications
  • Decode Capability
    1D, 2D
  • Connectivity
    Corded
  • Dimension
    82.0×77.0×146.0mm
  • Weight
    246g
  • Sealing
    IP52
  • Interface
    USB
Features
  • CMOS
    CMOS
  • 1D Barcode
    1D Barcode
  • 2D Barcode
    2D Barcode
  • USB
    USB
  • 1.5m
    1.5m
  • IP52
    IP52
Vertical
  • Retail
    Retail
  • Features
  • Specifications
  • Downloads
  • Accessories
Features
  • 1.5m Drop Resistance

  • The scanner withstands multiple 1.5m drops to concrete (for six sides, one drop per side).

  • IP52-rated Sealing

  • An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants

  • IR Trigger

  • The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

  • Snappy On-screen Barcode Capture

  • Armed with Newland’s latest technology, this scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

  • Superior Motion Tolerance

  • Exceptional motion tolerance (2m/s) and large FOV (horizontal 62°, vertical 48°) enhance user experience.

Specifications
Performance
Image Sensor 640×480 CMOS
Illumination White LED
Symbologies 2D: PDF417, QR Code, Data Matrix, Micro QR, etc..
1D:Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128, AMI 128, Codabar, Code 93, UPC-A, UPC-E, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-14, ITF-6, Standard 2 of 5, MSI-Plessey, Plessey, GS1 Databar, etc.
Resolution ≥3mil
Typical Depth of Field EAN-13: 5mm-145mm (13mil)
QR Code: 5mm-195mm (15mil)
Scan Angle Pitch: ±55°, Roll: 360°, Skew: ±65°
Min. Symbol Contrast 25%
Field of View Horizontal 62°, Vertical 48°
Motion Tolerance 2m/s
Scan Mode Sense mode, continuous mode
Physical
Dimensions (L×W×H) 82.0×77.0×146.0mm
Weight 246g
Notification Beep, LED
Operating Current 85mA(typical), 92mA(max.)
Interfaces USB
Operating Voltage 5VDC±5%
Light Intensity 0~15000lux(screen barcode);0~120000lux(paper barcode)
Environmental
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±12 KV (air discharge);
±8 KV (contact discharge)
Drop 1.5m/4.9ft
Sealing IP52
Certifications
IEC 62471. RoHS, CE, FCC
Performance
Image Sensor
640×480 CMOS
Illumination
White LED
Symbologies
2D: PDF417, QR Code, Data Matrix, Micro QR, etc..
1D:Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128, AMI 128, Codabar, Code 93, UPC-A, UPC-E, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-14, ITF-6, Standard 2 of 5, MSI-Plessey, Plessey, GS1 Databar, etc.
Resolution
≥3mil
Typical Depth of Field
EAN-13: 5mm-145mm (13mil)
QR Code: 5mm-195mm (15mil)
Scan Angle
Pitch: ±55°, Roll: 360°, Skew: ±65°
Min. Symbol Contrast
25%
Field of View
Horizontal 62°, Vertical 48°
Motion Tolerance
2m/s
Scan Mode
Sense mode, continuous mode
Physical
Dimensions (L×W×H)
82.0×77.0×146.0mm
Weight
246g
Notification
Beep, LED
Operating Current
85mA(typical), 92mA(max.)
Interfaces
USB
Operating Voltage
5VDC±5%
Light Intensity
0~15000lux(screen barcode);0~120000lux(paper barcode)
Environmental
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
5%~95% (non-condensing)
ESD
±12 KV (air discharge);
±8 KV (contact discharge)
Drop
1.5m/4.9ft
Sealing
IP52
Certifications
IEC 62471. RoHS, CE, FCC
