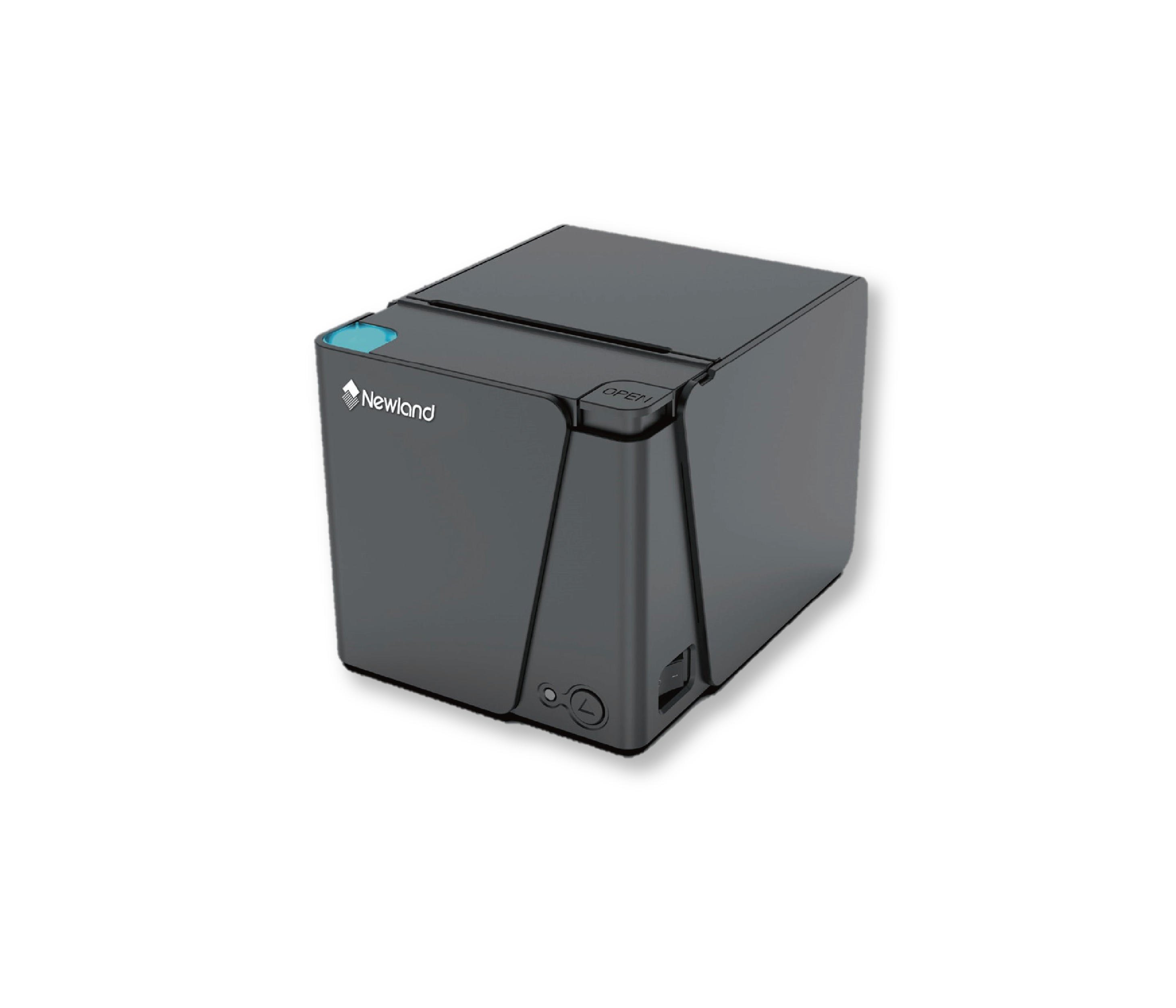

BTP-N66 POS Thermal Printer

contact us
Product specifications
  • Dimension
    123(W) x 158(D) x 116(H) mm
  • Print Width
    Max.72 mm
  • Label Software
    N/A
  • Print Speed
    Max.220mm/s
  • Printing
    Direct Thermal
  • Interface
    USB+Ethernet, USB+Bluetooth
Features
  • BarTender
    BarTender
  • Reliable Label Production
    Reliable Label Production
  • High-Speed Printing
    High-Speed Printing
  • Ethernet
    Ethernet
Vertical
  • Retail
    Retail
  • Healthcare
    Healthcare
  • Features
  • Specifications
  • Downloads
Features

  • Compact design, 35% smaller than similar products

  • Diamond-like coating TPH for long service life

  • Support full and half cut paper cutting function

  • Up to 220mm/s printing speed

  • With photoelectric alarm

Specifications
Performance
 Resolution 203dpi
Printing Direct Thermal
Max. Print Width 72mm
Max. Print Speed 220mm/s
Memory Flash: 512KB can be extend to 4MB
Interface USB+Ethernet, USB+Bluetooth
Paper
 Paper Type Continuous paper
Paper thickness 0.06mm~0.08mm
Paper roll width 80±0.5mm
Paper roll OD Max. 80mm
Core ID of the paper roll 12.5mm
Core OD of the paper roll 16mm
Paper Cutting Full cut, Partial cut, Tear off
Barcodes Fonts Graphics
 Barcodes 1D: UPC-A, UPC-E, JAN8(EAN8), JAN 13(EAN13), Code 39, Code 93, Code 128, ITF, Codabar
2D: OR
Fonts Standard ASCII(12×24), Compressed ASCII(9×17)
Character Set GB2312
Optional GB18030, Korea, Traditional Chinese, Japanese, English, HK
Physical
 Dimension 123(W)x158(D)x116(H)mm
Weight Approx. 2Kg
Buttons and LED 1 buttons and 2 LED
Power Adapter Input: AC 100~240V, 50/60Hz; Output: 24V, 2.5A
Environmental
 Operation Conditions 5°C~ 45°C, 20%~90% RH (40°C)
Storage Conditions 40°C~60°C, 20%~93% (40°C)
Reliability
 Print head life time 100KM
Cutter life time 1,000,000 cuts
Performance
Resolution
203dpi
Printing
Direct Thermal
Max. Print Width
72mm
Max. Print Speed
220mm/s
Memory
Flash: 512KB can be extend to 4MB
Interface
USB+Ethernet, USB+Bluetooth
Paper
Paper Type
Continuous paper
Paper thickness
0.06mm~0.08mm
Paper roll width
80±0.5mm
Paper roll OD
Max. 80mm
Core ID of the paper roll
12.5mm
Core OD of the paper roll
16mm
Paper Cutting
Full cut, Partial cut, Tear off
Barcodes Fonts Graphics
Barcodes
1D: UPC-A, UPC-E, JAN8(EAN8), JAN 13(EAN13), Code 39, Code 93, Code 128, ITF, Codabar
2D: OR
Fonts
Standard ASCII(12×24), Compressed ASCII(9×17)
Character Set
GB2312
Optional GB18030, Korea, Traditional Chinese, Japanese, English, HK
Physical
Dimension
123(W)x158(D)x116(H)mm
Weight
Approx. 2Kg
Buttons and LED
1 buttons and 2 LED
Power Adapter
Input: AC 100~240V, 50/60Hz; Output: 24V, 2.5A
Environmental
Operation Conditions
5°C~ 45°C, 20%~90% RH (40°C)
Storage Conditions
40°C~60°C, 20%~93% (40°C)
Reliability
Print head life time
100KM
Cutter life time
1,000,000 cuts
Downloads
Specification Sheets
  • BTP-N66_Datasheet_en
    BTP-N66_Datasheet_en

    Language: English

    Download
