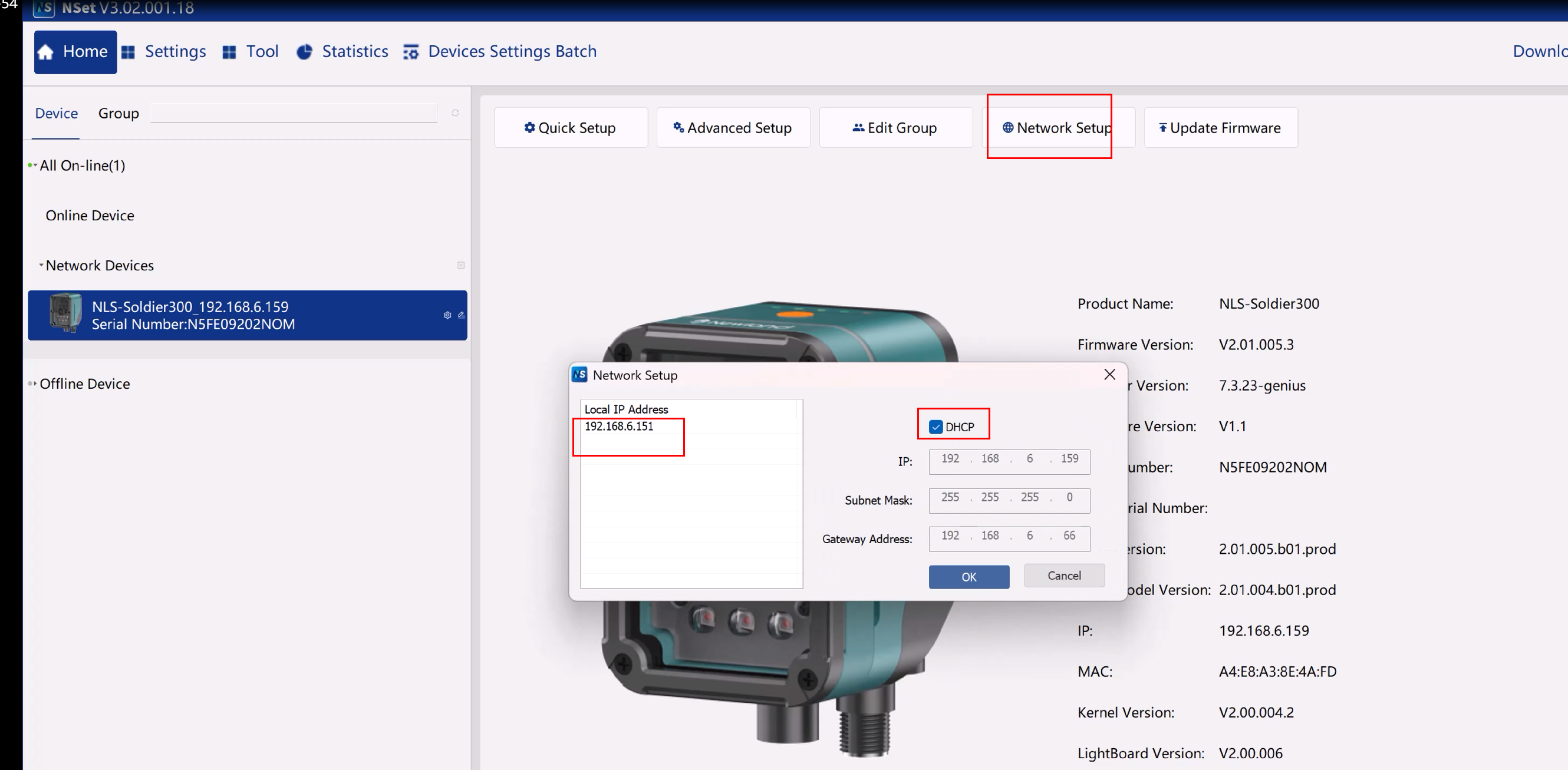

1、Use network communication (Connect the network cable)
    1）Select the network device on the left
    2）Network Setup -> Select “DHCP”
    3）Remember “Locale IP Address”

2、Storage path setting

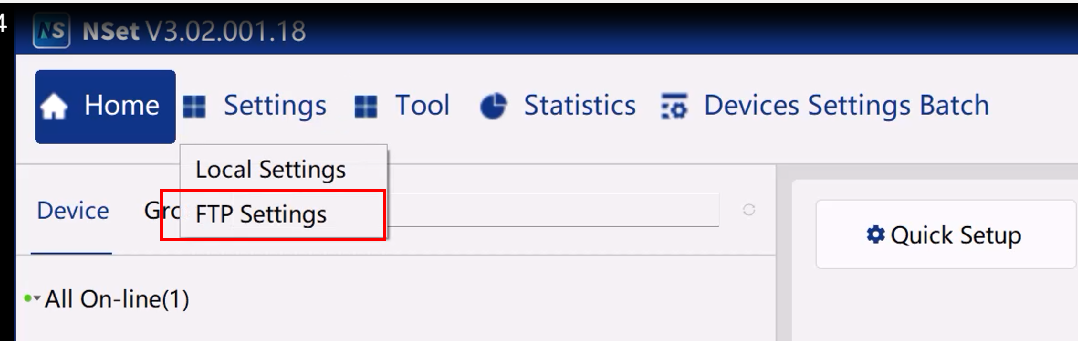

    1） Settings -> FTP Settings

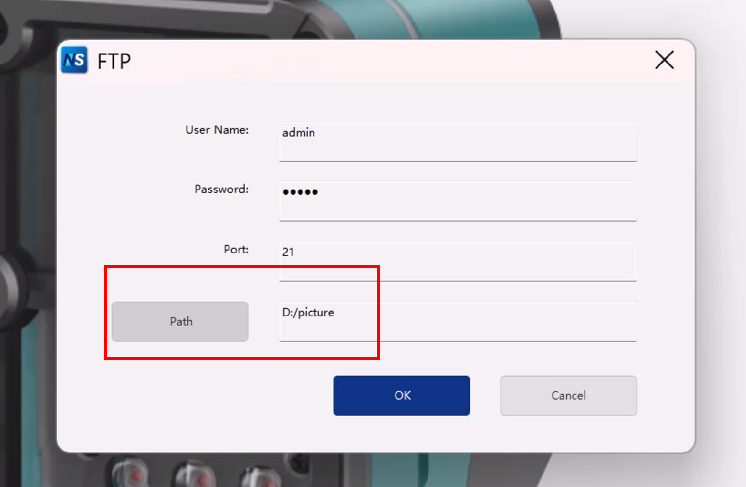

    2）Path: Select the storage path for the images

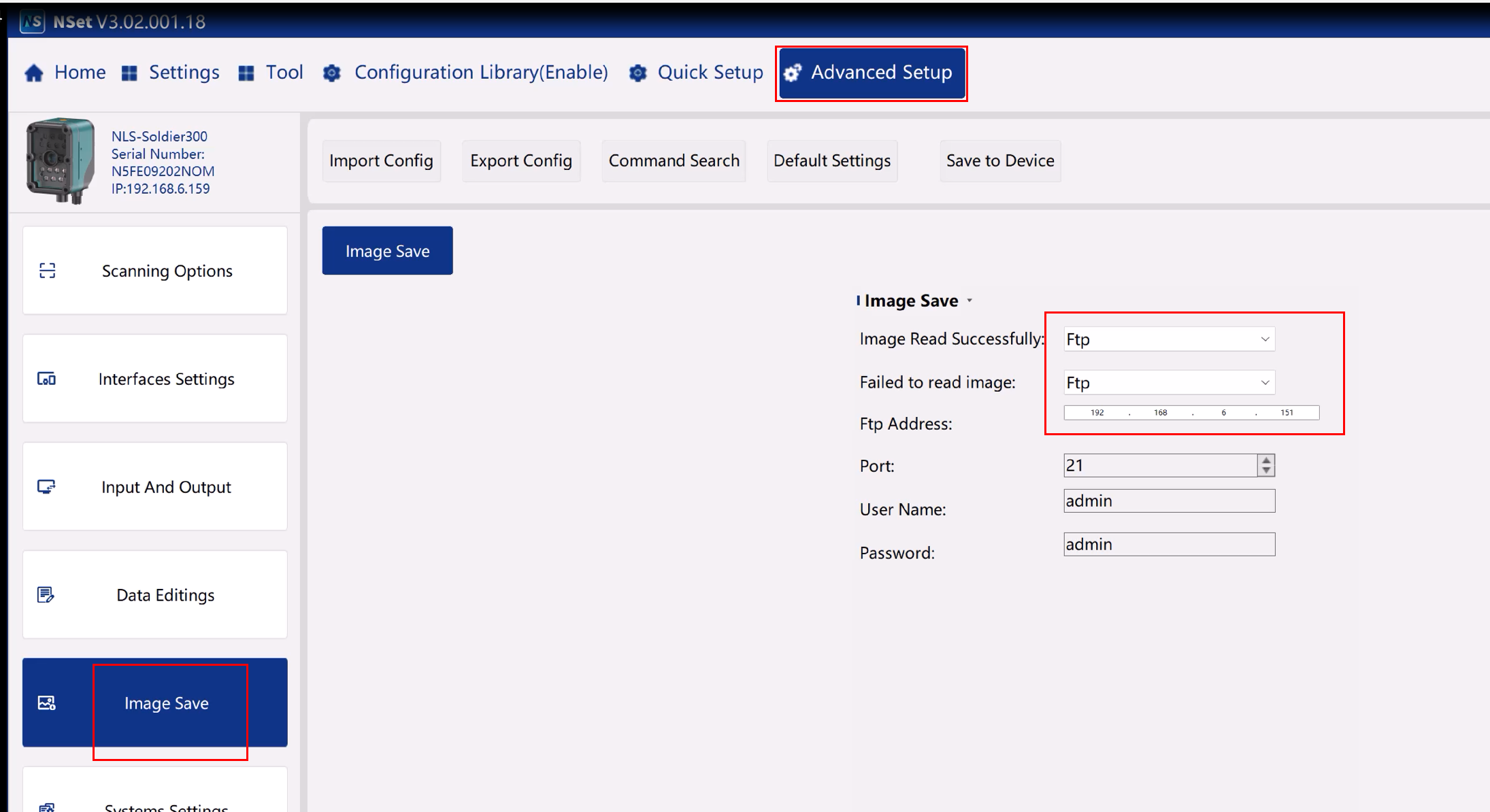

3、Image Save
    1）Advance Setup -> Image Save
    2）Image Read Successfully -> Select ”Ftp”
    3）Fail to read image -> Select ”Ftp”
    4）Ftp Address: Enter “Locale IP Address”

4、Read Barcode

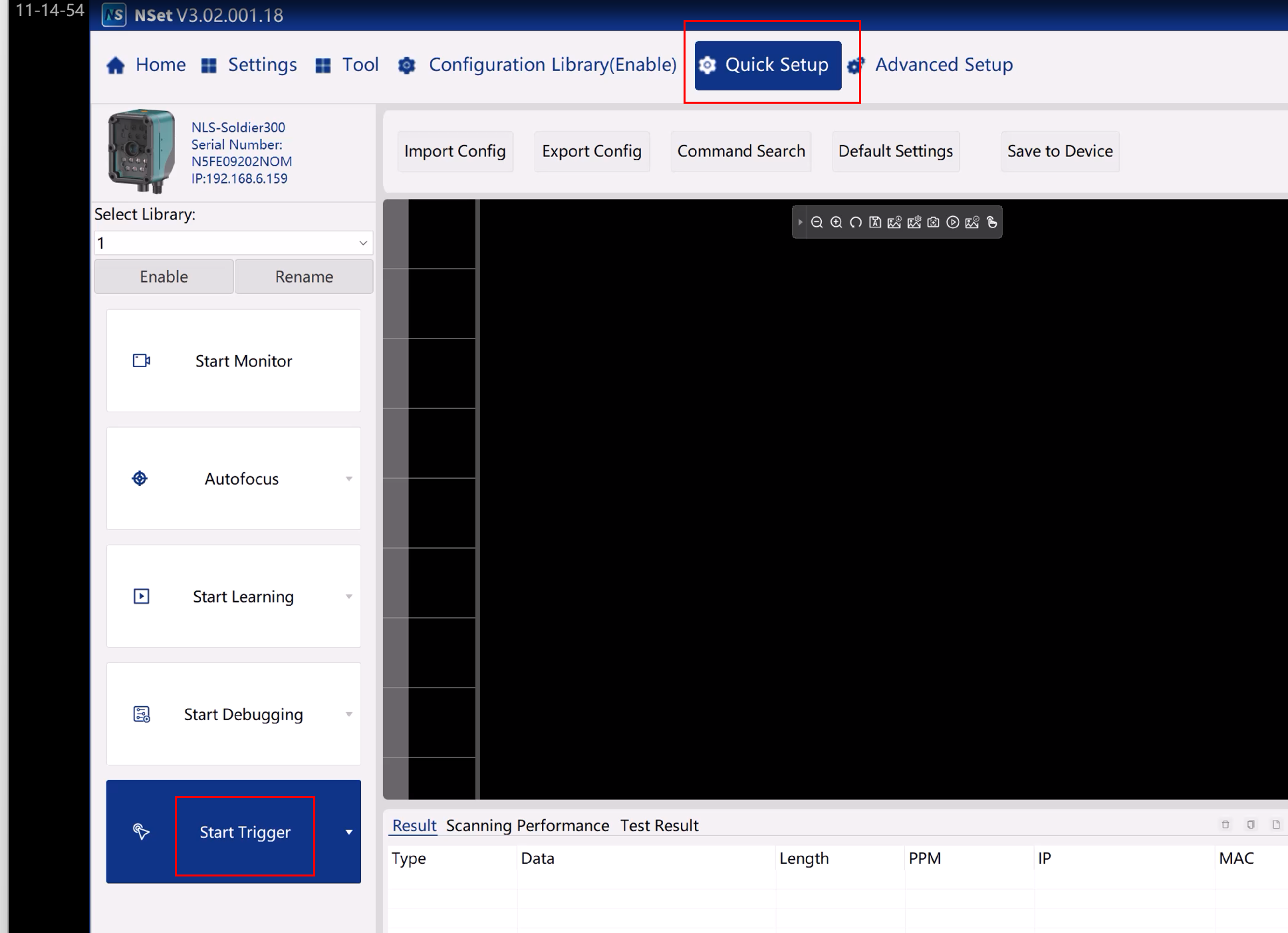

    1）Quick Setup -> “Start Trigger”
    2）Read Barcode

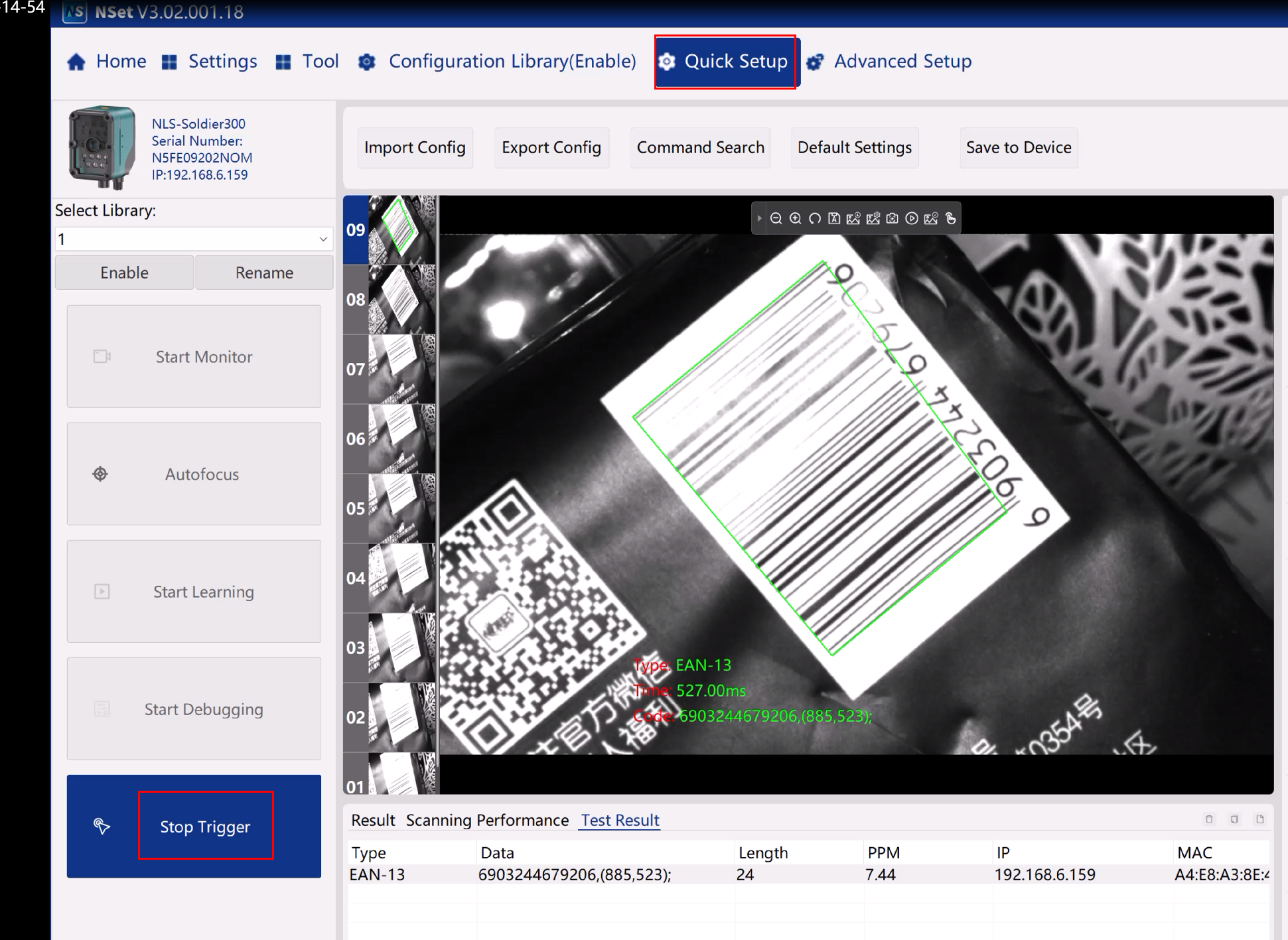

    3）Quick Setup -> “Stop Trigger”

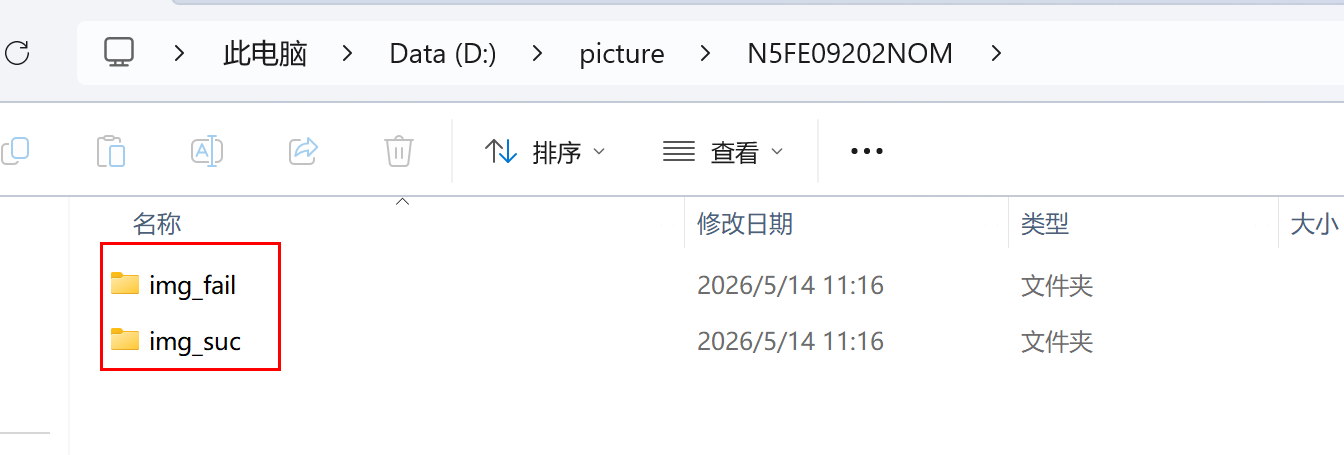

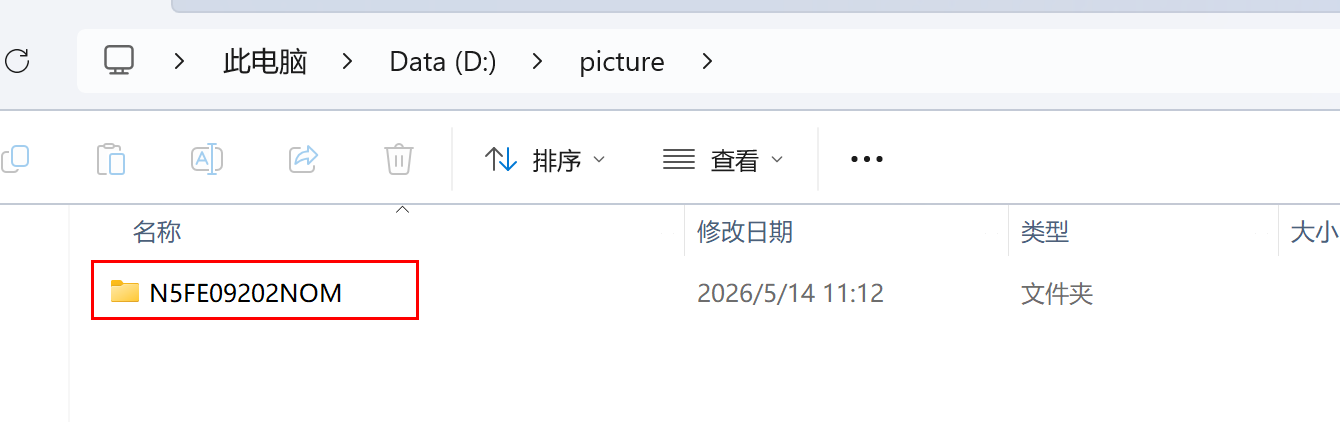

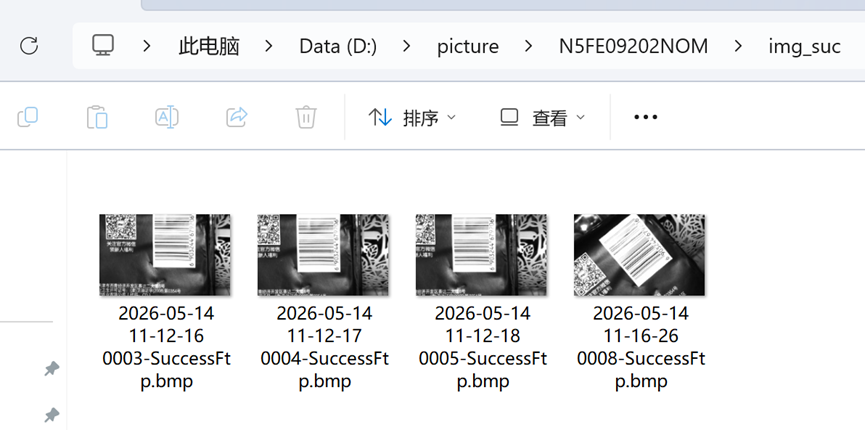

5、Check the Images

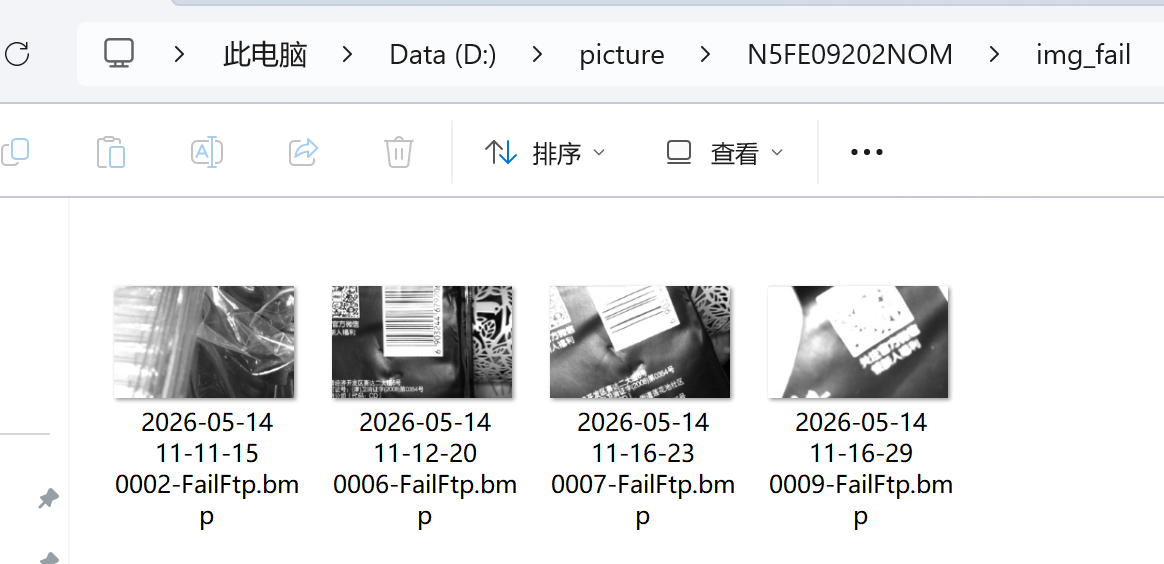

    1）Open the storage path to check the images
