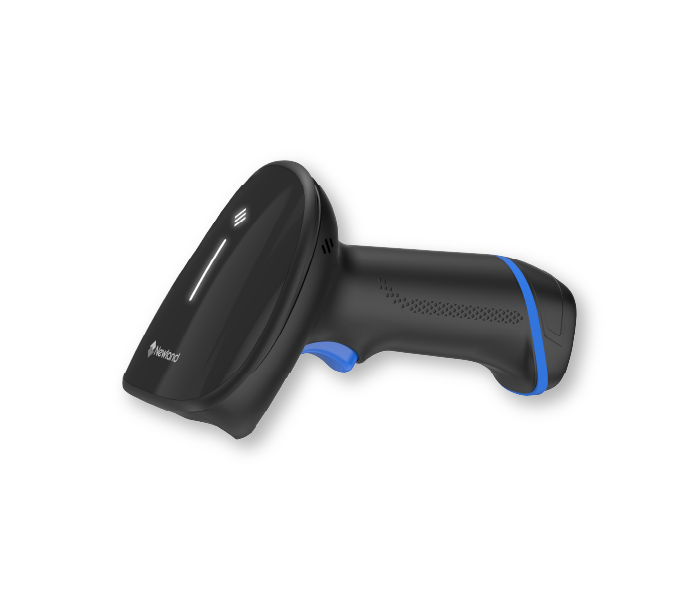

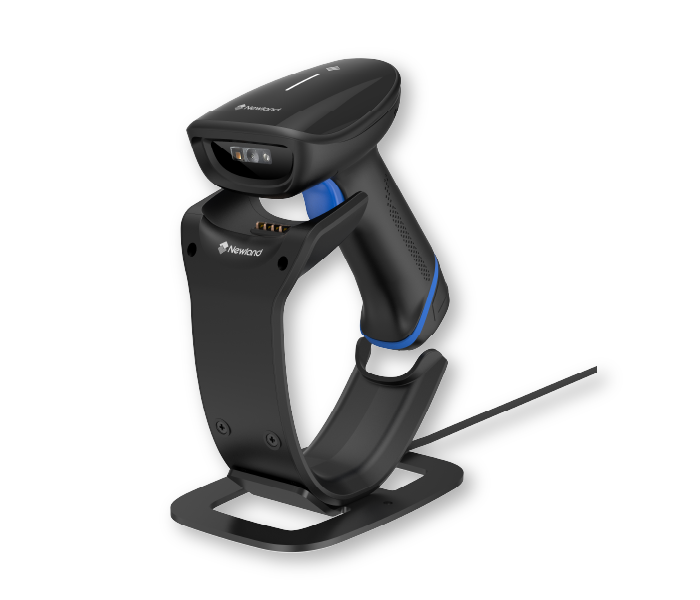

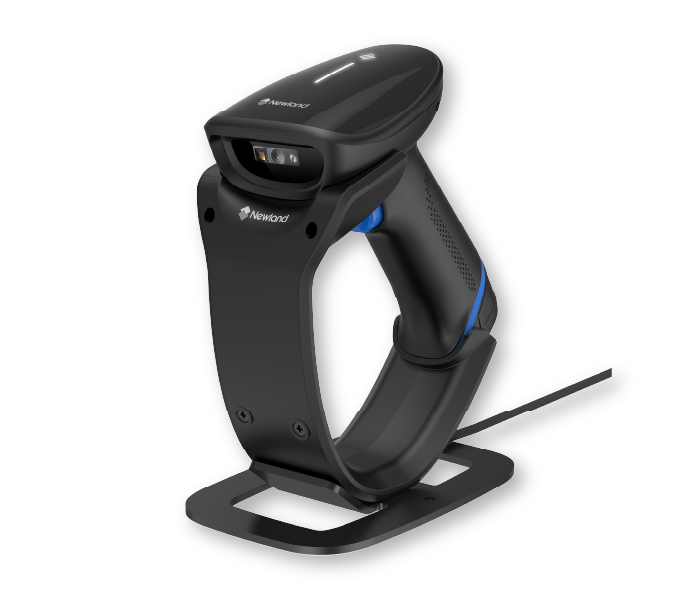

HR2000-BT Handheld Scanner

Product specifications

Decode Capability
1D, 2D
Connectivity
Cordless
Dimension
Cradle: 140×90×144.5mm, Scanner: 117.5×67.5×144mm
Weight
Scanner: 209g, Cradle: 340.5g
Sealing
IP52
Interface
USB Type-A (Support USB-KBW, USB-CDC, HID-POS)

Features

CMOS
1D Barcode
2D Barcode
USB
1.5m
IP52
NSet
2600mAh

Features
Specifications
Downloads
Accessories

Features

Durable Construction

The NLS-HR2000-BT, built into an IP52-sealed and drop resistant (1.5m) housing with no moving parts, fortifies itself inside and out.

Replaceable Battery

With 2600mAh battery, it will run a comfortable 16 hours of continuous use. Replaceable battery ensures continuous functionality and minimizes downtime.

Outstanding Performance

Equipped with an outstanding CPU, this wireless handheld scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.

Reliable Wireless Communication

Adopting the latest Bluetooth 5.0 technology, the NLS-HR2000-BT is able to maintain a reliable wireless connection to transmit data. The communication distances up to 100m.

Specifications

Performance	Image Sensor	640×480 CMOS
	Illumination	White LED
	Aiming	Red LED
	Symbologies	2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Hanxin Code. 1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS).
	Resolution	≥3mil
	Typical Depth of Field	EAN-13: 50mm-260mm (13mil) QR Code: 30mm-170mm (15mil) Code 39: 50mm-115mm (5mil) PDF 417: 50mm-120mm (6.67mil) Data Matrix: 35mm-125mm (10mil)
	Scan Angle	Pitch: ±60°, Roll: 360°, Skew: ±60°
	Field of View	Horizontal 45°, Vertical 34°
	Min. Symbol Contrast	20%

Wireless	Communication Mode	Synchronous mode, asynchronous mode and batch mode
	Radio Technology	Bluetooth 5.0
	Communication Distance	100m (direct line of sight in open air)
	Memory Capacity	16384 pieces
	Battery	2600 mAh lithium-ion battery
	Expected Charge Time	6 hours
	Expected Battery Life	16 hours of continuous operation (scan once per 6 seconds)

Physical	Interface	USB Type-A (Support USB-KBW, USB-CDC, HID-POS)
	Operating	5VDC±5%
	Dimensions (L×W×H)	Scanner: 117.5×67.5×144mm; Cradle: 140×90×144.5mm
	Weight	Scanner: 209g; Cradle:340.5g
	Notification	Beep, LED, vibration

Environmental	Operating Temperature	-10°C to 50°C (14°F to 122°F)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Battery Charge Temperature	0°C to 45°C (32°F to 113°F)
	Humidity	5% ~ 95% (non-condensing)
	ESD	±15 KV (air discharge); ±8 KV (direct discharge)
	Drop	Scanner: 1.5m; Cradle: 1.2m
	Sealing	IP52

Certifications

Certificates & Protection

CE Red, FCC ID, RoHS 2.0, IEC62471

Performance

Image Sensor
640×480 CMOS

Illumination
White LED

Aiming
Red LED

Symbologies
2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Hanxin Code. 1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS).

Resolution
≥3mil

Typical Depth of Field
EAN-13: 50mm-260mm (13mil) QR Code: 30mm-170mm (15mil) Code 39: 50mm-115mm (5mil) PDF 417: 50mm-120mm (6.67mil) Data Matrix: 35mm-125mm (10mil)

Scan Angle
Pitch: ±60°, Roll: 360°, Skew: ±60°

Field of View
Horizontal 45°, Vertical 34°

Min. Symbol Contrast
20%

Wireless

Communication Mode
Synchronous mode, asynchronous mode and batch mode

Radio Technology
Bluetooth 5.0

Communication Distance
100m (direct line of sight in open air)

Memory Capacity
16384 pieces

Battery
2600 mAh lithium-ion battery

Expected Charge Time
6 hours

Expected Battery Life
16 hours of continuous operation (scan once per 6 seconds)

Physical

Interface
USB Type-A (Support USB-KBW, USB-CDC, HID-POS)

Operating
5VDC±5%

Dimensions (L×W×H)
Scanner: 117.5×67.5×144mm; Cradle: 140×90×144.5mm

Weight
Scanner: 209g; Cradle:340.5g

Notification
Beep, LED, vibration

Environmental

Operating Temperature
-10°C to 50°C (14°F to 122°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Battery Charge Temperature
0°C to 45°C (32°F to 113°F)

Humidity
5% ~ 95% (non-condensing)

ESD
±15 KV (air discharge); ±8 KV (direct discharge)

Drop
Scanner: 1.5m; Cradle: 1.2m

Sealing
IP52

Certifications

Certificates & Protection
CE Red, FCC ID, RoHS 2.0, IEC62471

Downloads

Specification Sheets

NLS-HR2000-BT-Datasheet_en_global

NLS-HR2000-BT-Datasheet_en_global

Language: English

Download

Software

JPOS_Newland_Scanner

JPOS_Newland_Scanner

Language: English

Download
NSet

NSet

Language: English

Download
OPOS_Newland_Scanner

OPOS_Newland_Scanner

Language: English

Download
UFCOM_Driver

UFCOM_Driver

Language: English

Download
USB-COM_Driver

USB-COM_Driver

Language: English

Download

Accessories

BTY20

Battery, 2400mAh
