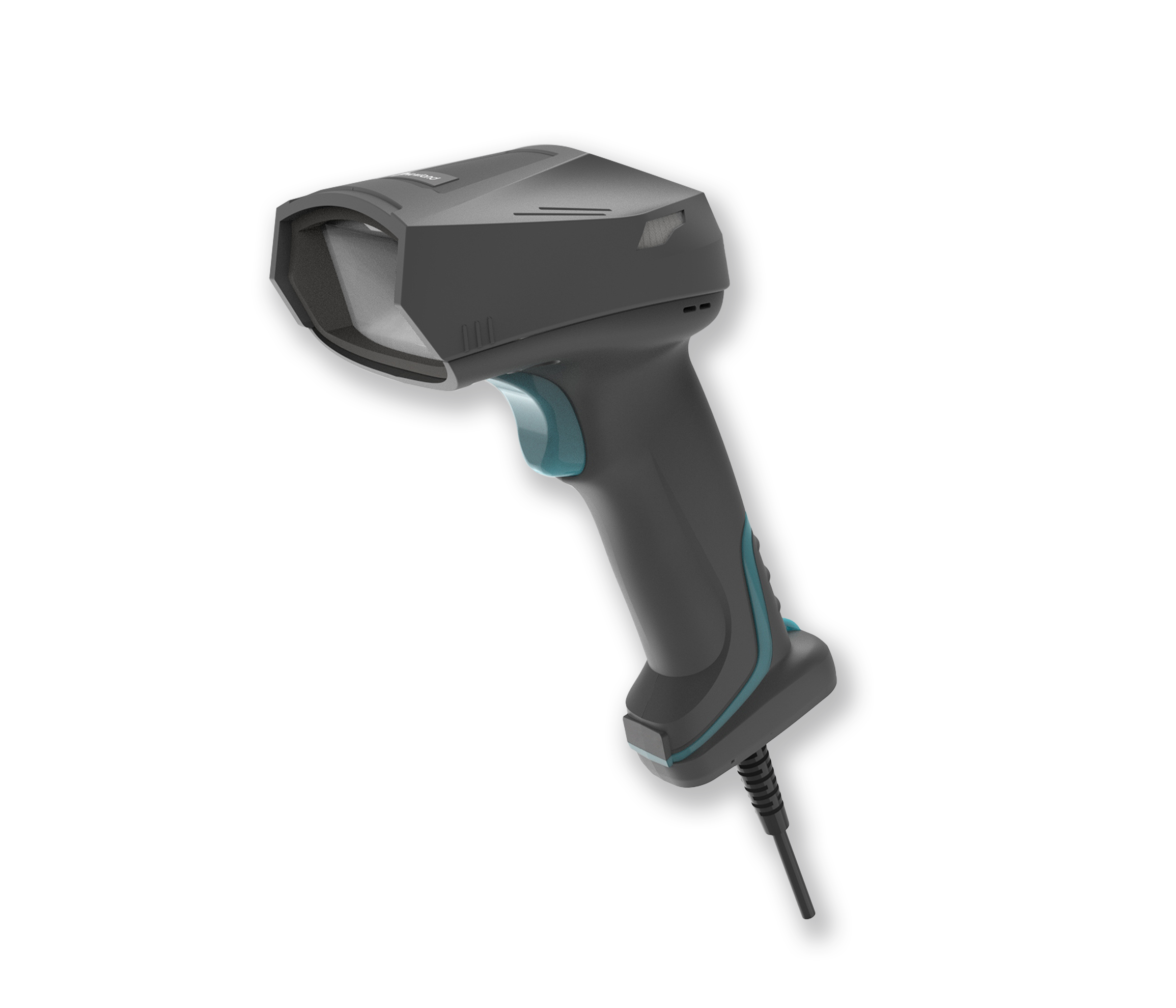

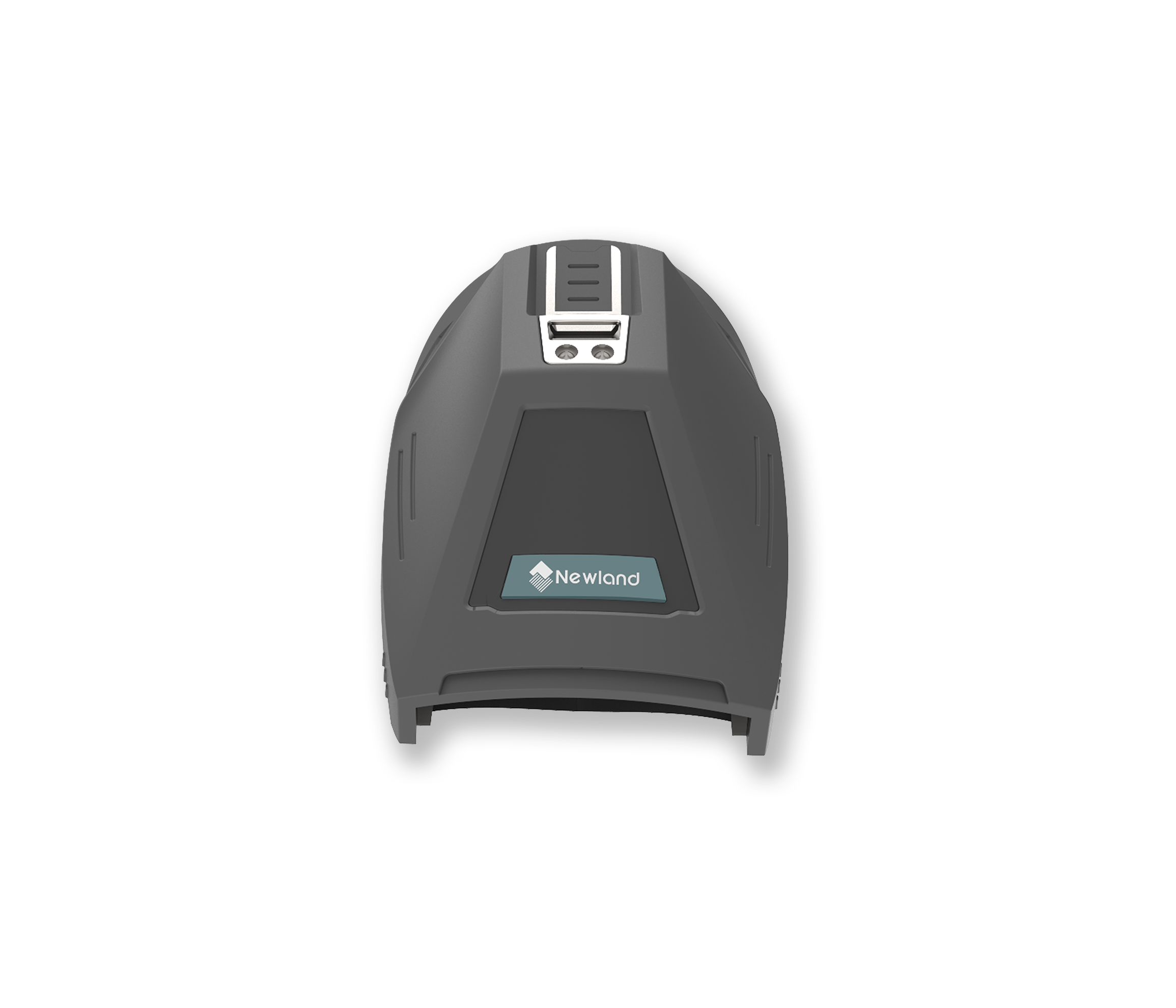

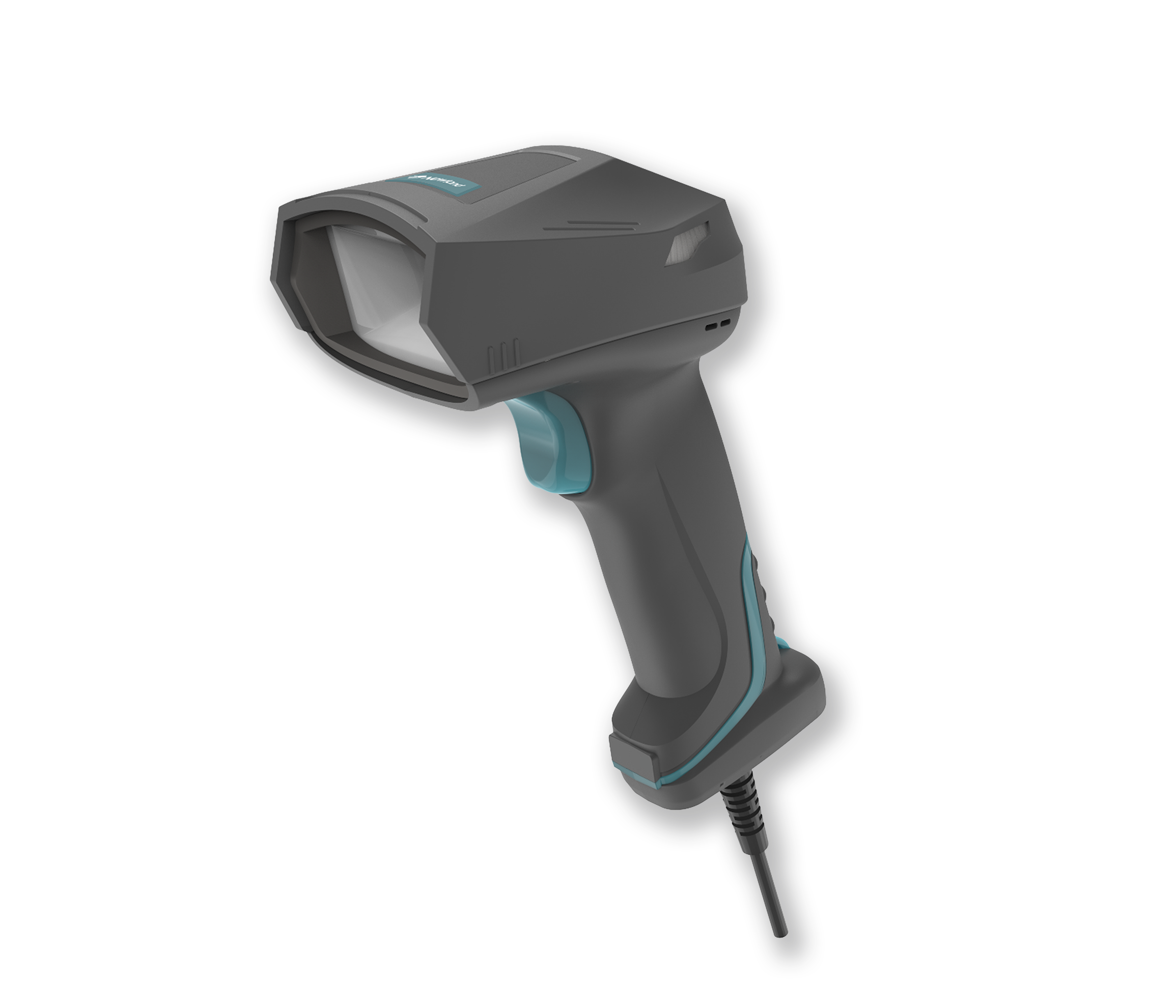

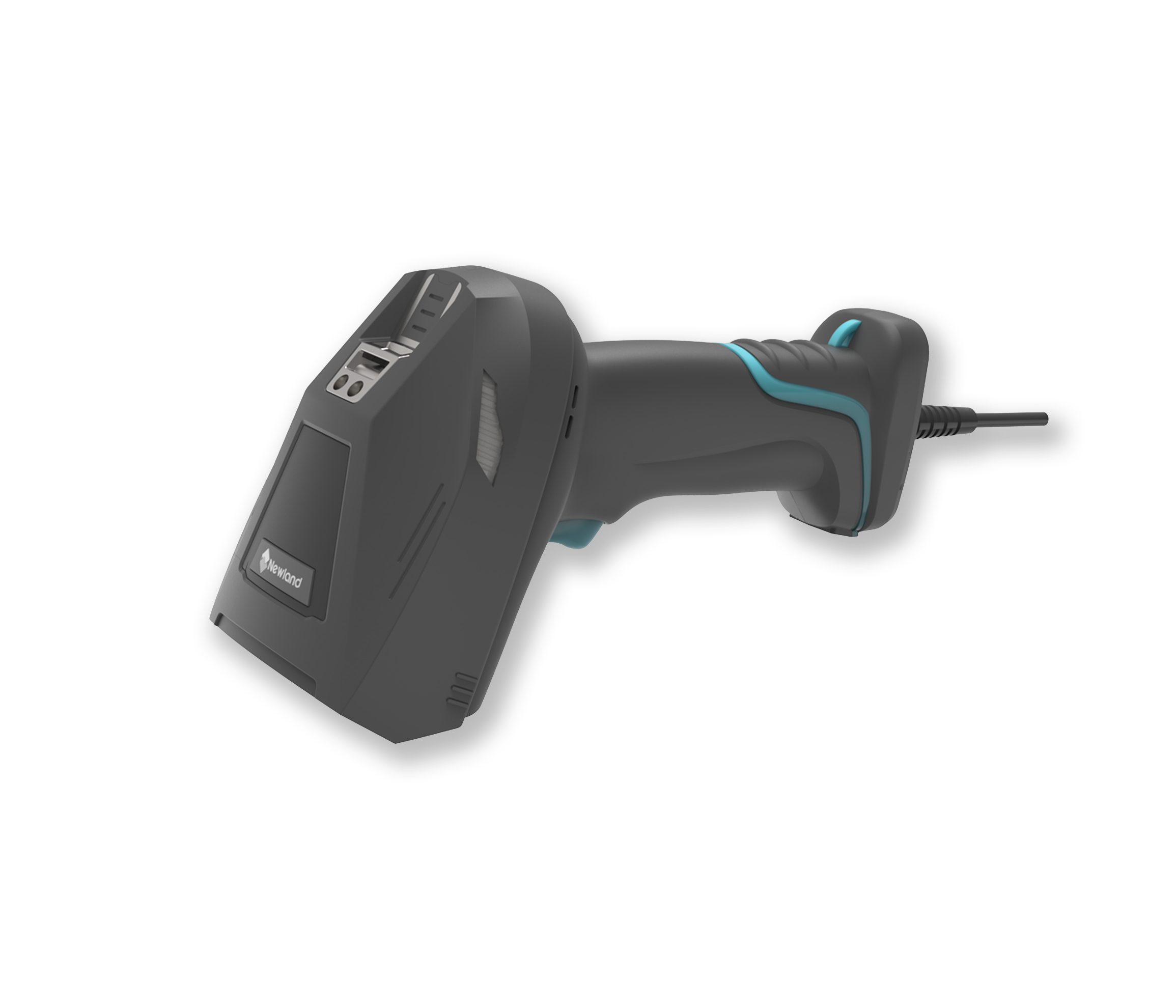

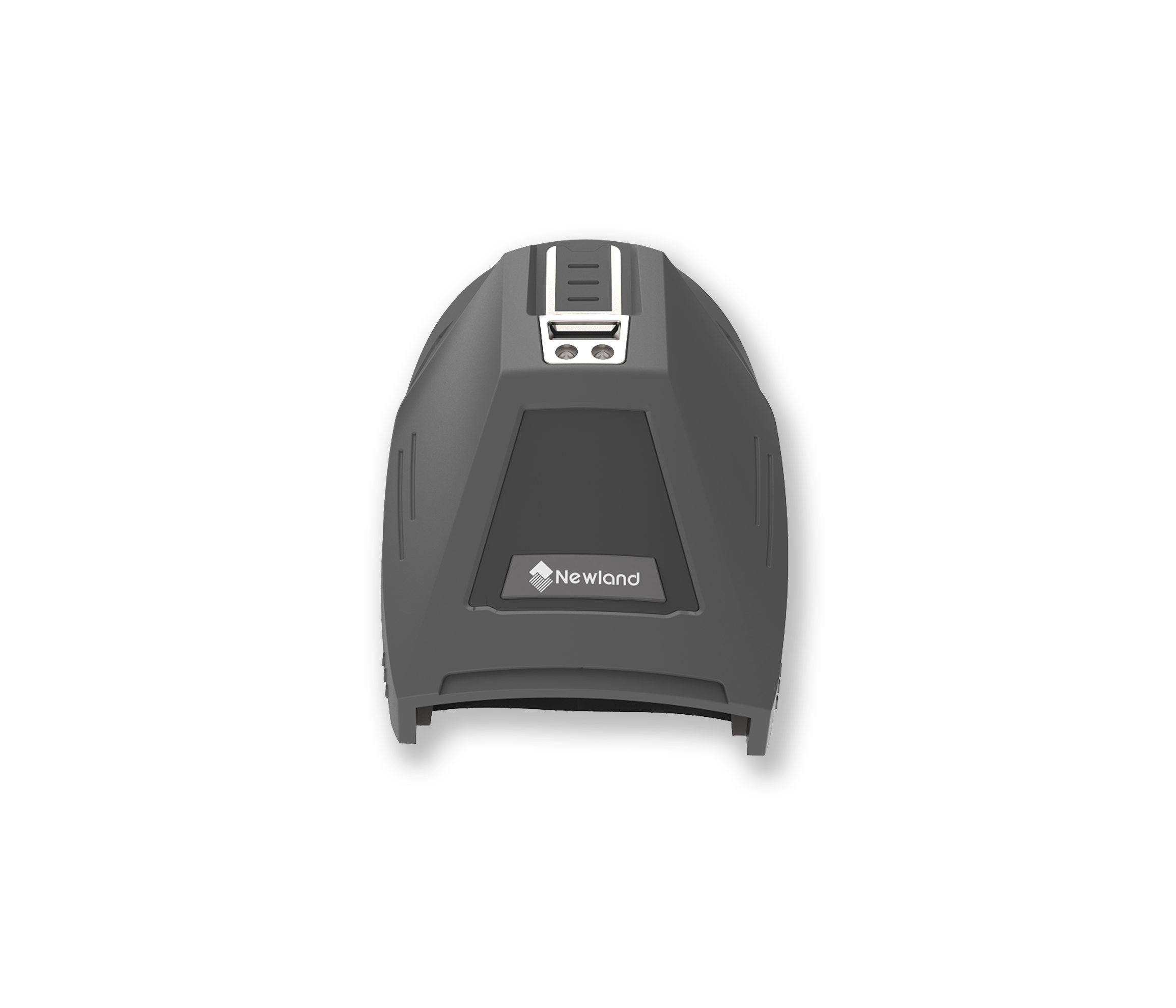

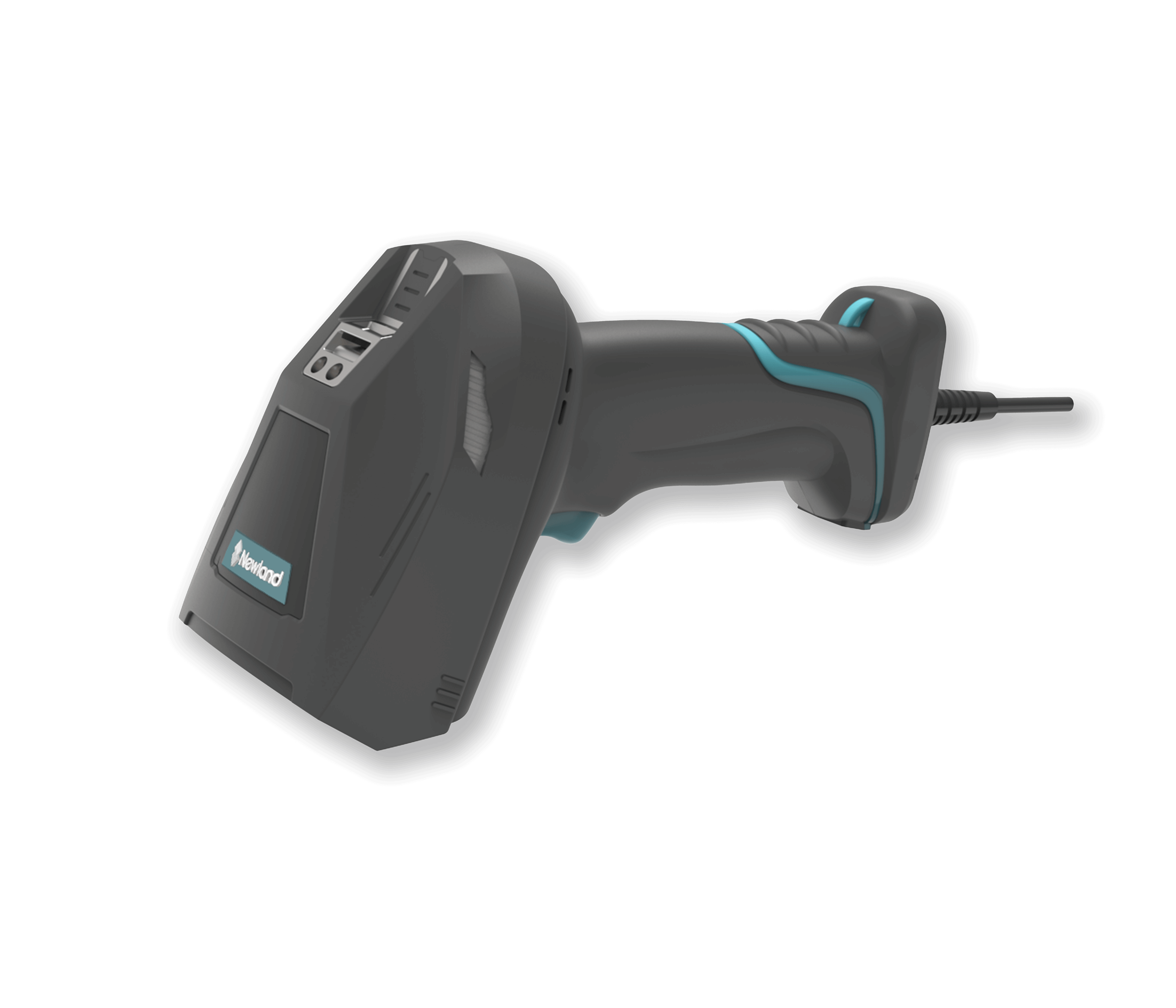

NVH300 Industrial Scanner

Product specifications

Decode Capability
1D, 2D
Connectivity
Corded
Dimension
76×107×185mm
Weight
245g
Sealing
IP64
Interface
USB, RS-232, Ethernet

Features

CMOS
1D Barcode
2D Barcode
USB
RS232
IP64
Laser Aimer
Ethernet
2.4m drop

Vertical

Healthcare
Manufacturing

Features
Specifications
Downloads
Accessories

Features

AI Function and Intelligent Learning

Equipped with the latest AI-powered barcode positioning technology, the NLS-NVH300 improves decoding performance for low-contrast barcodes. Additionally,intelligent learning enables automatic parameter adjustments based on different scenarios.

Advanced Illumination system

Provide white direct illumination, red and blue diffuse ring lights,rich lighting system can meet different materials (such as reflection), shape (curved surface), background and bar code color of all kinds of complex scanning code needs.

Excellent DPM Decoding Capability

Featuring the latest UlMG® decoding system, it enhances decoding success rates for complex barcodes, optimizing workflows and improving overall decoding efficiency. It also delivers exceptional decoding performance for DPM barcodes,including laser-etched and dot-peened markings.

High Protection Industrial Structure Design

The NLS-NVH300, built into an IP64-sealed and can withstand repeated falls from 2.4 meters to the ground, with excellent reliability and stability.

Specifications

Performance	Image Sensor	NVH300-DP: 1280×960 CMOS NVH300X-HDP: 1920×1200 CMOS
	Illumination	Direct: White Light LEDs Diffuse: Ring of red & blueLEDs
	Aiming	650nm laser diode
	Symbologies	2D: QR Code, PDF417, Micro QR,Data Matrix, AZTEC. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39
	Resolution	NVH300-DP: 1D≥1.67mil; 2D≥3mil NVH300X-HDP: 1D≥1.25mil; 2D≥1.67mil
	Typical Depth of Field	NVH300-DP: Code 39 3.3mil: 10mm - 100mm Code 39 5mil: 10mm - 130mm Data Matrix 5mil: 25mm - 90mm Data Matrix 10mil: 0mm - 130mm QR Code 5mil: 10mm - 85mm QR Code 15mil: 0mm - 170mm NVH300X-HDP: Code 39 2mil: 20mm - 33mm Code 39 5mil: 15mm - 40mm Data Matrix 1.67mil: 25mm - 28mm Data Matrix 5mil: 16mm - 36mm QR Code 1.67mil: 22mm - 26mm
	Min. Symbol Contrast	15%
	Scan Angle	Roll: 360°, Pitch: ±60°, Skew: ±55°
	Field of View	NVH300-DP: Horizontal 41°, Vertical 31° NVH300X-HDP: Horizontal 33.6°, Vertical 21.4°

Physical	Dimensions (L×W×H)	76(W)×107(D)×185(H)mm
	Weight	245g
	Notification	Beep, LED indicator, Vibrator
	Rated Power Consumption	2190mW (typical)
	Current@5VDC	Operating: 438mA (typical), 476mA (max.)
	Interface	USB,RS-232,Ethernet
	Operating Voltage	5VDC±5%

Environmental	Operating Temperature	-20°C to 50°C (-4°F to 122°F)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Humidity	5%~95% (non-condensing)
	ESD	±8 KV (direct discharge); ±16 KV (air discharge)
	Drop	2.4m
	Sealing	IP64

Certifications

Certificates

FCC Part15 Class B, CE EMC Class B, BIS

Accessories

Cable

USB:
Used to connect the NVH300 to a host device.

RS-232:
Used to connect the NVH300 to a host device. Adapter: input 100~240V,Output 5VDC/1.5A

Ethernet:
Used to connect the NVH300 to a host device. Adapter: input 100~240V,Output 5VDC/1.5A

Performance

Image Sensor
NVH300-DP: 1280×960 CMOS NVH300X-HDP: 1920×1200 CMOS

Illumination
Direct: White Light LEDs Diffuse: Ring of red & blueLEDs

Aiming
650nm laser diode

Symbologies
2D: QR Code, PDF417, Micro QR,Data Matrix, AZTEC. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39

Resolution
NVH300-DP: 1D≥1.67mil; 2D≥3mil NVH300X-HDP: 1D≥1.25mil; 2D≥1.67mil

Typical Depth of Field
NVH300-DP: Code 39 3.3mil: 10mm - 100mm Code 39 5mil: 10mm - 130mm Data Matrix 5mil: 25mm - 90mm Data Matrix 10mil: 0mm - 130mm QR Code 5mil: 10mm - 85mm QR Code 15mil: 0mm - 170mm NVH300X-HDP: Code 39 2mil: 20mm - 33mm Code 39 5mil: 15mm - 40mm Data Matrix 1.67mil: 25mm - 28mm Data Matrix 5mil: 16mm - 36mm QR Code 1.67mil: 22mm - 26mm

Min. Symbol Contrast
15%

Scan Angle
Roll: 360°, Pitch: ±60°, Skew: ±55°

Field of View
NVH300-DP: Horizontal 41°, Vertical 31° NVH300X-HDP: Horizontal 33.6°, Vertical 21.4°

Physical

Dimensions (L×W×H)
76(W)×107(D)×185(H)mm

Weight
245g

Notification
Beep, LED indicator, Vibrator

Rated Power Consumption
2190mW (typical)

Current@5VDC
Operating: 438mA (typical), 476mA (max.)

Interface
USB,RS-232,Ethernet

Operating Voltage
5VDC±5%

Environmental

Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Humidity
5%~95% (non-condensing)

ESD
±8 KV (direct discharge); ±16 KV (air discharge)

Drop
2.4m

Sealing
IP64

Certifications

Certificates
FCC Part15 Class B, CE EMC Class B, BIS

Accessories

Cable
USB: Used to connect the NVH300 to a host device. RS-232: Used to connect the NVH300 to a host device. Adapter: input 100~240V,Output 5VDC/1.5A Ethernet: Used to connect the NVH300 to a host device. Adapter: input 100~240V,Output 5VDC/1.5A
