Through the automatic focusing of the liquid lens, the Soldier180 can achieve fast and effective focus control and achieve a high degree of flexibility in reading.
Using 1280×960 megapixels image sensor, the scanner can decode higher precision barcodes.Armed with Newland’s latest-generation industrial decoding algorithm, it has strong decoding ability for DPM barcodes such as radium carving and dotting barcodes.

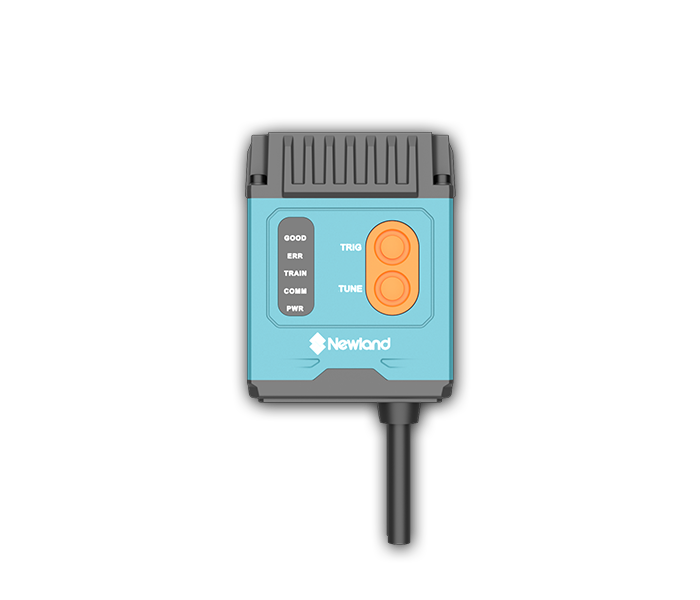

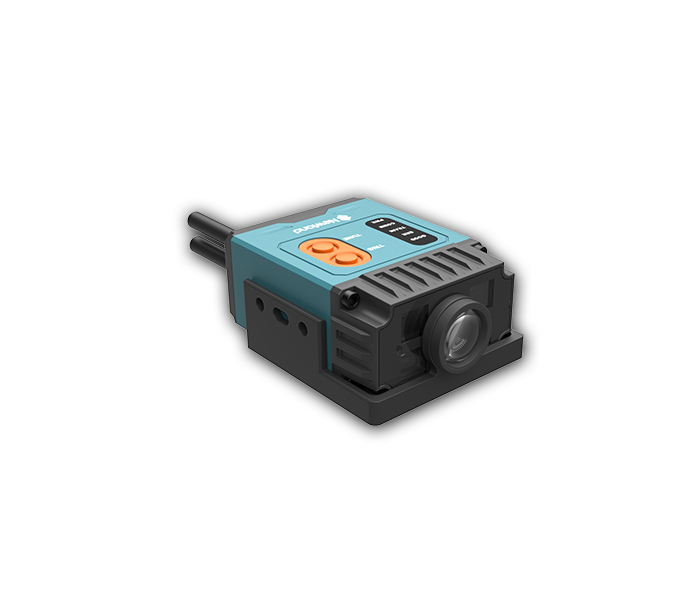

This fixed barcode scanner Soldier180 has a very small structure, but it has very powerful functions. It has a built-in IP65 seal, which is suitable for various complex environments and relatively compact industrial environments.
Providing different distance and angle versions as well as polarization version equipment, which can meet different application requirements.
Performance | Image Sensor | 1280 × 960 CMOS | |
| Illumination | 4 High-intensity red LEDs | ||
| Symbologies | 2D: QR Code, Micro QR, PDF 417, Data Matrix,Aztec Code. 1D: AN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
||
| Resolution | 180N: 2mil 180S: 2mil | ||
| Typical Depth of Field | Soldier180N: 40mm: 1D: 2mil; 2D: 3mil. 65mm: 1D: 3mil; 2D: 4mil. 80mm: 1D: 4mil; 2D: 5mil. 105mm: 1D: 4mil; 2D: 7mil. 150mm: 1D: 4mil; 2D: 10mil. 190mm: 1D: 5mil; 2D: 10mil. 225mm: 1D: 5mil; 2D: 12mil. 375mm: 1D: 8mil; 2D: 15mil. 500mm: 1D: 12mil; 2D: 20mil. 1000mm: 1D: 25mil; 2D: 40mil. |
||
| Soldier180S: 40mm: 1D: 2mil; 2D: 2mil. 65mm: 1D: 2mil; 2D: 2mil. 80mm: 1D: 2mil; 2D: 2mil. 105mm: 1D: 3mil; 2D: 3mil. 150mm: 1D: 3mil; 2D: 4mil. 190mm: 1D: 3mil; 2D: 4mil. 225mm: 1D: 3mil; 2D: 4mil. 375mm: 1D: 4mil; 2D: 7mil. 500mm: 1D: 6mil; 2D: 10mil. 1000mm: 1D: 15mil; 2D: 20mil. |
|||
| Min. Symbol Contrast | ≥25% | ||
| Scan Angle | Roll: 360°, Pitch: ±45°, Skew: ±45° | ||
| Motion Tolerance | 2m/s | ||
| Field of View | Soldier180N: Horizontal 38°, Vertical 28.7° Soldier180S: Horizontal 15.2°, Vertical 11.3° |
||
| Effective Focal Length | Soldier 180S:13.7mm Soldier 180N:6.8mm |
||
Physical | Interface | RS232,TCP/IP,UDP,FTP,Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP |
|
| Dimensions (W×D×H) | 45(W)×59.2(D)×25(H) mm (max.) | ||
| Weight | 185g | ||
| Prompt | Buzzer,LED | ||
| Power Voltage | 24V±10% | ||
| Current Operating | 200mA（max） | ||
| @24V DC Standby | 70mA | ||
| Input | Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs | ||
| Output | Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs | ||
Environmental | Working Temperature | -20°C to 50°C | |
| Storage Temperature | -40°C to 70°C | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | ||
| Sealing | IP65 | ||
Accessories | Accessories | Cable：Ethernet cable，RS232+I/O cable Adapter：Input 100-240V，output DC 24V/1.5A Other:Fixed bracket,Diffuser（optional），Magnifier（optional） |
|
| Image Sensor | |
|---|---|
| 1280 × 960 CMOS | |
| Illumination | |
|---|---|
| 4 High-intensity red LEDs | |
| Symbologies | |
|---|---|
| 2D: QR Code, Micro QR, PDF 417, Data Matrix,Aztec Code. 1D: AN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | |
|---|---|
| 180N: 2mil 180S: 2mil | |
| Typical Depth of Field | |
|---|---|
| Soldier180N: 40mm: 1D: 2mil; 2D: 3mil. 65mm: 1D: 3mil; 2D: 4mil. 80mm: 1D: 4mil; 2D: 5mil. 105mm: 1D: 4mil; 2D: 7mil. 150mm: 1D: 4mil; 2D: 10mil. 190mm: 1D: 5mil; 2D: 10mil. 225mm: 1D: 5mil; 2D: 12mil. 375mm: 1D: 8mil; 2D: 15mil. 500mm: 1D: 12mil; 2D: 20mil. 1000mm: 1D: 25mil; 2D: 40mil. |
|
| Soldier180S: 40mm: 1D: 2mil; 2D: 2mil. 65mm: 1D: 2mil; 2D: 2mil. 80mm: 1D: 2mil; 2D: 2mil. 105mm: 1D: 3mil; 2D: 3mil. 150mm: 1D: 3mil; 2D: 4mil. 190mm: 1D: 3mil; 2D: 4mil. 225mm: 1D: 3mil; 2D: 4mil. 375mm: 1D: 4mil; 2D: 7mil. 500mm: 1D: 6mil; 2D: 10mil. 1000mm: 1D: 15mil; 2D: 20mil. |
|
| Min. Symbol Contrast | |
|---|---|
| ≥25% | |
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±45°, Skew: ±45° | |
| Motion Tolerance | |
|---|---|
| 2m/s | |
| Field of View | |
|---|---|
| Soldier180N: Horizontal 38°, Vertical 28.7° Soldier180S: Horizontal 15.2°, Vertical 11.3° |
|
| Effective Focal Length | |
|---|---|
| Soldier 180S:13.7mm Soldier 180N:6.8mm |
|
| Interface | |
|---|---|
| RS232,TCP/IP,UDP,FTP,Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP |
|
| Dimensions (W×D×H) | |
|---|---|
| 45(W)×59.2(D)×25(H) mm (max.) | |
| Weight | |
|---|---|
| 185g | |
| Prompt | |
|---|---|
| Buzzer,LED | |
| Power Voltage | |
|---|---|
| 24V±10% | |
| Current Operating | |
|---|---|
| 200mA（max） | |
| @24V DC Standby | |
|---|---|
| 70mA | |
| Input | |
|---|---|
| Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs | |
| Output | |
|---|---|
| Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs | |
| Working Temperature | |
|---|---|
| -20°C to 50°C | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Sealing | |
|---|---|
| IP65 | |
| Accessories | |
|---|---|
| Cable：Ethernet cable，RS232+I/O cable Adapter：Input 100-240V，output DC 24V/1.5A Other:Fixed bracket,Diffuser（optional），Magnifier（optional） |
|
