With advanced liquid lens autofocus technology, the NLS-Soldier180 enables fast and precise focus control, offering high flexibility in reading.
Through the NSet software, the scanner can be configured with a variety of functions, including device grouping, multi-barcode output, script editing, and more. Equipped with powerful self-learning capabilities, the device enables one-click image and scanning setup, greatly simplifying scanner configuration.
Featuring an IP65-rated protection and a compact design, it is suitable for complex and space-constrained industrial environments.
The Soldier 180N-P and Soldier 180S-P offer different angle options, both equipped with direct and polarized lighting for versatile illumination. Compatible with accessories such as magnifier, diffuser, and reflector, they are designed to meet a wide range of application needs.
Integrated with advanced AI algorithms and ISP functionality, the NLS-Soldier180 delivers exceptional barcode reading performance in challenging industrial environments, including low-contrast, multi-code, and cluttered backgrounds, significantly enhancing decoding accuracy and stability.
NLS-Soldier180 integrates RS-232 and Ethernet interfaces (supporting Profinet, Ethernet/IP, and ModbusTCP), and includes two I/O ports for input and output.
Performance | Image Sensor | 1280 × 960 CMOS | |

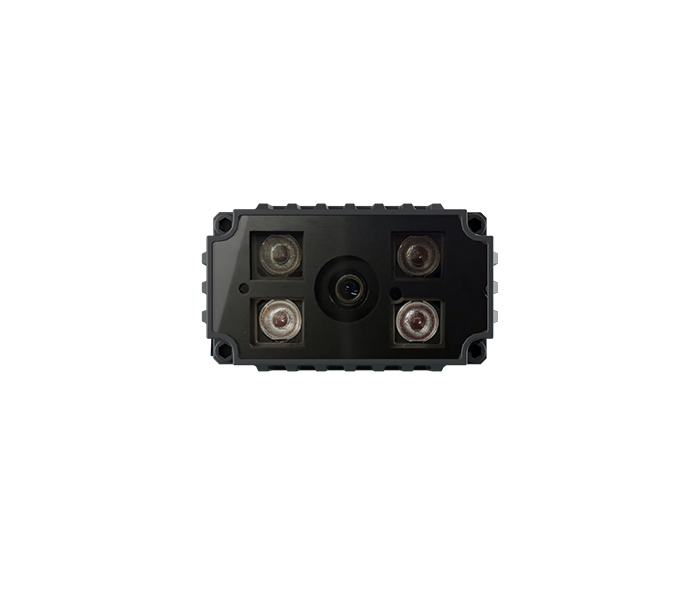

| Illumination | 4 High-intensity red LEDs | ||
| Symbologies | 2D: QR Code, Micro QR, PDF 417, Data Matrix,Aztec Code. 1D: AN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
||
| Resolution | 180N: 2mil 180S: 2mil | ||
| Typical Depth of Field | Soldier180N: 40mm: 1D: 2mil; 2D: 3mil. 65mm: 1D: 3mil; 2D: 4mil. 80mm: 1D: 4mil; 2D: 5mil. 105mm: 1D: 4mil; 2D: 7mil. 150mm: 1D: 4mil; 2D: 10mil. 190mm: 1D: 5mil; 2D: 10mil. 225mm: 1D: 5mil; 2D: 12mil. 375mm: 1D: 8mil; 2D: 15mil. 500mm: 1D: 12mil; 2D: 20mil. 1000mm: 1D: 25mil; 2D: 40mil. |
||
| Soldier180S: 40mm: 1D: 2mil; 2D: 2mil. 65mm: 1D: 2mil; 2D: 2mil. 80mm: 1D: 2mil; 2D: 2mil. 105mm: 1D: 3mil; 2D: 3mil. 150mm: 1D: 3mil; 2D: 4mil. 190mm: 1D: 3mil; 2D: 4mil. 225mm: 1D: 3mil; 2D: 4mil. 375mm: 1D: 4mil; 2D: 7mil. 500mm: 1D: 6mil; 2D: 10mil. 1000mm: 1D: 15mil; 2D: 20mil. |
|||
| Min. Symbol Contrast | ≥25% | ||
| Scan Angle | Roll: 360°, Pitch: ±45°, Skew: ±45° | ||
| Motion Tolerance | 2m/s | ||
| Field of View | Soldier180N: Horizontal 38°, Vertical 28.7° Soldier180S: Horizontal 15.2°, Vertical 11.3° |
||
| Effective Focal Length | Soldier 180S:13.7mm Soldier 180N:6.8mm |
||
Physical | Interface | RS232,TCP/IP,UDP,FTP,Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP |
|
| Dimensions (W×D×H) | 45(W)×59.2(D)×25(H) mm (max.) | ||
| Weight | 185g | ||
| Prompt | Buzzer,LED | ||
| Power Voltage | 24V±10% | ||
| Current Operating | 200mA（max） | ||
| @24V DC Standby | 70mA | ||
| Input | Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs | ||
| Output | Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs | ||
Environmental | Working Temperature | -20°C to 50°C | |
| Storage Temperature | -40°C to 70°C | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | ||
| Sealing | IP65 | ||
Accessories | Accessories | Cable：Ethernet cable，RS232+I/O cable Adapter：Input 100-240V，output DC 24V/1.5A Other:Fixed bracket,Diffuser（optional），Magnifier（optional） |
|
| Image Sensor | |
|---|---|
| 1280 × 960 CMOS | |
| Illumination | |
|---|---|
| 4 High-intensity red LEDs | |
| Symbologies | |
|---|---|
| 2D: QR Code, Micro QR, PDF 417, Data Matrix,Aztec Code. 1D: AN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | |
|---|---|
| 180N: 2mil 180S: 2mil | |
| Typical Depth of Field | |
|---|---|
| Soldier180N: 40mm: 1D: 2mil; 2D: 3mil. 65mm: 1D: 3mil; 2D: 4mil. 80mm: 1D: 4mil; 2D: 5mil. 105mm: 1D: 4mil; 2D: 7mil. 150mm: 1D: 4mil; 2D: 10mil. 190mm: 1D: 5mil; 2D: 10mil. 225mm: 1D: 5mil; 2D: 12mil. 375mm: 1D: 8mil; 2D: 15mil. 500mm: 1D: 12mil; 2D: 20mil. 1000mm: 1D: 25mil; 2D: 40mil. |
|
| Soldier180S: 40mm: 1D: 2mil; 2D: 2mil. 65mm: 1D: 2mil; 2D: 2mil. 80mm: 1D: 2mil; 2D: 2mil. 105mm: 1D: 3mil; 2D: 3mil. 150mm: 1D: 3mil; 2D: 4mil. 190mm: 1D: 3mil; 2D: 4mil. 225mm: 1D: 3mil; 2D: 4mil. 375mm: 1D: 4mil; 2D: 7mil. 500mm: 1D: 6mil; 2D: 10mil. 1000mm: 1D: 15mil; 2D: 20mil. |
|
| Min. Symbol Contrast | |
|---|---|
| ≥25% | |
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±45°, Skew: ±45° | |
| Motion Tolerance | |
|---|---|
| 2m/s | |
| Field of View | |
|---|---|
| Soldier180N: Horizontal 38°, Vertical 28.7° Soldier180S: Horizontal 15.2°, Vertical 11.3° |
|
| Effective Focal Length | |
|---|---|
| Soldier 180S:13.7mm Soldier 180N:6.8mm |
|
| Interface | |
|---|---|
| RS232,TCP/IP,UDP,FTP,Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP |
|
| Dimensions (W×D×H) | |
|---|---|
| 45(W)×59.2(D)×25(H) mm (max.) | |
| Weight | |
|---|---|
| 185g | |
| Prompt | |
|---|---|
| Buzzer,LED | |
| Power Voltage | |
|---|---|
| 24V±10% | |
| Current Operating | |
|---|---|
| 200mA（max） | |
| @24V DC Standby | |
|---|---|
| 70mA | |
| Input | |
|---|---|
| Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs | |
| Output | |
|---|---|
| Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs | |
| Working Temperature | |
|---|---|
| -20°C to 50°C | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Sealing | |
|---|---|
| IP65 | |
| Accessories | |
|---|---|
| Cable：Ethernet cable，RS232+I/O cable Adapter：Input 100-240V，output DC 24V/1.5A Other:Fixed bracket,Diffuser（optional），Magnifier（optional） |
|
