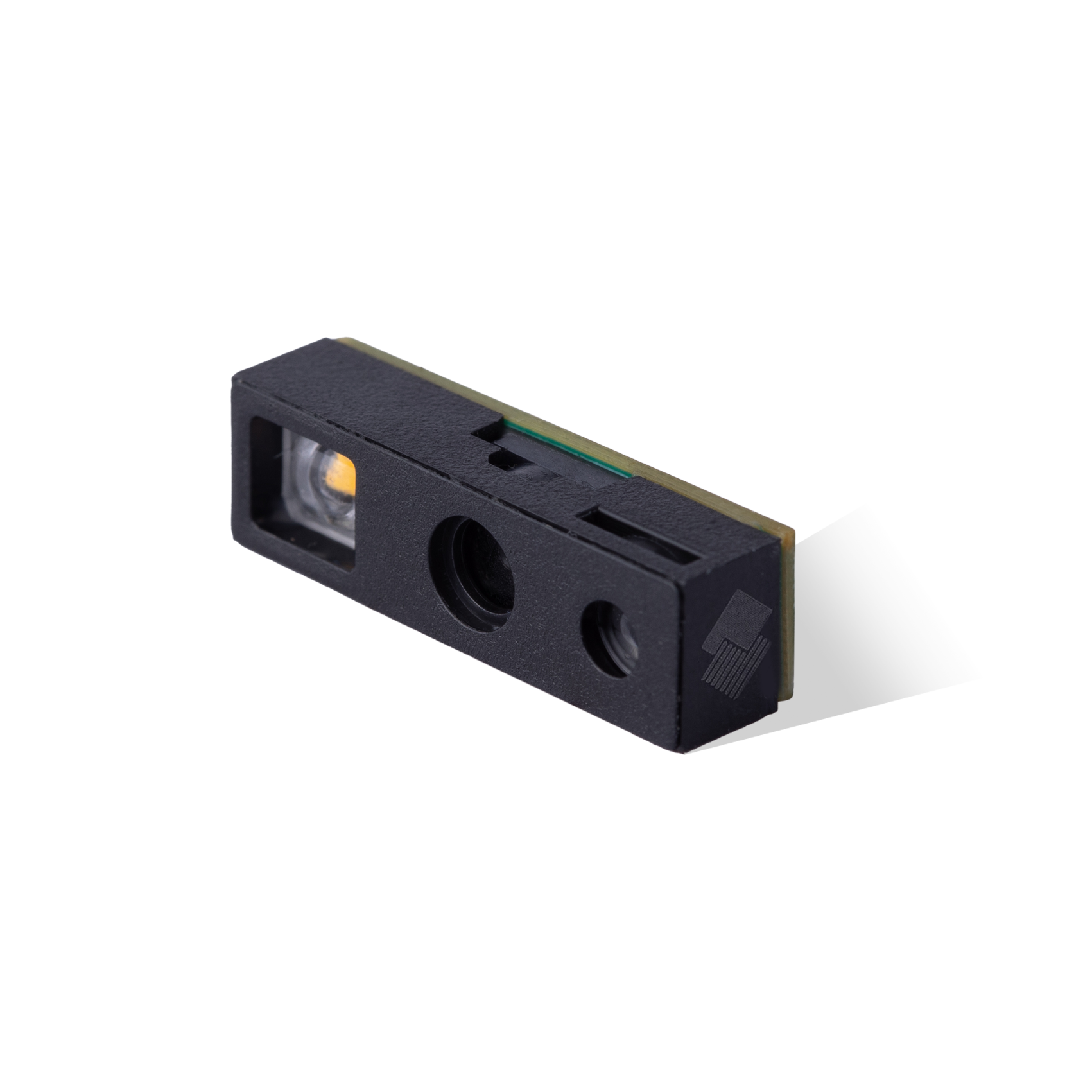

Scan Engine All In One
Scan Engine All In One
Scan Engine All In One

EM3396 Scan Engine All In One

contact us
Product specifications
  • Decode Capability
    1D, 2D
  • Form Factor
    All-in-One
  • Interface
    USB, TTL-232
  • Illumination
    Red LED
  • Dimension
    21.5×15.3×11.8mm
  • Weight
    5g
Features
  • 1D Barcode
    1D Barcode
  • 2D Barcode
    2D Barcode
  • TTL232
    TTL232
  • Kiosk
    Kiosk
  • USB
    USB
Vertical
  • Retail
    Retail
  • Mobile Terminal
    Mobile Terminal
  • Barcode Scanner
    Barcode Scanner
  • Kiosk
    Kiosk
  • Warehouse
    Warehouse
  • Mobile Payment
    Mobile Payment
  • Healthcare
    Healthcare
  • Transportation & Logistic
    Transportation & Logistic
  • POS
    POS
  • Public Sector
    Public Sector
  • Features
  • Specifications
  • Downloads
Features

  • All-in-One Design

    • Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment. (Seamlessly compatible with NLS-EM3096)

  • Highly Visible Laser Aimer

    • The scan engine provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

  • Outstanding Power Efficiency

    • The advanced latest technology incorporated in the scan engine helps reduce the power consumption and prolong the service life of the device.

  • UIMG® Technology

    • Armed with Newland’s six-generation of UIMG® technology, the scan engine can swiftly and effortlessly decode even poor quality barcodes.

Specifications
Performance
 Image Sensor 752 * 480 CMOS
Illumination Red LED 625±10 nm
Symbologies 2D:PDF417, QR Code/ Micro QR, Data Matrix, Aztec
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN/ISSN, Code 93, UCC/EAN-128, GS1-DataBar, Matrix 2 of 5, Code 11, AIM28, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
Resolution ≥3mil
Typical Depth of Field EAN-13
Code 39
PDF 417
Data Matrix
QR Code
 60mm-290mm (13mil)
55mm-165mm(5mil)
55mm-135mm (6.7mil)
55mm-130mm (10mil)
45mm-175mm (15mil)
Scan Angle Roll: 360°, Pitch: ±55°, Skew: ±55°
Min. Symbol Contrast 20%
Aiming Laser diode 650 nm
Field of View Horizontal 36°, Vertical 23°
Physical
 Dimensions (L×W×H) 21.5×15.3×11.8mm
Weight 5g
Interface TTL-232, USB
Operating Voltage 3.3 VDC±10%
Rated Power Consumption 379.5mW (typical)
Current@3.3VDC Operating
Idle
Sleep
 115mA (typical), 195mA (max.)
9.1mA
<100uA
Environmental
 Operating Temperature -20℃ to 55℃ (-4°F to 131°F）
Storage Temperature -40℃ to 70℃ (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
Ambient Light 0~100,000lux (natural light)
Certifications
 Certificates & Protection FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
 NLS-EVK Software development board for the NLS-EM3396, equipped with a trigger button, beeper and RS-232 & USB interfaces.
Cable USB
RS-232
 Used to connect the NLS-EVK to a host device.
Power Adapter DC5V power adapter to power the NLS-EVK with RS-232 cable.
Performance
Image Sensor
752 * 480 CMOS
Illumination
Red LED 625±10 nm
Symbologies
2D:PDF417, QR Code/ Micro QR, Data Matrix, Aztec
1D:Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN/ISSN, Code 93, UCC/EAN-128, GS1-DataBar, Matrix 2 of 5, Code 11, AIM28, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
Resolution
≥3mil
Typical Depth of Field
EAN-13
Code 39
PDF 417
Data Matrix
QR Code
 60mm-290mm (13mil)
55mm-165mm(5mil)
55mm-135mm (6.7mil)
55mm-130mm (10mil)
45mm-175mm (15mil)
Scan Angle
Roll: 360°, Pitch: ±55°, Skew: ±55°
Min. Symbol Contrast
20%
Aiming
Laser diode 650 nm
Field of View
Horizontal 36°, Vertical 23°
Physical
Dimensions (L×W×H)
21.5×15.3×11.8mm
Weight
5g
Interface
TTL-232, USB
Operating Voltage
3.3 VDC±10%
Rated Power Consumption
379.5mW (typical)
Current@3.3VDC
Operating
Idle
Sleep
 115mA (typical), 195mA (max.)
9.1mA
<100uA
Environmental
Operating Temperature
-20℃ to 55℃ (-4°F to 131°F）
Storage Temperature
-40℃ to 70℃ (-40°F to 158°F)
Humidity
5%~95% (non-condensing)
Ambient Light
0~100,000lux (natural light)
Certifications
Certificates & Protection
FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
NLS-EVK
Software development board for the NLS-EM3396, equipped with a trigger button, beeper and RS-232 & USB interfaces.
Cable
USB
RS-232
 Used to connect the NLS-EVK to a host device.
Power Adapter
DC5V power adapter to power the NLS-EVK with RS-232 cable.
Downloads
Specification Sheets
  • NLS-EM3396_Datasheet_en_global
    NLS-EM3396_Datasheet_en_global

    Language: English

    Download
Manual & Technical Literature
  • NLS-EM3396_User_Guide
    NLS-EM3396_User_Guide

    Language: English

    Download
Software
  • Easyset
    Easyset

    Language: English

    Download
  • JPOS_Newland_Scanner
    JPOS_Newland_Scanner

    Language: English

    Download
  • OPOS_Newland_Scanner
    OPOS_Newland_Scanner

    Language: English

    Download
  • UFCOM_Driver
    UFCOM_Driver

    Language: English

    Download
  • USB-COM_Driver
    USB-COM_Driver

    Language: English

    Download
