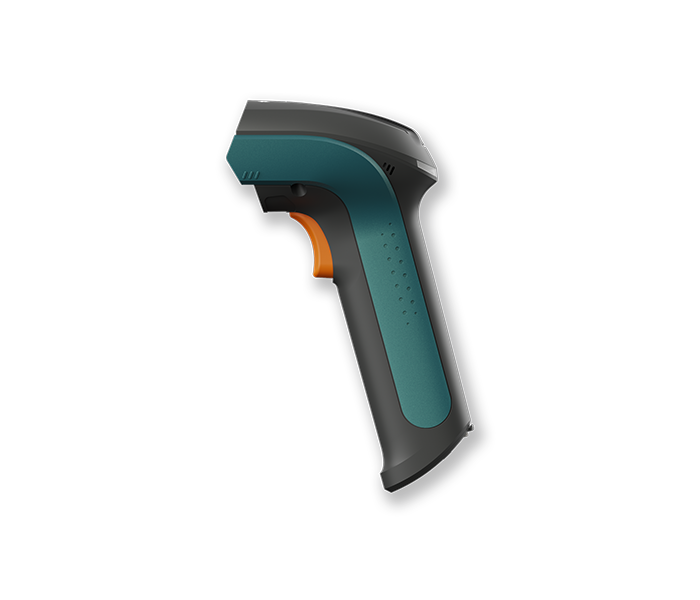

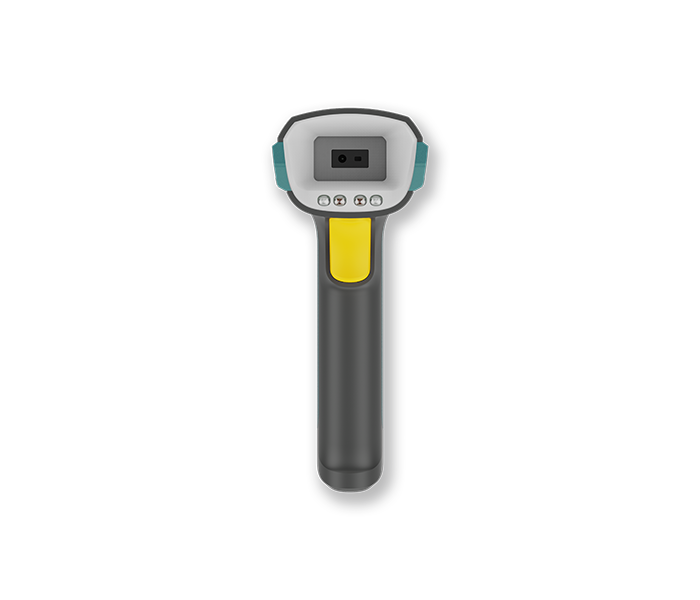

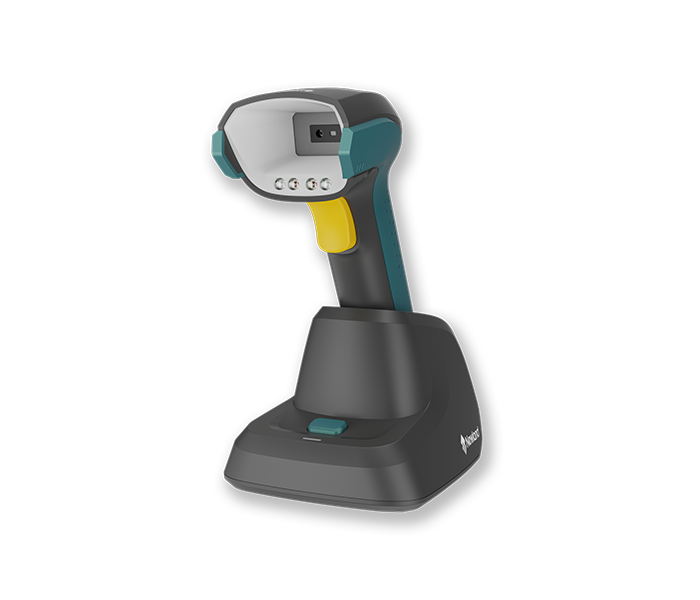

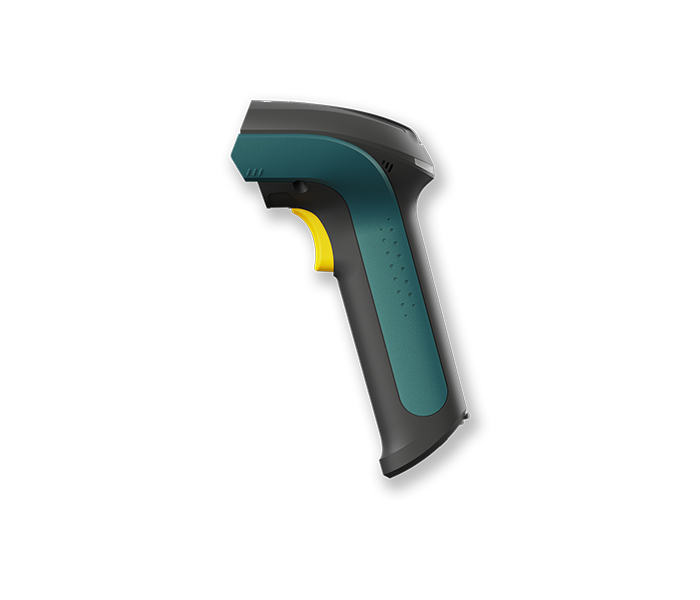

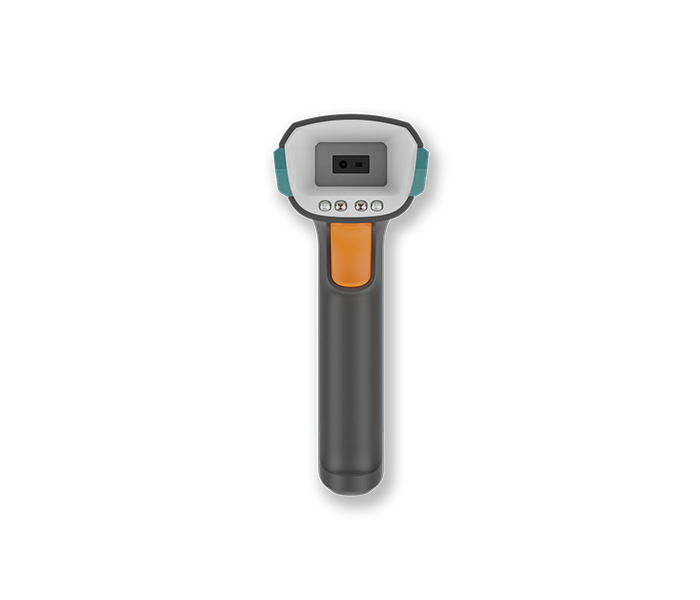

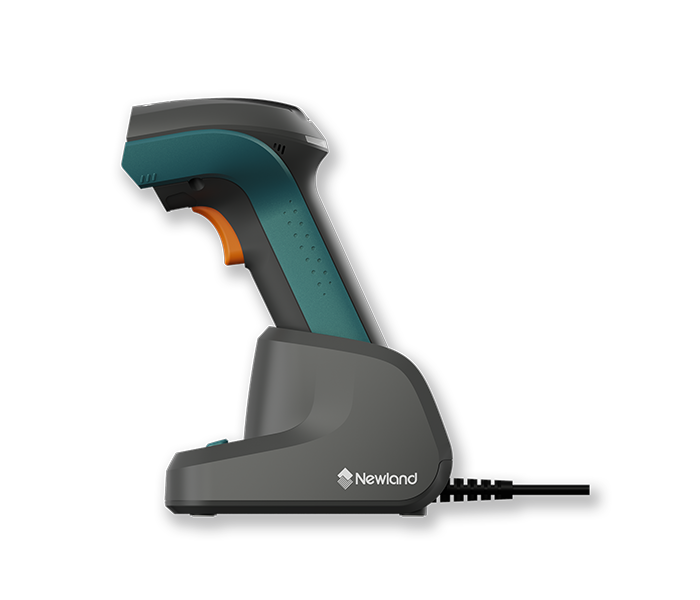

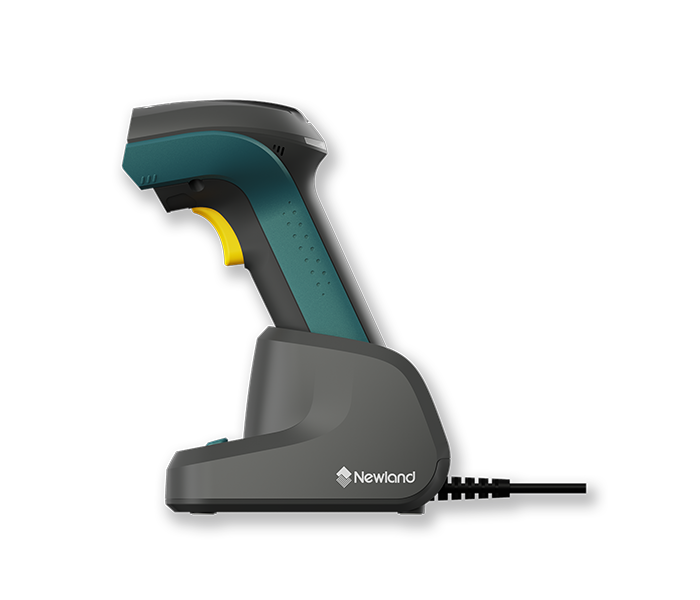

NVH220B

Industrial Scanner
NVH220 600x700 1.png

NVH220B

Industrial Scanner
NVH220 600x700 1.png

NVH220B

Industrial Scanner
Industrial Scanner
Industrial Scanner
Industrial Scanner
Industrial Scanner
Industrial Scanner

NVH220B Industrial Scanner

Product specifications
  • Decode Capability
    1D, 2D
  • Connectivity
    Cordless
  • Dimension
    Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm
  • Weight
    Scanner: 220g, Cradle: 230g
  • Sealing
    Scanner: IP64, Cradle: IP42
  • Interface
    USB, RS-232, PS/2
Features
  • 2D Barcode
    2D Barcode
  • 1D Barcode
    1D Barcode
  • RS232
    RS232
  • USB
    USB
  • Ethernet
    Ethernet
  • Bluetooth
    Bluetooth
  • Features
  • Specifications
  • Downloads
Features
  • AI Function and Intelligent Learning

  • Equipped with AI function, it has excellent barcode positioning and barcode reconstruction capabilities. At the same time, intelligent learning can automatically adjust parameters according to different scenarios..

  • Advanced Illumination system

  • Provide white and red direct illumination, blue diffuse ring lights, rich lighting system can meet different materials (such as reflection), shape (curved surface), background and bar code color of all kinds of complex scanning code needs.

  • Excellent DPM Decoding Capability

  • Armed with Newland’s latest-generation industrial decoding algorithm, it has strong decoding ability for DPM barcodes such as radium carving and dotting barcodes.

  • High Protection Industrial Structure Design

  • The NLS-NVH220B-HD, built into an IP64-sealed and can withstand repeated falls from 1.8 meters to the ground, with excellent reliability and stability.


Specifications
Performance
Image Sensor 1280 × 960 CMOS
Illumination Direct: white & red light LED;
Aiming Diffuse: Ring of blue LEDs;
LED 532nm
Symbologies 2D: QR Code, Micro QR Code, PDF 417, Data Matrix.
1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12.
Resolution ≥3mil
Typical Depth of Field EAN-13(13mil) : 25mm-160mm
Code 39(5mil) : 40mm-100mm
Code 39(20mil) : 35mm-210mm
Data Matrix(10mil) : 0mm-125mm
QR Code(20mil) : 20mm-180mm
Motion Tolerance 2m/s
Min. Symbol Contrast 20%
Scan Angle Roll: 360°, Pitch: ±50°, Skew: ±50°
Field of View Horizontal 41°, Vertical 31°
Physical
Interface USB, RS232, PS/2
Operating Voltage 5VDC±5%
Rated Power Consumption 2246mW (typical)
Current@4VDC Power consumption: 562mA
Idle: 116mA
Sleep: 43mA
Dimensions Scanner: 68(W) × 105(D) × 169(H) mm,
Cradle: 103(W) × 127(D) × 83(H) mm
Weight Scanner: 220g, Cradle: 230g
Notification Beep, LED indicator, Vibrator
Communication Distance 150m (line of sight)
Flash Memory ≥30000 pieces of code 128 (20 byte of each Code 128)
Battery 2900mAh
Radio Technology 2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE
Expected Battery Life ≥20 hours of continuous operation, up to 70,000 scans per charge
Expected Charge Time 2.5 hours
Environmental
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% to 95% (non-condensing)
Ambient Light 0~100,000lux (natural light)
ESD ±16 KV (air discharge); ±8 KV (direct discharge)
Drop Scanner: 1.8m,Cradle: 1.2m
Sealing Scanner: IP64, Cradle: IP42
Performance
Image Sensor
1280 × 960 CMOS
Illumination
Direct: white & red light LED;
Aiming
Diffuse: Ring of blue LEDs;
LED 532nm
Symbologies
2D: QR Code, Micro QR Code, PDF 417, Data Matrix.
1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12.
Resolution
≥3mil
Typical Depth of Field
EAN-13(13mil) : 25mm-160mm
Code 39(5mil) : 40mm-100mm
Code 39(20mil) : 35mm-210mm
Data Matrix(10mil) : 0mm-125mm
QR Code(20mil) : 20mm-180mm
Motion Tolerance
2m/s
Min. Symbol Contrast
20%
Scan Angle
Roll: 360°, Pitch: ±50°, Skew: ±50°
Field of View
Horizontal 41°, Vertical 31°
Physical
Interface
USB, RS232, PS/2
Operating Voltage
5VDC±5%
Rated Power Consumption
2246mW (typical)
Current@4VDC
Power consumption: 562mA
Idle: 116mA
Sleep: 43mA
Dimensions
Scanner: 68(W) × 105(D) × 169(H) mm,
Cradle: 103(W) × 127(D) × 83(H) mm
Weight
Scanner: 220g, Cradle: 230g
Notification
Beep, LED indicator, Vibrator
Communication Distance
150m (line of sight)
Flash Memory
≥30000 pieces of code 128 (20 byte of each Code 128)
Battery
2900mAh
Radio Technology
2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE
Expected Battery Life
≥20 hours of continuous operation, up to 70,000 scans per charge
Expected Charge Time
2.5 hours
Environmental
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
Humidity
5% to 95% (non-condensing)
Ambient Light
0~100,000lux (natural light)
ESD
±16 KV (air discharge); ±8 KV (direct discharge)
Drop
Scanner: 1.8m,Cradle: 1.2m
Sealing
Scanner: IP64, Cradle: IP42
