Armed with Newland's six-generation of UIMG® technology, the scan engine can swiftly and effortlessly decode even poor quality barcodes (e.g., low contrast, laminated, damaged, torn, warped or wrinkled).
Designed with the end user in mind, the NLS-CM60 employs highly visible laser aimer to achieve crisp and accurate targeting while using flicker-free white soft illumination to reduce eye strain and fatigue from long-time operation.

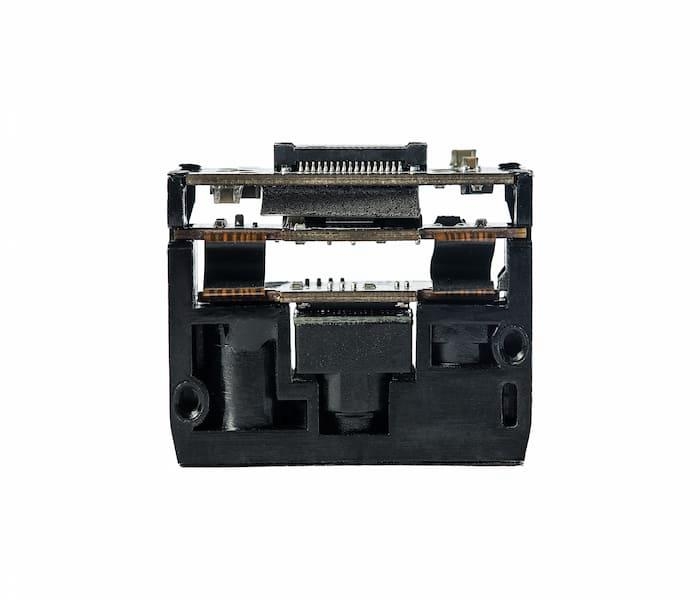

Seamless integration of imager sensor and aimer makes the scan engine extremely small and lightweight and easy to fit into miniature equipment.

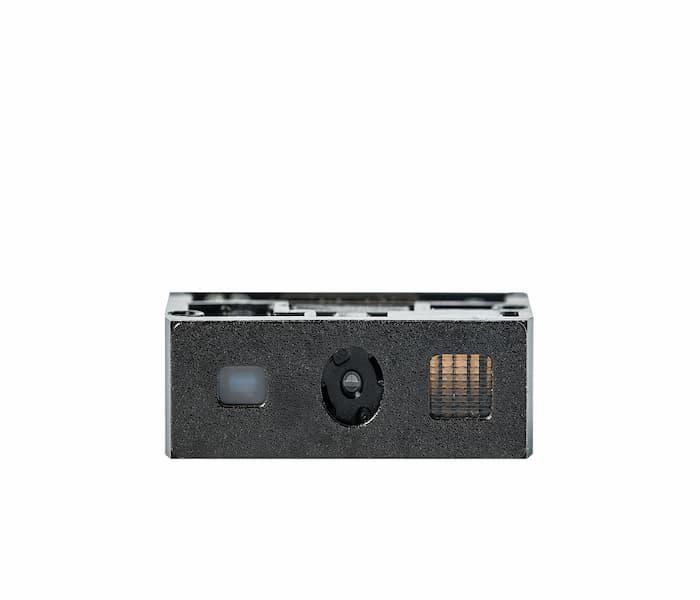

The NLS-CM60 provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.
Performance | Image Sensor | 1280 * 800 CMOS | |
| Illumination | 3000K white LED | ||
| Aiming | 650nm red laser | ||
| Symbologies | 2D PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec, Chinese Sensible Code, Maxicode, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN-128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, GS1 Composite, etc. |
||
| Resolution | 1D ≥3mil | ||
| Typical Depth of Field | EAN-13 70mm-600mm (13mil) PDF 417 110mm-230mm (6.7mil) Code 39 120mm-280mm (5mil) Data Matrix 110mm-260mm (10mil) QR Code 55mm-400mm (15mil) |
||
| Min. Symbol Contrast | 25% | ||
| Scan Angle | Roll: 360°, Pitch: ± 50°, Skew: ± 50° | ||
| Field of View | Horizontal 42°, Vertical 28° | ||
Physical | Interface | IIC, MIPI | |
| Operating Voltage | VIMG:3.3VDC±5% VLED: 3.3VDC±5% | ||
| Current | Operating 115mA (typical) 285mA (max.) Idle 4.6mA |
||
| Dimensions | 23.8(W)×16.7(D)×7.0(H)mm (max.) | ||
| Weight | 2.4g | ||
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Ambient Light | 0~100,000lux (natural light) | ||
Certifications | Certificates & Protection | FCC Part 15 Class B, CE EMC Class B, RoHS | |
Accessories | Cable | Optional 34-PIN board to board cable used to connect the EVK-CM60 to a host device | |
| Image Sensor | |
|---|---|
| 1280 * 800 CMOS | |
| Illumination | |
|---|---|
| 3000K white LED | |
| Aiming | |
|---|---|
| 650nm red laser | |
| Symbologies | |
|---|---|
| 2D PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec, Chinese Sensible Code, Maxicode, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN-128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, GS1 Composite, etc. |
|
| Resolution | |
|---|---|
| 1D ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13 70mm-600mm (13mil) PDF 417 110mm-230mm (6.7mil) Code 39 120mm-280mm (5mil) Data Matrix 110mm-260mm (10mil) QR Code 55mm-400mm (15mil) |
|
| Min. Symbol Contrast | |
|---|---|
| 25% | |
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ± 50°, Skew: ± 50° | |
| Field of View | |
|---|---|
| Horizontal 42°, Vertical 28° | |
| Interface | |
|---|---|
| IIC, MIPI | |
| Operating Voltage | |
|---|---|
| VIMG:3.3VDC±5% VLED: 3.3VDC±5% | |
| Current | |
|---|---|
| Operating 115mA (typical) 285mA (max.) Idle 4.6mA |
|
| Dimensions | |
|---|---|
| 23.8(W)×16.7(D)×7.0(H)mm (max.) | |
| Weight | |
|---|---|
| 2.4g | |
| Operating Temperature | |
|---|---|
| -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C (-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Ambient Light | |
|---|---|
| 0~100,000lux (natural light) | |
| Certificates & Protection | |
|---|---|
| FCC Part 15 Class B, CE EMC Class B, RoHS | |
| Cable | |
|---|---|
| Optional 34-PIN board to board cable used to connect the EVK-CM60 to a host device | |
