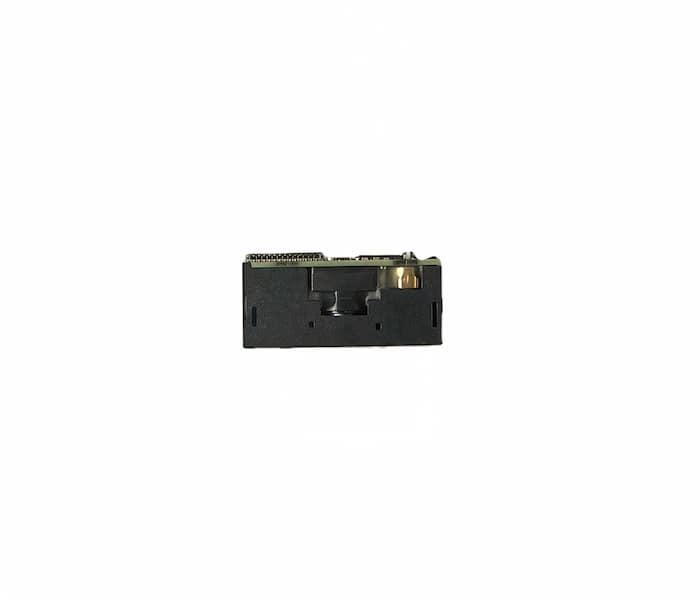

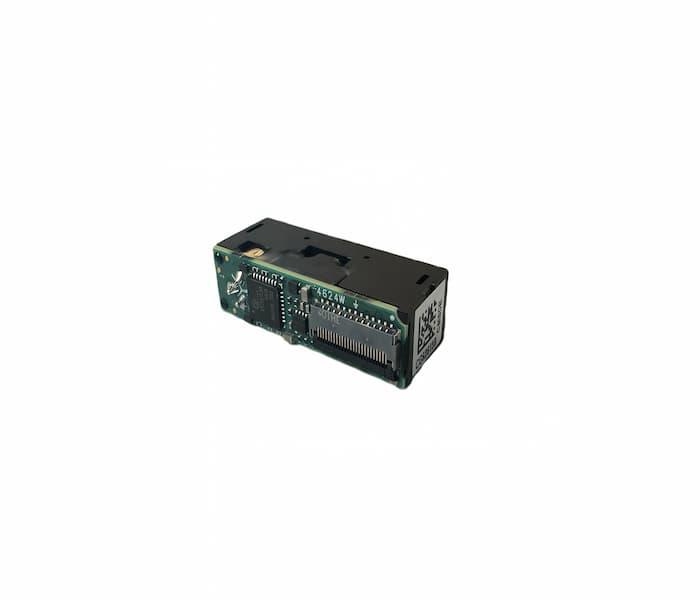

Armed with Newland's UIMG® technology, the scan engine can swiftly and effortlessly decode even poor-quality barcodes (e.g., low contrast, laminated, damaged, torn, warped or wrinkled).

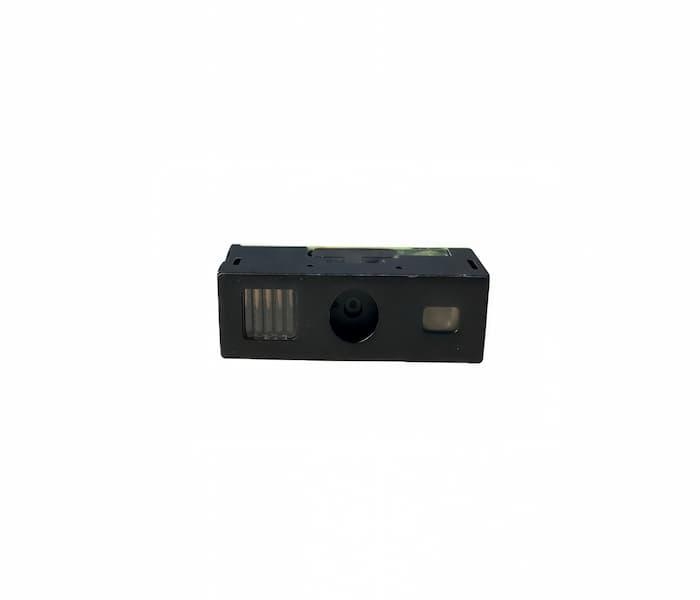

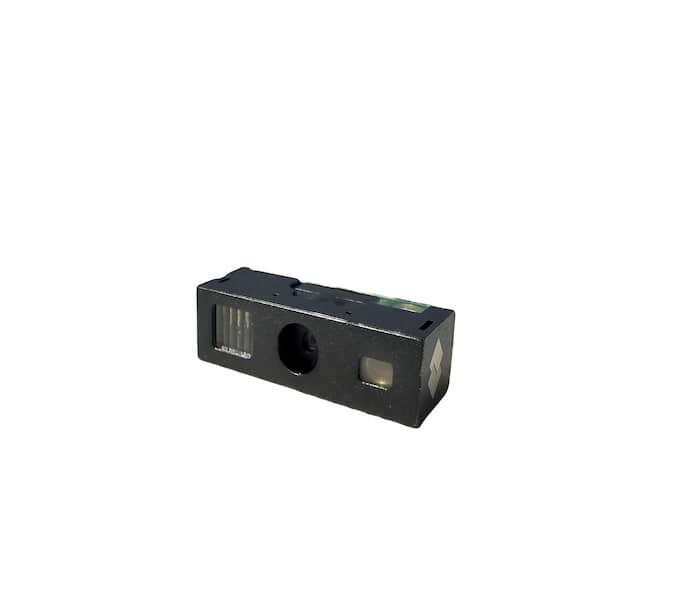

The NLS-CM60E provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim.

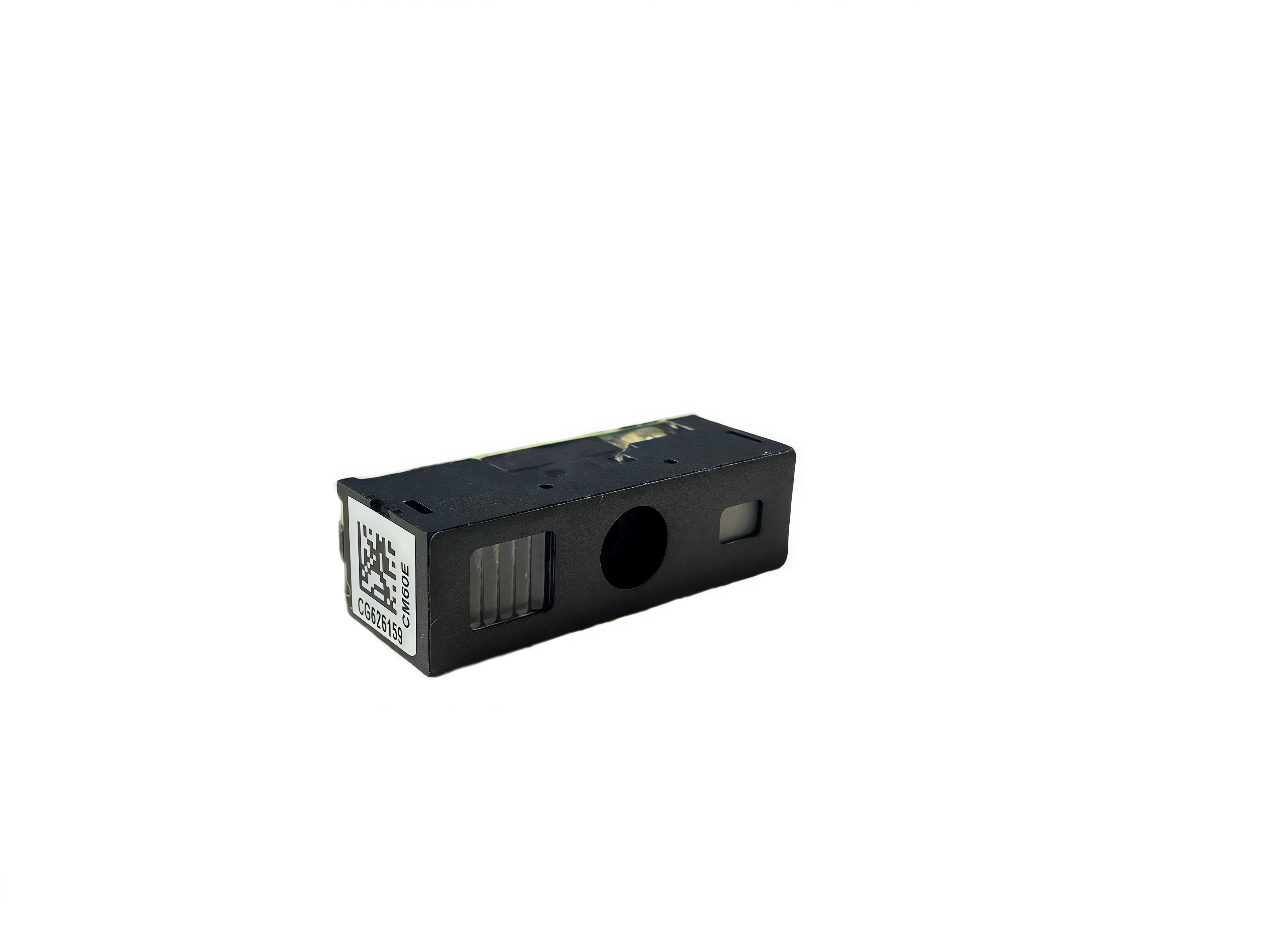

Seamlessly combining the imager sensor and aimer, the scan engine achieves a compact and lightweight form factor, perfectly suited for miniature equipment. Empower next-generation slim designs with exceptional imaging performance.
Soft lighting system without flicker, no glare, no visual fatigue even under continuous high intensity working conditions.

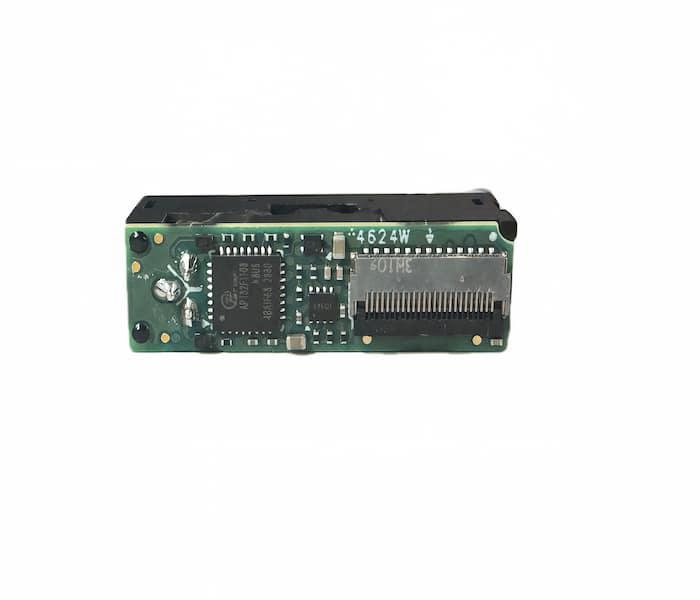

Performance | Image Sensor | 1280 * 800 CMOS | |
| Illumination | 3000K white LED | ||
| Aiming | 650nm red laser | ||
| Symbologies | 2D PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec, Chinese Sensible Code, Maxicode, etc. 1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN-128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, GS1 Composite, etc. |
||
| Resolution | 1D ≥3mil | ||
| Typical Depth of Field | EAN-13 55mm-610mm (13mil) PDF 417 110mm-230mm (6.7mil) Code 39 80mm-300mm (5mil) Data Matrix 90mm-280mm (10mil) QR Code 55mm-400mm (15mil) |
||
| Min Symbol Contrast | 25% | ||
| Scan Angle | Roll: 360°, Pitch: ± 50°, Skew: ± 50° | ||
| Field of View | Horizontal 42°, Vertical 28° | ||
Physical | Interface | IIC, MIPI | |
| Operating Voltage | VIMG:3.3VDC±5% VLED: 3.3VDC±5% | ||
| Current | Operating 292mA (typical) 706mA (max.) Idle 2.5mA |
||
| Dimensions | 23.2(W)×10.1(D)×7.0(H)mm (max.) | ||
| Weight | 1.7g | ||
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Ambient Light | 0~100,000lux (natural light) | ||
Certifications | Certificates & Protection | FCC Part 15 Class B, CE EMC Class B, RoHS | |
Accessories | Cable | Optional 25-PIN FPC cable used to connect the NLS-EVK to a host device. | |
