Technology
Armed with Newland’s six-generation of
technology, the scan engine can swiftly and effortlessly decode even poor quality barcodes (e.g., low contrast, laminated, damaged, torn, warped or wrinkled).
Featuring excellent near-field reading and wide viewing angle H:68°, the scan engine offers stunning performance on decoding 40mm 1D barcodes at a distance of 30mm or 65mm 1D barcodes at 50mm away. It is applied in medical device barcode reading or ticket machine.

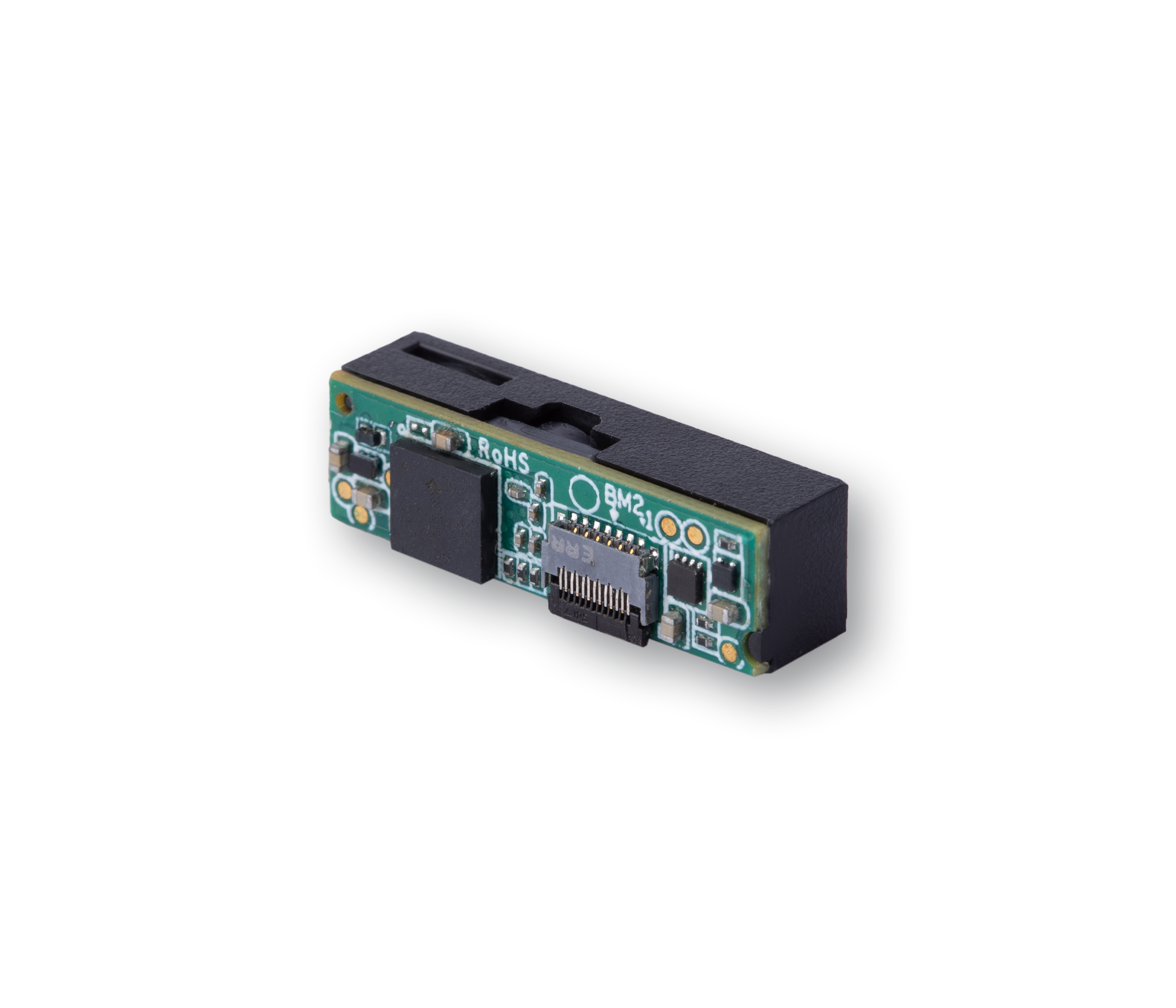

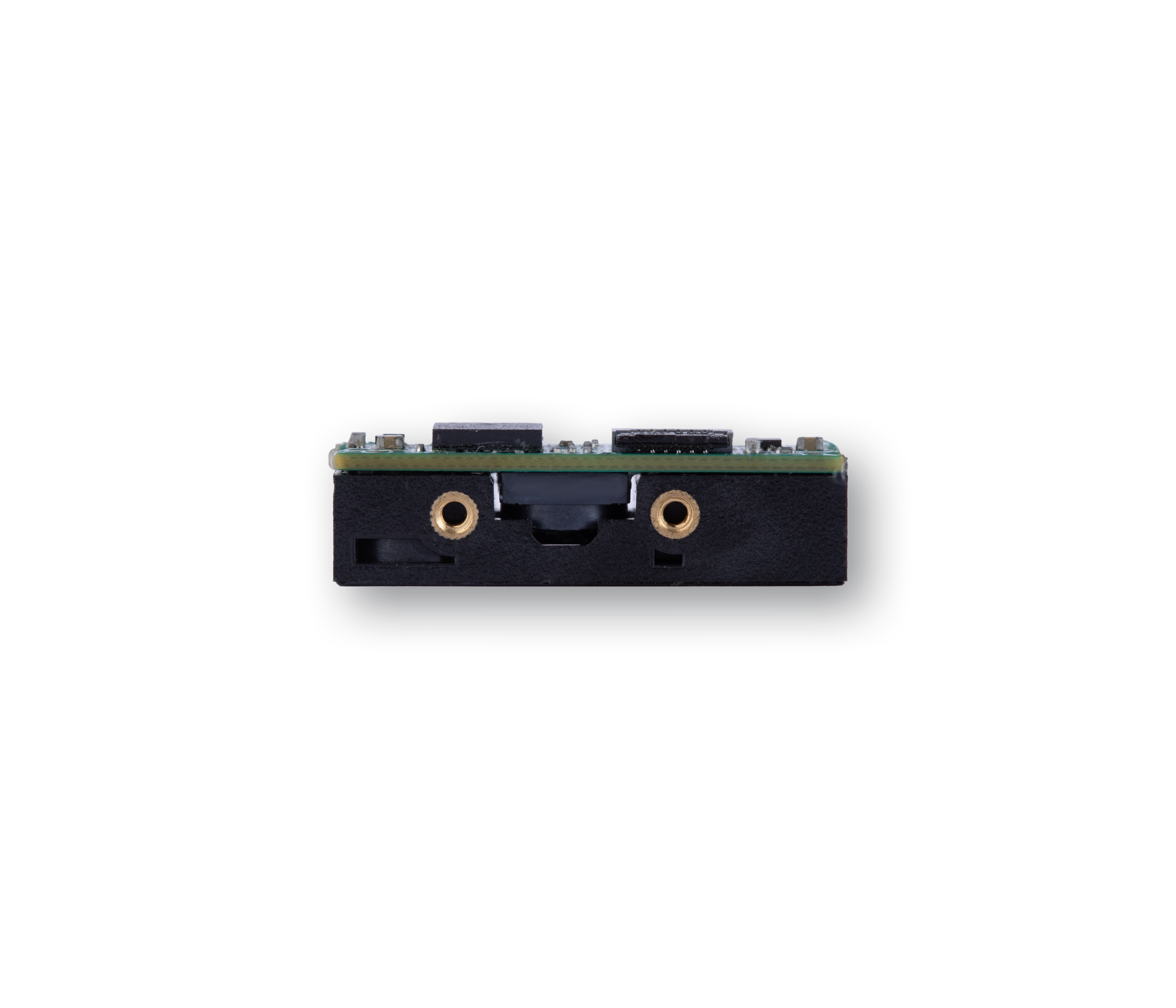

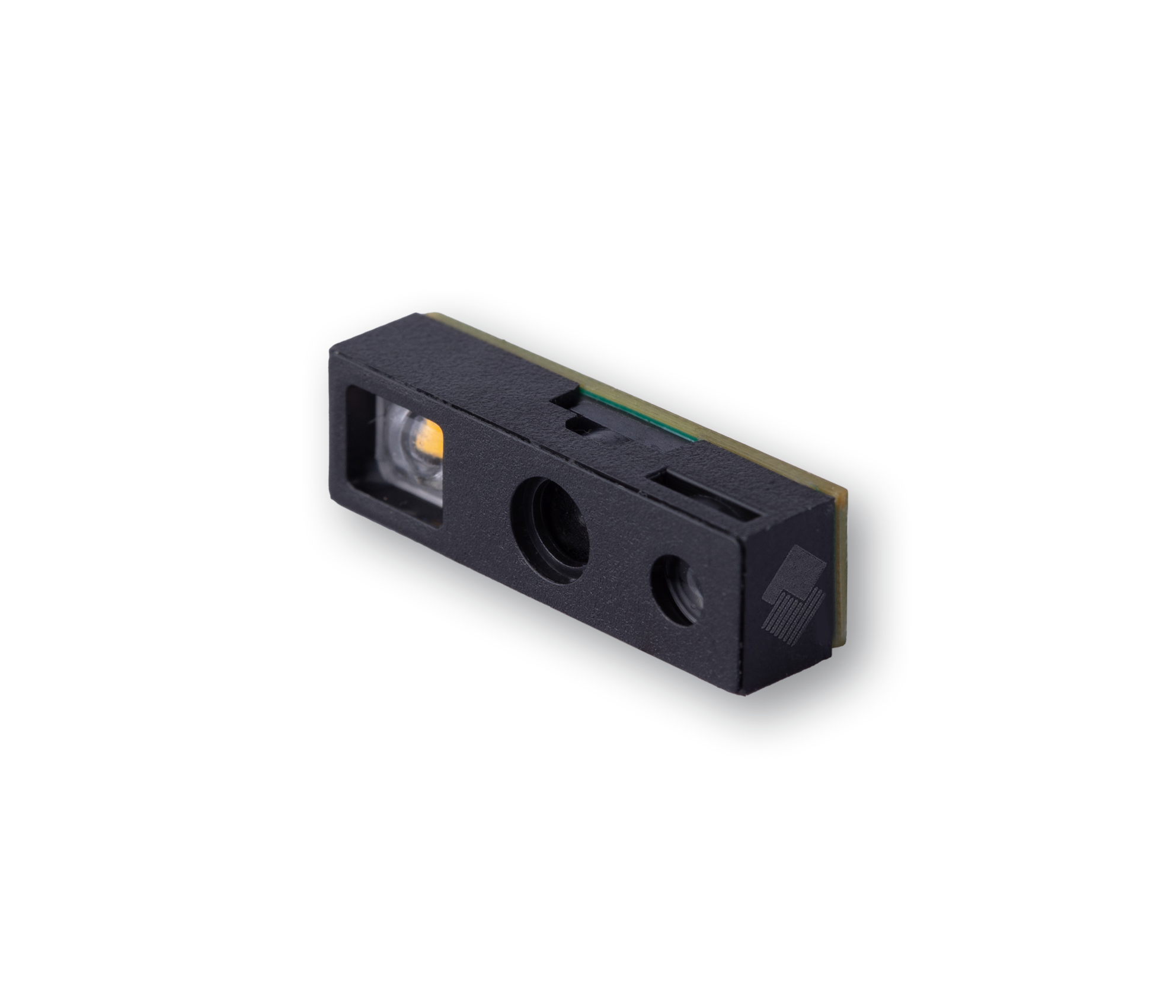

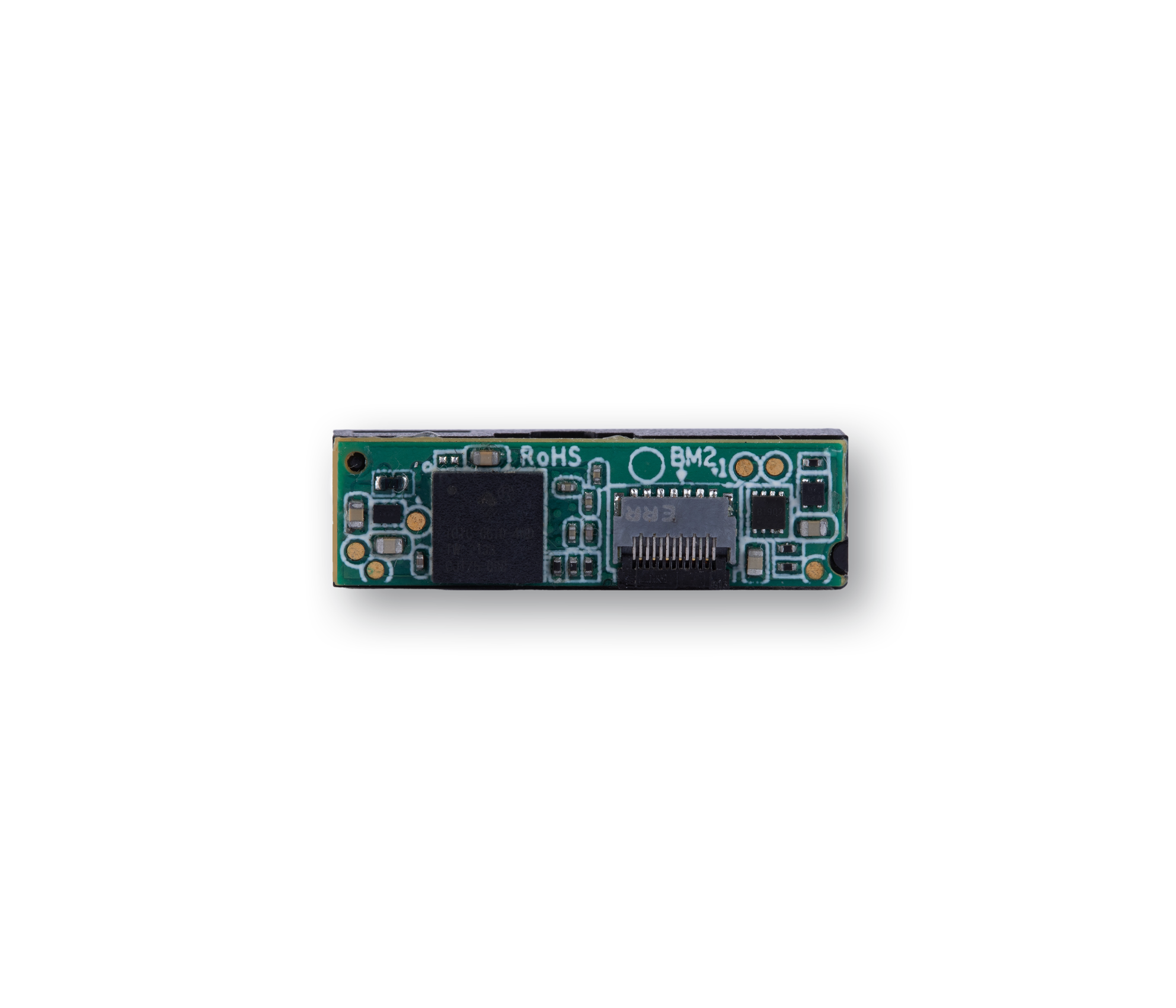

Seamless integration of imager and decoder board makes the scan engine extremely smallest and lightweight and easy to fit into miniature equipment.
The advanced
technology incorporated in the scan engine helps reduce its power consumption and prolong its service life.
Performance | Image Sensor | 640 * 480 CMOS | |
| Illumination | 3000K white LED | ||
| Symbologies | 2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec 1D: Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5, Code 39, Codabar, Code 93, UCC/EAN-128, GS1 Databar, Code 11, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128 |
||
| Resolution | ≥3mil（1D） ≥6.67mil（2D） |
||
| Typical Depth of Field | PDF417:25mm-45mm (6.7mil) Code 39:25mm-50mm (5mil) Data Matrix:25mm-45mm (10mil) QR Code:20mm-60mm (15mil) |
||
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew: ±60° | ||
| Min. Symbol Contrast | 25% | ||
| Field of View | Horizontal 68°, Vertical 51° | ||
| Aiming | 625nm Red LED | ||
Physical | Dimensions (L×W×H) | 23.8(W)×7.5(D)×7.0(H)mm (max.) | |
| Weight | 1.2g | ||
| Interface | TTL-232, USB | ||
| Operating Voltage | 3.3VDC±5% | ||
| Current@3.3VDC | Operating(RMS): 68mA (typical) Idle: 11.8mA Sleep: <0.3mA |
||
Environmental | Operating Temperature | -20°C to 55°C (-4°F to 131°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Ambient Light | 0~100,000lux (natural light) | ||
Certifications | Certificates & Protection | FCC Part 15 Class B, CE EMC Class B, RoHS 2.0, IEC62471 | |
Accessories | NLS-EVK | Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces. | |
| Cable | USB cable used to connect the NLS-EVK to a host device. RS-232 cable used to connect the NLS-EVK to a host device. |
||
| Power Adapter | DC5V power adapter used to power the NLS-EVK with RS-232 cable. | ||
